Circular Box Dry Lining 2 Back Entry White
£5.83 Incl. VAT

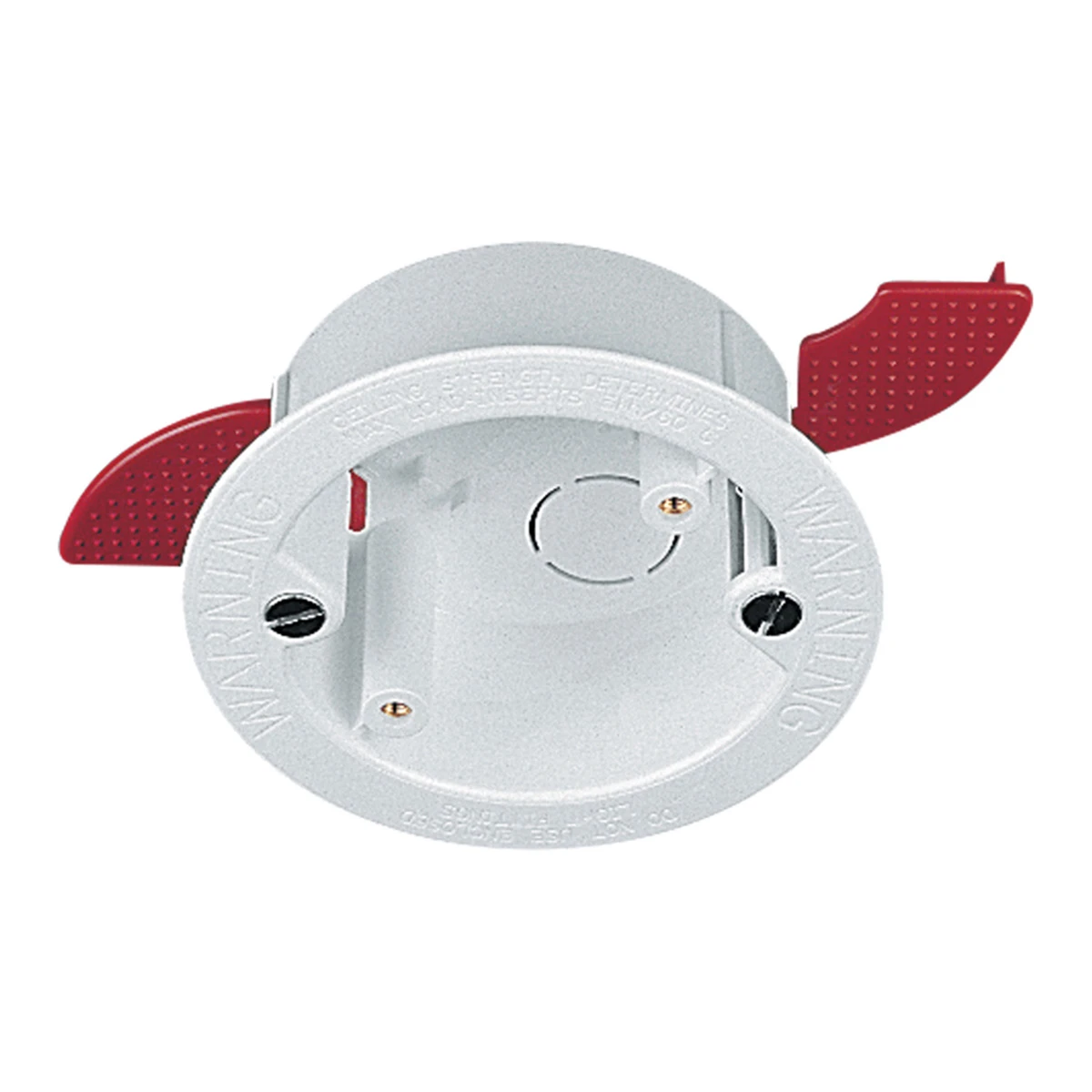

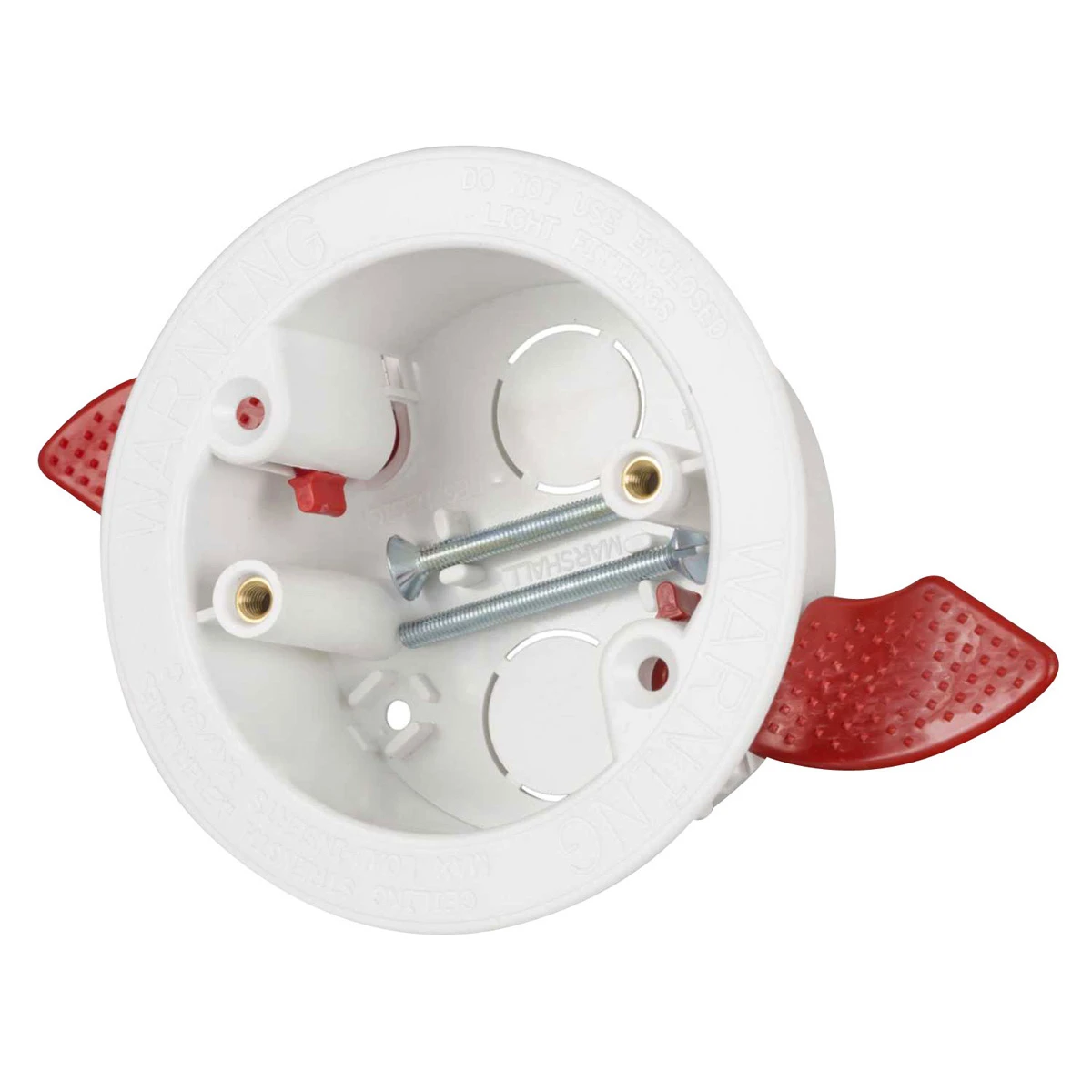

Unique rapid-fix design dry lining box made up of a white polyvinyl chloride (PVC) housing body suitable for protecting cables and provide space for other electrical equipment. Designed for mounting electrics into dry line cavity walls. · · · Swivelling snap out clamps fix the box firmly into position · · Wide securing flange to prevent box passing through cavity · · Wide securing flange to prevent box passing through cavity
25 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Flush mounted box/housing Colour White Width – mm Length – mm Material Plastic Diameter 70 mm Max. conductor cross section – mm² Number of included spouts 2 Number of poles of the clamp – Number of non-adjustable device fixing lugs – Number of adjustable device fixing lugs 2 Number of entry points 1 Internal depth 34 mm With partition No Housing feed-through by seal membrane No Provided with revolving ring No Transparent cover No Suitable for cable outer diameter – – – mm Depth – – – mm For number of electric fittings 1 Suitable for wall/board thickness 9 – 32 mm Clamp position fixed No Airtight No Entry point on rear Yes Pipe locking No Housing feed-through by break-out opening Yes Pipe locking optional No Housing feed-through by step membrane No Housing feed-through by nozzle No With screws Yes With screening No Luminaire hook mounting No Sealable No Couplable No Halogen free No · Technical Data Sheet – Click to Download
