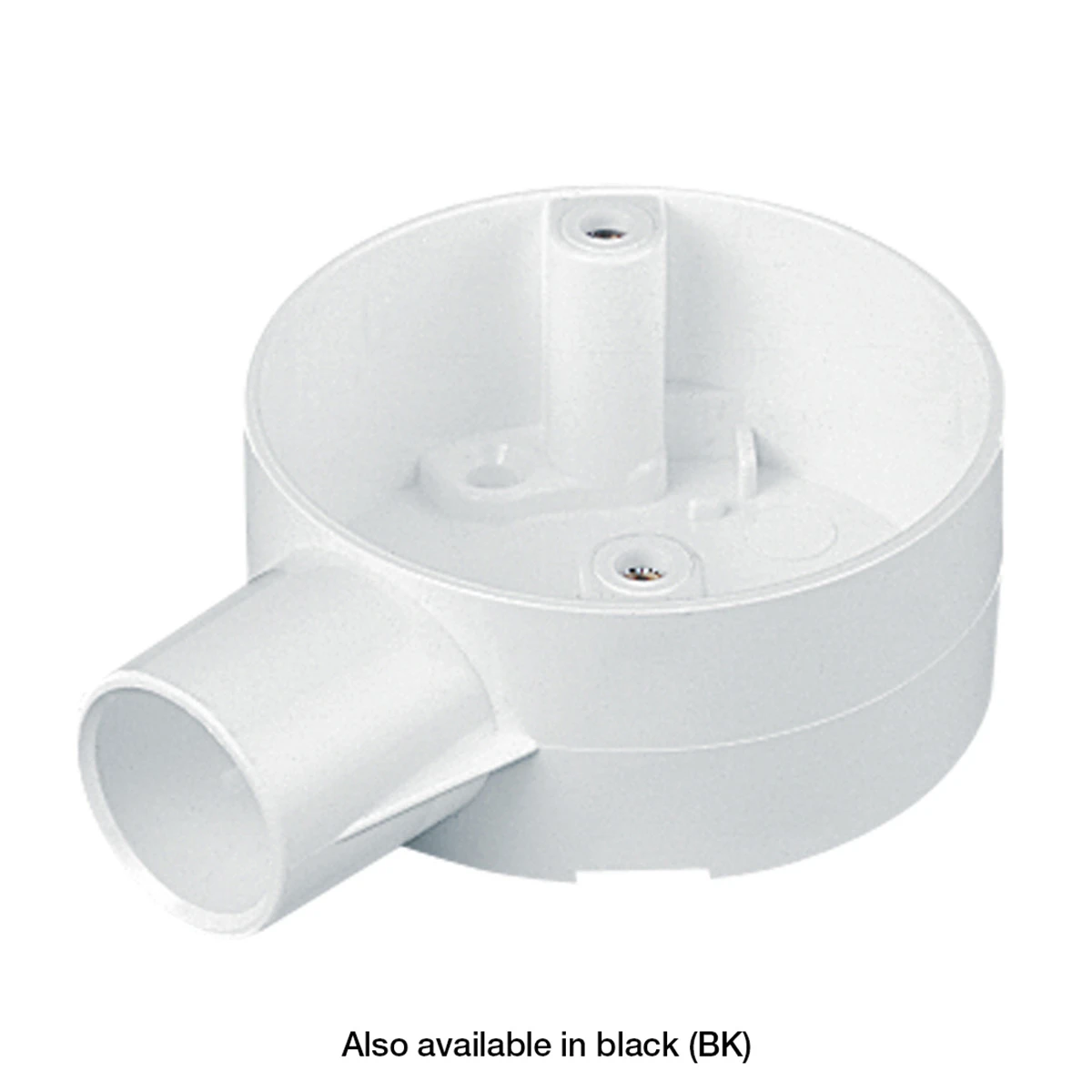

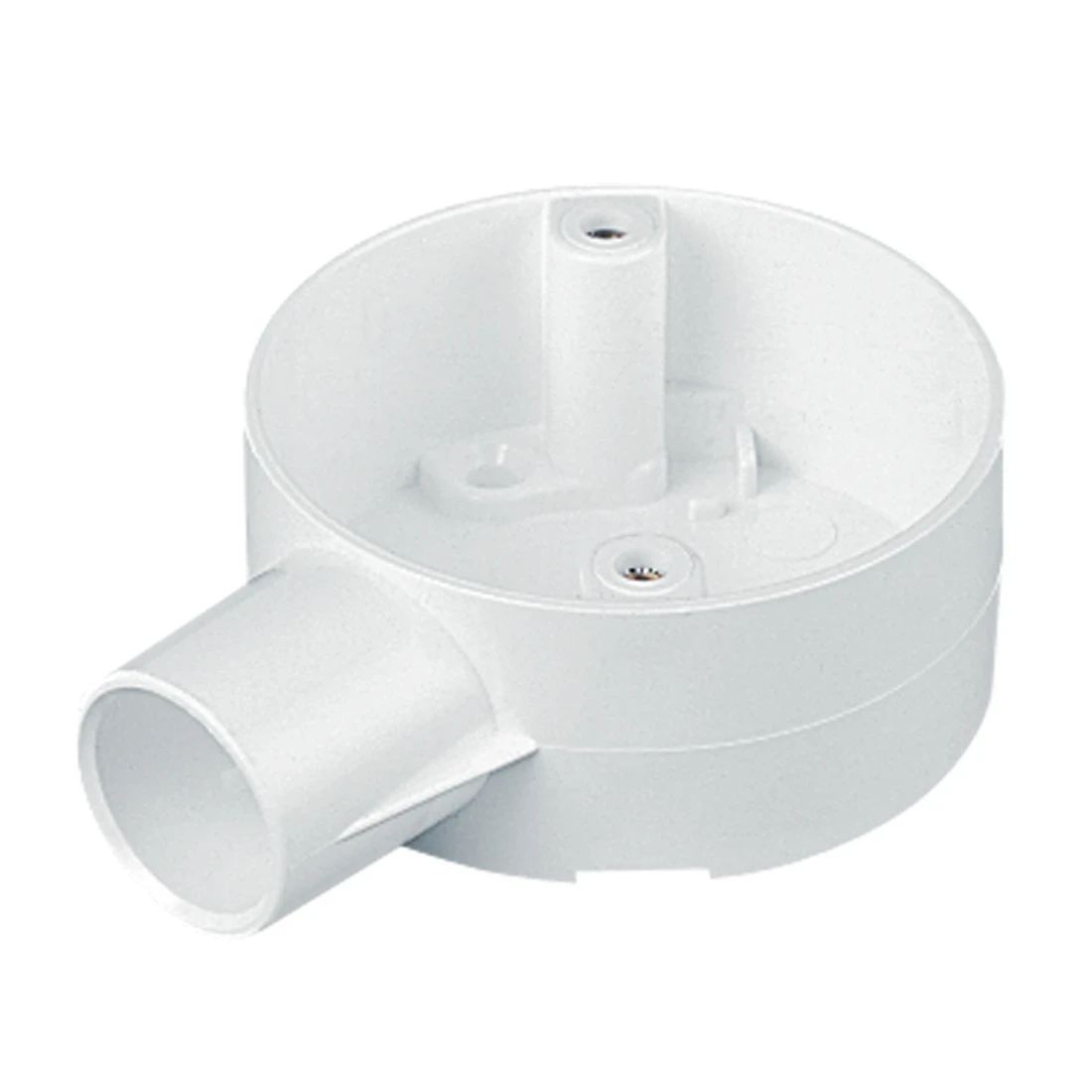

Circular Box Terminal 1Way 20mm White PVC
Circular Box Terminal 1Way 20mm White PVC
Circular Box Terminal 1Way 20mm White PVC - Image 2
Circular Box Terminal 1Way 20mm White PVC - Image 3
Circular Box Terminal 1Way 20mm White PVC - Image 4

Circular Box Terminal 1Way 20mm White PVC

£2.62 Incl. VAT

Circular conduit box made up of a white polyvinyl chloride (PVC) housing body, designed for use as an accessory for electrical conduits. Suitable for use in industrial and commercial environments plus is capable of suspending load of up to 3kg centrally a · · · Durable and impact resistant · · Easy to assemble and install · · Fixing centres are at 50.8mm and fitted with M4 brass inserts · · Provision for MET1 brass earth terminal · · All boxes have threaded brass inserts · · Manufactured using 100% recycled material

295 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2MRB2WH Categories: , , Brand: Part Number: 2500020974

Description

Technical Specifications  Technical Specifications Surface mounted box/housing Colour White Number of entry points 1 Material Plastic Weatherproof No With screening No Tackable No Sealable No Working temperature -5 – 60 °C Depth 29 mm Diameter 65 mm Max. conductor cross section – mm² Entry point on rear Yes Explosion-tested version No Transparent cover No Mounting under water No Mounting in the soil No Casting compound included No Castable No Halogen free No · Technical Data Sheet – Click to Download
