Circular Dry Lining Installation Box with 2 x 20mm Knockouts 35mm
Circular Dry Lining Installation Box with 2 x 20mm Knockouts 35mm
Circular Dry Lining Installation Box with 2 x 20mm Knockouts 35mm - Image 2
Circular Dry Lining Installation Box with 2 x 20mm Knockouts 35mm - Image 3

Circular Dry Lining Installation Box with 2 x 20mm Knockouts 35mm

£12.24 Incl. VAT

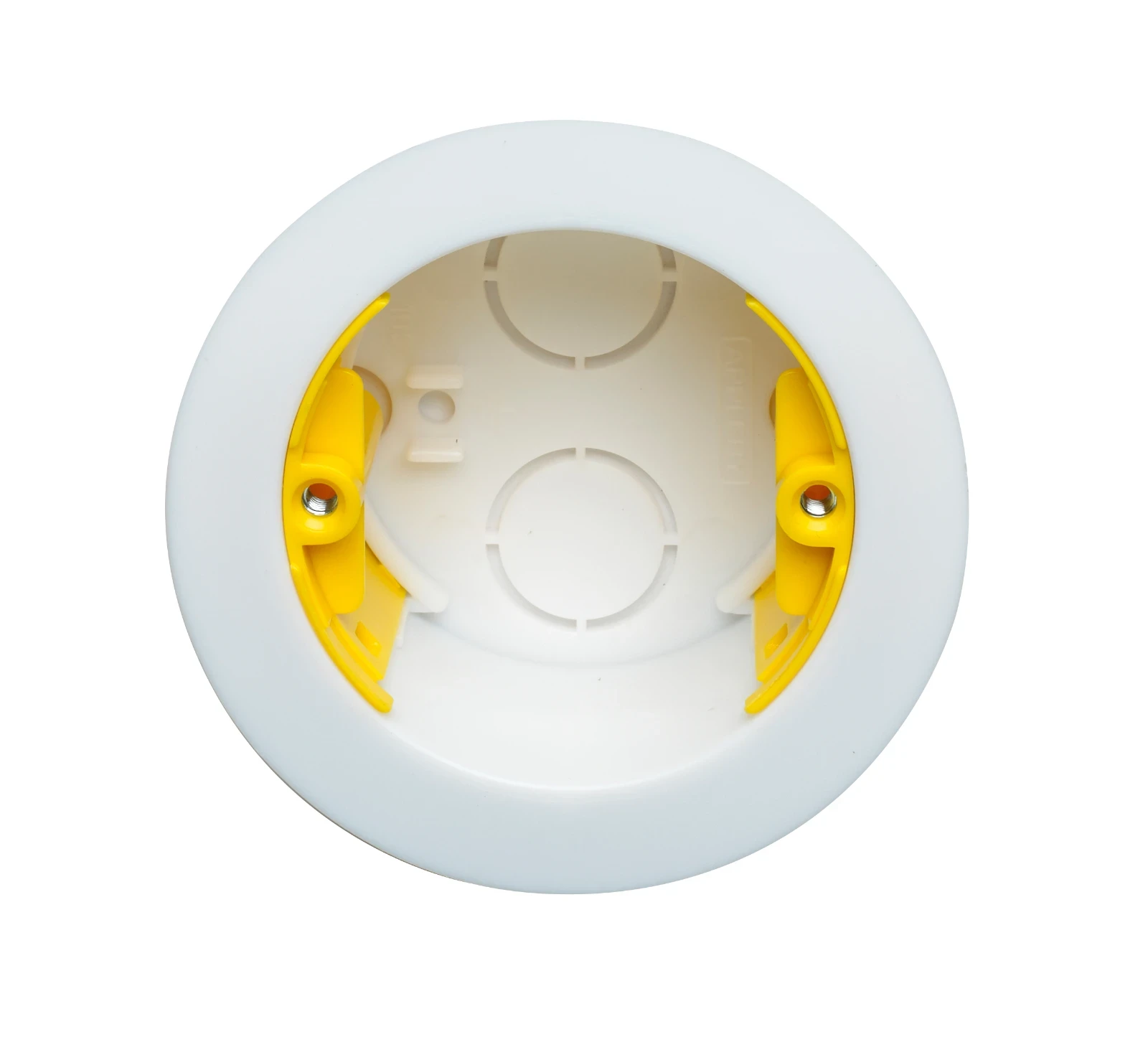

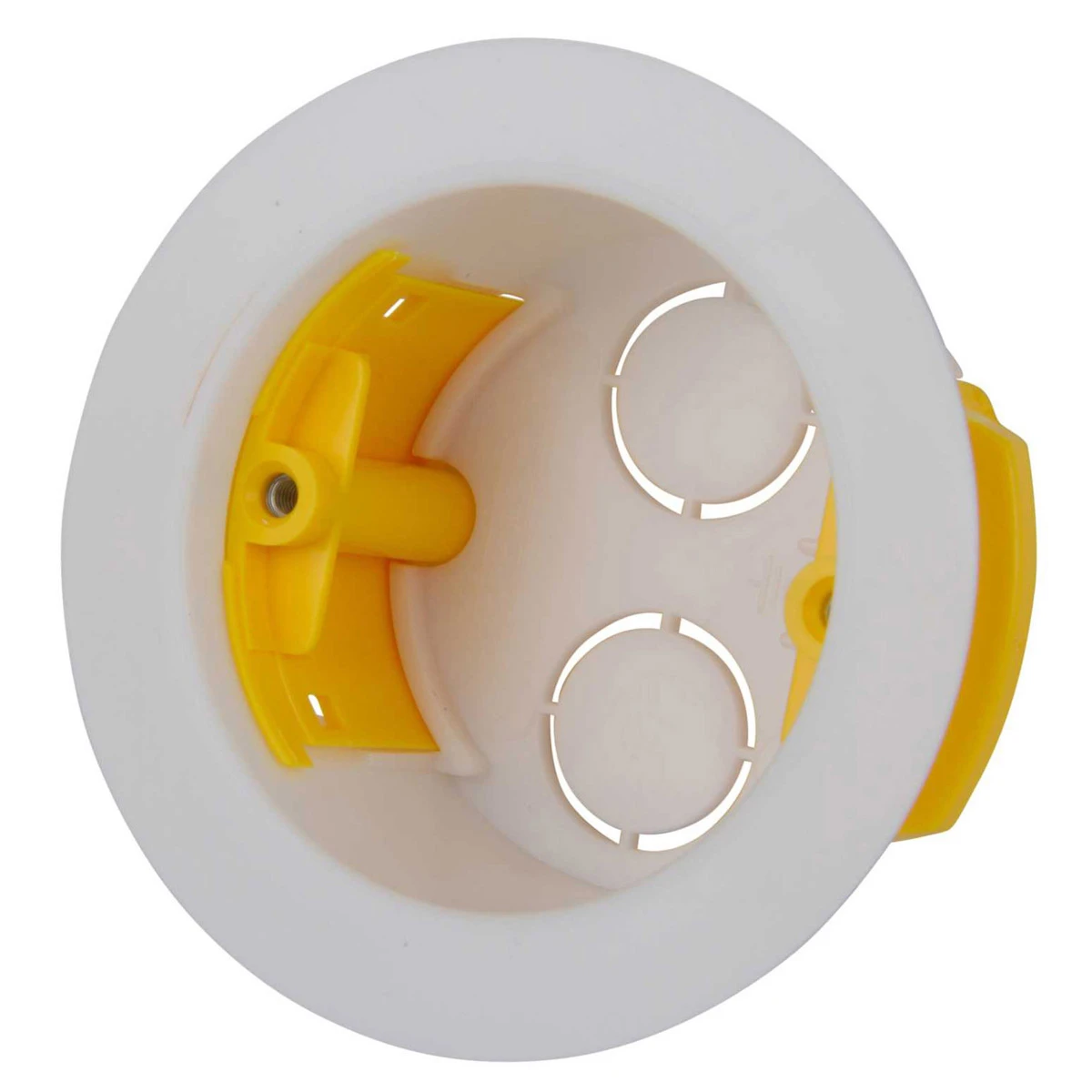

The Appleby SB639 is a circular dry lining back box. It is suitable for flush mounting and is 35mm deep. ยท ยท ยท Made from flame retardant thermoplastic ยท ยท Tough yellow nylon lugs have large bearing faces for superior strength ยท ยท Large flange around the front matches profile of accessory front plates and prevents slipping into the cavity ยท ยท 25mm base knockout plus 2 side cable entry points. ยท ยท Appropriate for fitting board thicknesses from 6.35-15mm ยท ยท Tough yellow nylon lugs have large bearing faces for superior strength ยท ยท 1 x 25mm base knockout ยท ยท Brass earth terminal

Minimum order: 10 units.

270 in stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SB639 Categories: , , Brand: Part Number: 2500262384

Description

Technical Specifications ๎— Technical Specifications Flush mounted box/housing Colour White Material Plastic Number of entry points 2 For number of electric fittings 1 Internal depth 35 mm Number of included spouts 0 Clamp position fixed No With fixing lugs No Pipe locking No Entry point on rear Yes Airtight No With screening No Depth 36 – 36 mm Diameter 80 mm Provided with revolving ring No Housing feed-through by seal membrane No Housing feed-through by nozzle No Housing feed-through by step membrane No Pipe locking optional No Housing feed-through by break-out opening Yes Sealable No Luminaire hook mounting No With screws No Couplable No Transparent cover No Halogen free Yes ยท Technical Data Sheet โ€“ Click to Download
