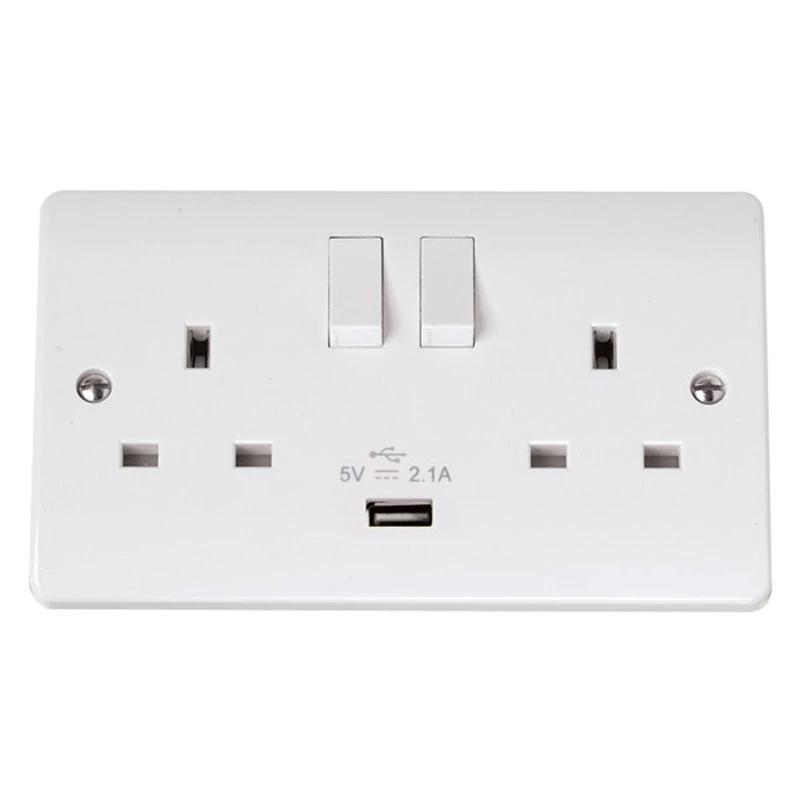

Click CMA770 2 Gang Switched USB Socket Outlet 13A with 1 x 2.1A USB
Click CMA770 2 Gang Switched USB Socket Outlet 13A with 1 x 2.1A USB

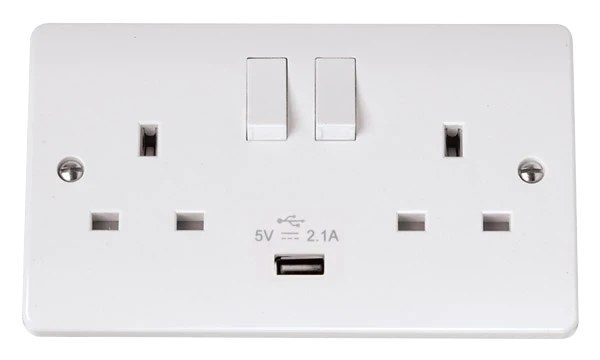

Click CMA770 2 Gang Switched USB Socket Outlet 13A with 1 x 2.1A USB - Image 2

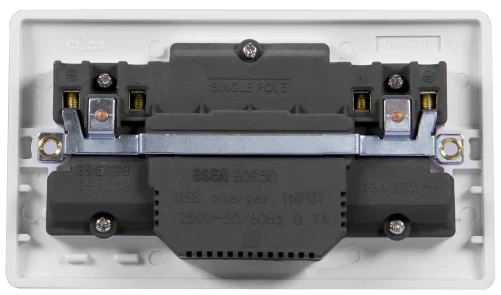

Click CMA770 2 Gang Switched USB Socket Outlet 13A with 1 x 2.1A USB - Image 3
Click CMA770 2 Gang Switched USB Socket Outlet 13A with 1 x 2.1A USB - Image 4

Click CMA770 2 Gang Switched USB Socket Outlet 13A with 1 x 2.1A USB

£19.45 Incl. VAT

Scolmore Curva Series Switched Socket comes with 1xUSB outlet. Curva 13A Socket is tested and approved to BS1363 offering assured quality and safety. The provision of a large earth terminal on socket as standard. Twin Earth terminals for a simple connection of the Earth conductor. Can be mounted into 25mm backbox. USB socket ranges benefit from short circuit protection. · · · Load Rating 13A · · USB Output Connector USB Type · · USB Standby Current 2mA · · USB Charging Outlet 5V DC, 2.1A · · Maximum Voltage 250V · · Plate Fixing Centres 120.6mm · · Back Box Depth 25mm 47mm · · Maximum Voltage 250V · · Plate Fixing Centres 120.6mm

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CMA770 Categories: , , Brand: Part Number: 2500826154

Description

Technical Specifications  Technical Specifications Socket outlet Colour of rocker/switch operator White Minimum depth of back box 25 mm Colour White Depth of device 35.8 mm Number of switchable socket outlets 2 Number of active contacts (rectangular) 3 Nominal voltage 250 V Number of units/gangs 2 Number of phases 1 Height of device 86 mm Number of ports USB-A 1 Fault current protection No Rotated central insert No With indicator lamp No Label space/information surface No Frequency 50 – 50 Hz Nominal current 13 A Width of device 146 mm Over voltage-/surge protection No With on/off switch Yes Halogen free No Lockable No With hinged lid No Eject-mechanism No With enhanced contact protection No Insulated mounting No IFTTT support available No Compatible with Google Assistant No Compatible with Amazon Alexa No Compatible with Apple HomeKit No Transparent No With built-in USB power supply No Antibacterial treatment No With miniature fuse No With orientation lighting No With loop through function No With function lighting No Metallic No For heavy conditions (in accordance with VDE) No · Technical Data Sheet – Click to Download
