CMP Ex Gland Kit-2
Awaiting product image

CMP Ex Gland Kit-2

£45.07 Incl. VAT

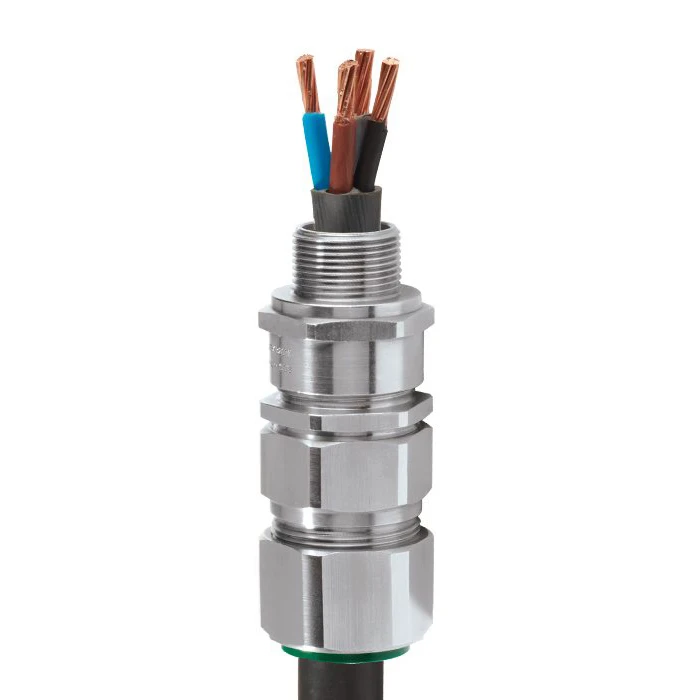

CMP E1FW Explosive Atmosphere Cable Gland Kit is suitable for all types of steel and aluminium wire armoured cables. Features unique OSTG prevents overtightening, superior EMC performance, high quality durable materials, wide sealing range for each cable gland size, fully sequential three step installation procedure and reduces subjectivity of installations. It is permitted in zone 1, internationally marked IECEx and ATEX standards. · · · Designed to prevent Coldflow · · Metal-to-metal armour clamping · · Direct and remote installation · · Displacement type flameproof inner seal · · Controlled outer load retention seal

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: E1FWPK25 Categories: , , , Product Code: 1050017955

Description

Technical Specifications  Technical Specifications Cable gland Model Straight Thread type Metric Material qualifier Brass Material Metal Thread length 15 mm Nominal thread size metric/PG 25 Suitable for cable outer diameter 18.2 – 26.2 mm · Technical Data Sheet – Click to Download
