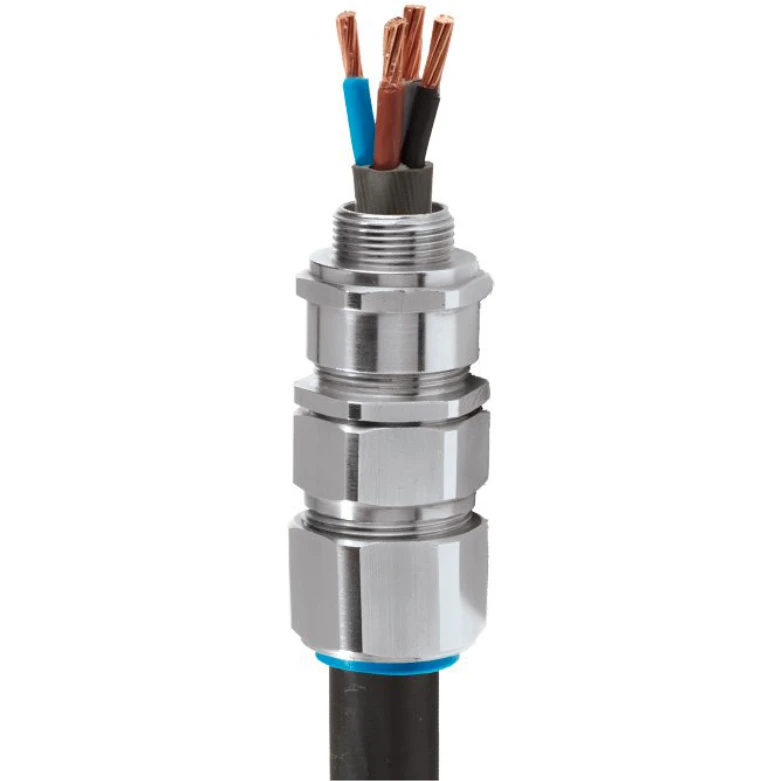

CMP Products 20mm Brass Double Seal Industrial E1W Size 20S16 Cable Gland
CMP Products 20mm Brass Double Seal Industrial E1W Size 20S16 Cable Gland
CMP Products 20mm Brass Double Seal Industrial E1W Size 20S16 Cable Gland - Image 2

CMP Products 20mm Brass Double Seal Industrial E1W Size 20S16 Cable Gland

£19.81 Incl. VAT

E1w double seal industrial cable gland for all types of steel & aluminium wire armoured cables. · · · Metal-to-metal armour clamping · · Direct & remote installation · · Permanently crimped, low impedance earth termination · · Secure against self-loosening · · Displacement type inner seal · · Controlled outer load retention seal · · Unique OSTG prevents overtightening · · Designed to prevent Coldflow · · Deluge protection option · · Operating Temperature -60C to +130C

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 20S16E1W1RA Category: Brand: Product Code: 2501011760

Description

Technical Specifications  Technical Specifications Cable gland Spanner width 24 mm Hexagon angular dimension 26.4 mm Thread length 10 mm Suitable for cable outer diameter 6.1 – 13.1 mm Working temperature -60 – 130 °C Multi cable sealing No Pitch thread 1.5 mm With strain relief No Bend radius protection/trumpet flare No Nominal thread size metric/PG 20 Locknut included No Glass fibre reinforced No Flat cable sealing No Explosion-tested version No Snapping in opening No For armoured cable Yes EMC-version Yes Screened Yes Shock resistant Yes
