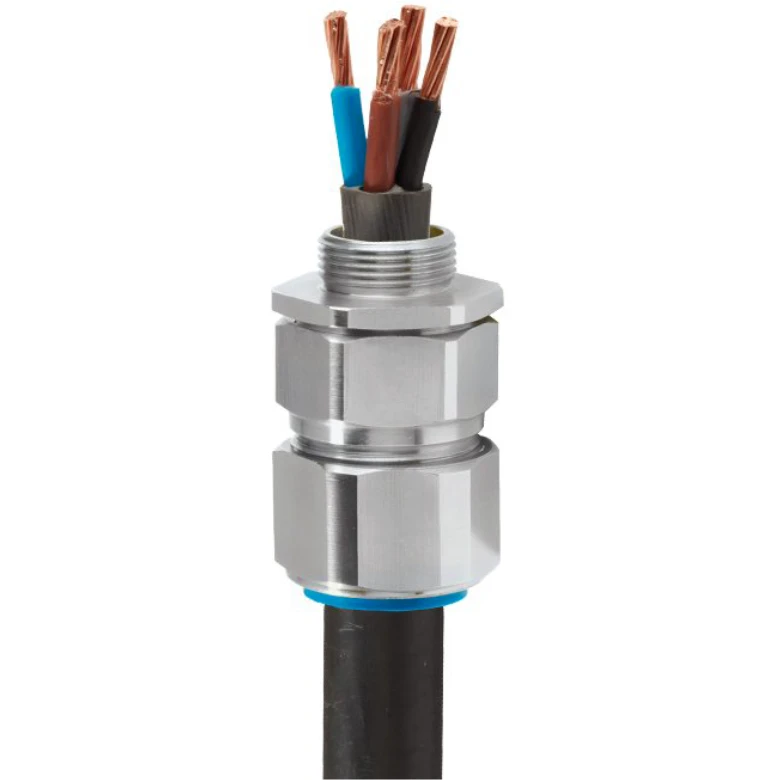

Product image supplied by the manufacturer
Cable & Cable Management

CMP Products 20mm Brass Industrial Single Seal CW Size 20 Complete Termination Kit Cable Gland

Brand: CMP ProductsProduct code: 20CW2RAGo Magpie Ref: 5060062494452

Cw single seal industrial cable gland for all types of steel & aluminium wire armoured cables. · · · High quality durable materials · · Robust, heavy duty design · · Metal-to-metal armour clamping · · Direct & remote installation · · Controlled outer load retention seal · · Unique OSTG prevents overtightening · · Operating Temperature -60C to +130C · · Deluge protection option · · EMC tested

£17.71inc VAT£14.76 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone dust None For ATEX classification, Ex-zone gas None Thread type Metric Model Straight Material Metal Type of sealing Sealing ring Surface protection Untreated Material qualifier Brass Degree of protection (IP rating) IP66 Colour Brass Spanner width 30.5 mm Nominal thread size metric/PG 20 Thread length 10 mm Hexagon angular dimension 33.6 mm Working temperature -60 – 130 °C Suitable for cable outer diameter 12.5 – 20.9 mm Shock resistant Yes With strain relief No Bend radius protection/trumpet flare No Glass fibre reinforced No Screened Yes Explosion-tested version No EMC-version Yes Flat cable sealing No Multi cable sealing No Locknut included Yes For armoured cable Yes Snapping in opening No
