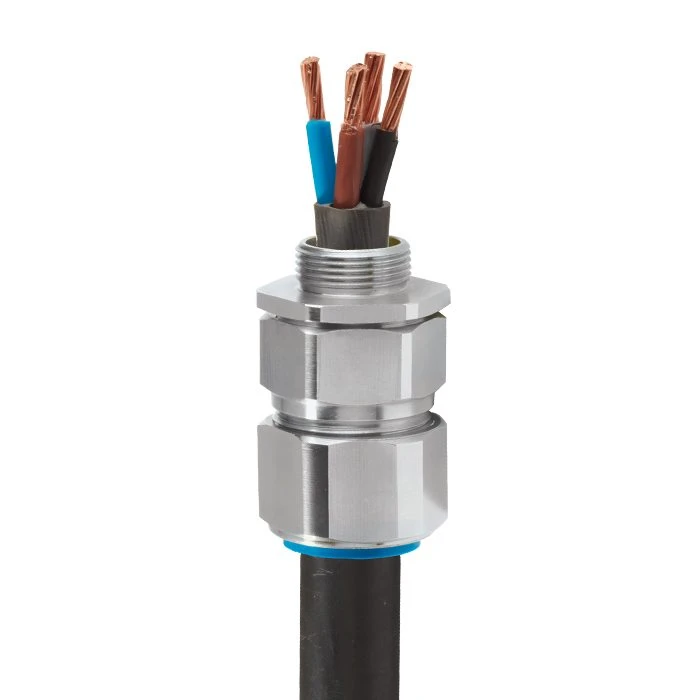

CMP Products 20mm Brass Single Seal Industrial CW Size 20 Cable Gland
CMP Products 20mm Brass Single Seal Industrial CW Size 20 Cable Gland
CMP Products 20mm Brass Single Seal Industrial CW Size 20 Cable Gland - Image 2
CMP Products 20mm Brass Single Seal Industrial CW Size 20 Cable Gland - Image 3

CMP Products 20mm Brass Single Seal Industrial CW Size 20 Cable Gland

£17.75 Incl. VAT

Cw single seal industrial cable gland for all types of steel & aluminium wire armoured cables. · · · High quality durable materials · · Robust, heavy duty design · · Metal-to-metal armour clamping · · Direct & remote installation · · Controlled outer load retention seal · · Unique OSTG prevents overtightening · · Operating Temperature -60C to +130C · · Deluge protection option · · EMC tested

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 20CW1RA Category: Brand: Product Code: 1051091025

Description

Technical Specifications  Technical Specifications Cable gland Nominal thread size metric/PG 20 Spanner width 30.5 mm Pitch thread 1.5 mm Thread length 10 mm Hexagon angular dimension 33.6 mm Suitable for cable outer diameter 12.5 – 20.9 mm Working temperature -60 – 130 °C Flat cable sealing No Multi cable sealing No Locknut included No Bend radius protection/trumpet flare No Explosion-tested version No Glass fibre reinforced No Shock resistant Yes With strain relief No Screened Yes EMC-version Yes Snapping in opening No For armoured cable Yes
