Cable & Cable Management

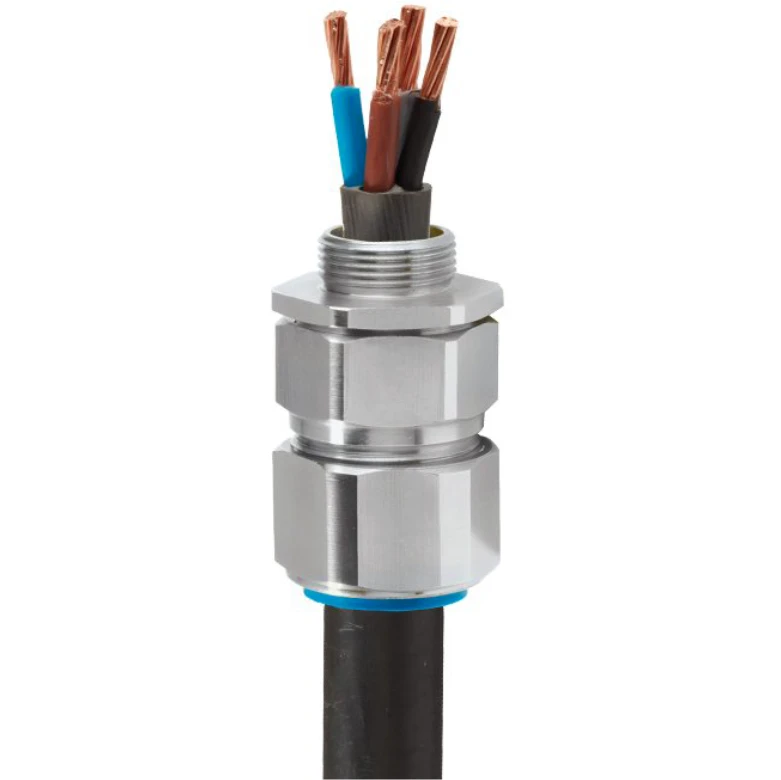

CMP Products 25mm Brass Industrial Single Seal CW Size 25 Complete Termination Kit Cable Gland

Brand: CMP ProductsProduct code: 25CW2RAGo Magpie Ref: 5060062453476

Cw single seal industrial cable gland for all types of steel & aluminium wire armoured cables. · · · High quality durable materials · · Robust, heavy duty design · · Metal-to-metal armour clamping · · Direct & remote installation · · Controlled outer load retention seal · · Unique OSTG prevents overtightening · · Operating Temperature -60C to +130C · · Deluge protection option · · Superior EMC performance

£24.24inc VAT£20.20 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone dust None For ATEX classification, Ex-zone gas None Thread type Metric Model Straight Type of sealing Sealing ring Material Metal Degree of protection (IP rating) IP66 Surface protection Untreated Colour Brass Material qualifier Brass Thread length 10 mm Hexagon angular dimension 41.3 mm Nominal thread size metric/PG 25 Spanner width 37.5 mm Working temperature -60 – 130 °C Suitable for cable outer diameter 18.2 – 26.2 mm Screened Yes Bend radius protection/trumpet flare No EMC-version Yes Shock resistant Yes With strain relief No Flat cable sealing No Multi cable sealing No Locknut included Yes For armoured cable Yes Snapping in opening No Glass fibre reinforced No Explosion-tested version No
