CMP Products 32-38mm Aluminium Heavy Duty One Bolt Cable Cleat
£20.68 Incl. VAT

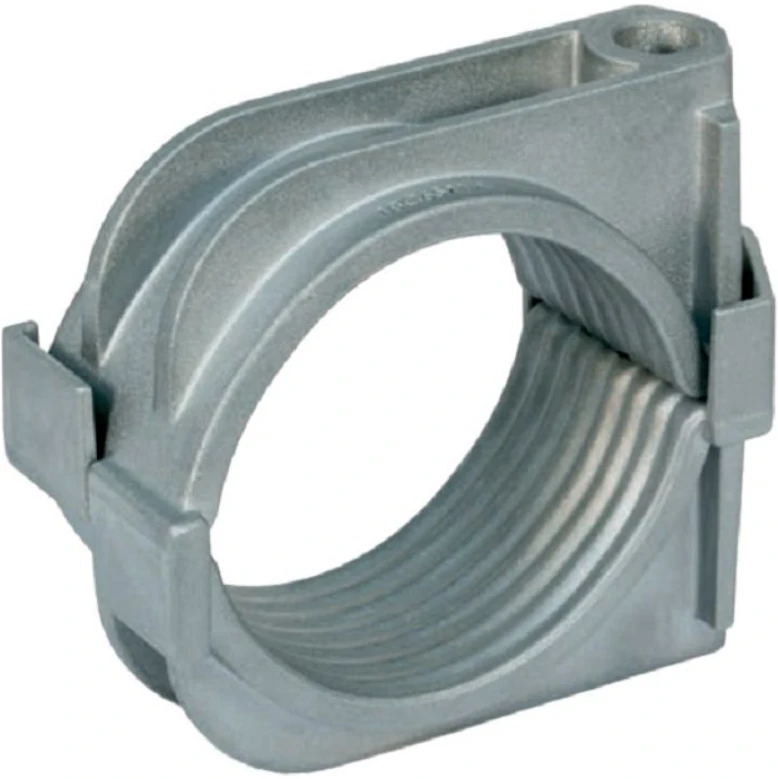

The Valiant One Bolt Aluminium single cable cleat is a metallic cleat which has been designed, constructed, and tested in accordance with the International Standard cable cleats for Electrical Installations (IEC 61914). It ensures the retention and securing of single cables, without damaging or deforming the cable. The cable cleat is manufactured from high pressure die cast aluminium (LM20) making it suitable for both indoor and outdoor applications. Due to its unique twin arc internal patent pending design profile it exhibits excellent retention, limiting both the axial and lateral movement. The Valiant One Bolt cable cleat is available in twelve sizes suitable for cable diameters of 10mm up to 71mm. The cable cleat has an M10 clearance hole for securing it to a mounting surface.
Out of Stock
Description
Technical Specifications Technical Specifications Cable cleat Width 67 mm Height 62 mm Depth 46 mm Max. short circuit current 90 kA Ambient temperature during operating -60 – 150 °C Useful cross section 38 mm² Flame resistant Yes Corrosion resistant Yes Approved according to IEC 61914 Yes With protective insulation No
