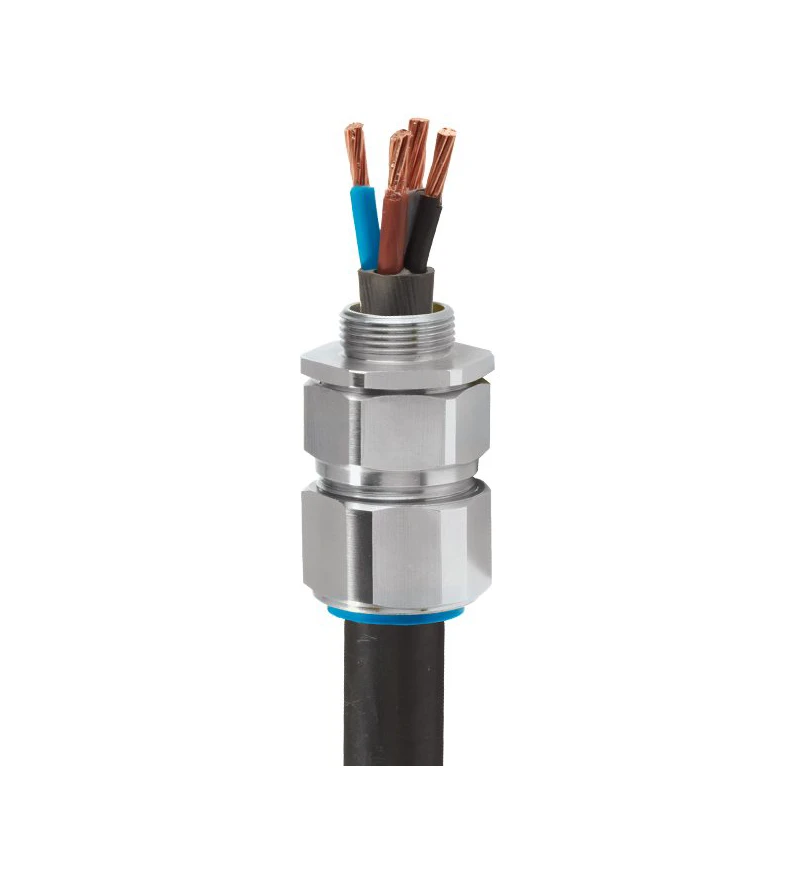

CMP Products 32 Cw Gland Pack
CMP Products 32 Cw Gland Pack
CMP Products 32 Cw Gland Pack - Image 2

CMP Products 32 Cw Gland Pack

£13.28 Incl. VAT

· · Metric M32 · · Cable Gland Material Brass · · Seal Material CMP Thermoset Rubber · · Cable Type Single Wire Armour (SWA) · · Armour Clamping Detachable Armour Cone & AnyWay Universal Clamping Ring · · Sealing Technique Unique CMP LRS Outer Seal (Load Retention Seal) · · Sealing Area(s) Cable Outer Sheath · · Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444 · · Ingress Protection Rating IP66 as standard

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 32CW2RA Category: Brand: Product Code: 2500546131

Description

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone dust None For ATEX classification, Ex-zone gas None Thread type Metric Model Straight Type of sealing Sealing ring Material Metal Degree of protection (IP rating) IP66 Surface protection Untreated Material qualifier Brass Colour Brass Spanner width 46 mm Nominal thread size metric/PG 32 Thread length 10 mm Hexagon angular dimension 50.6 mm Working temperature -60 – 130 °C Suitable for cable outer diameter 23.7 – 33.9 mm Shock resistant Yes Glass fibre reinforced No Explosion-tested version No Bend radius protection/trumpet flare No EMC-version Yes Screened Yes Flat cable sealing No With strain relief No Multi cable sealing No Locknut included Yes For armoured cable Yes Snapping in opening No
