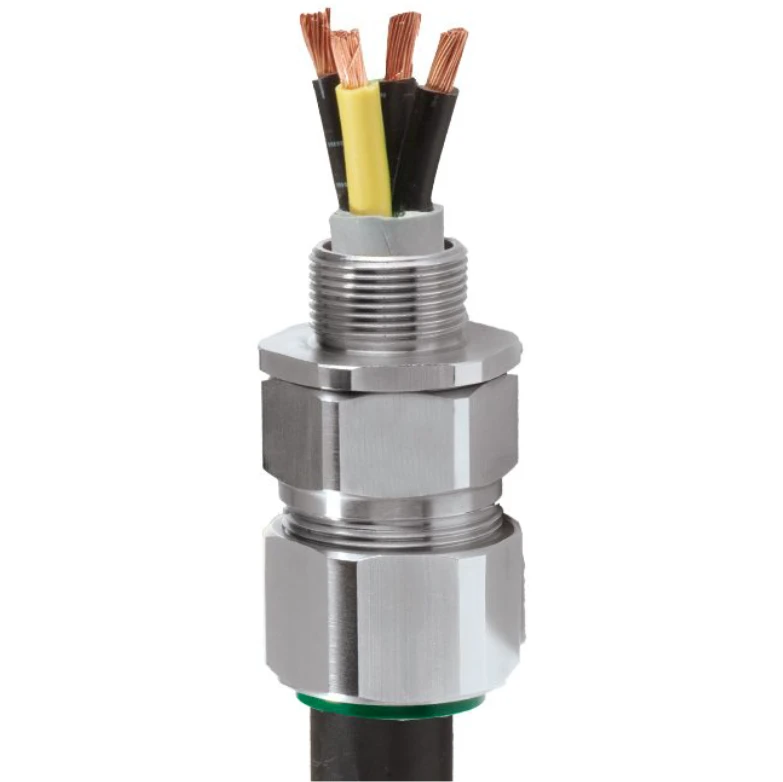

CMP Products Cable Gland Cwe Ex E Explosive Atmosphere 63mm Brass PVC25 Shroud
CMP Products Cable Gland Cwe Ex E Explosive Atmosphere 63mm Brass PVC25 Shroud
CMP Products Cable Gland Cwe Ex E Explosive Atmosphere 63mm Brass PVC25 Shroud - Image 2

CMP Products Cable Gland Cwe Ex E Explosive Atmosphere 63mm Brass PVC25 Shroud

£231.88 Incl. VAT

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 63CWE1RA Category: Brand: Product Code: 2501010760

Description

Technical Specifications  Technical Specifications Cable gland Spanner width 75 mm Nominal thread size metric/PG 63 Pitch thread 1.5 mm Thread length 15 mm Suitable for cable outer diameter 54.6 – 65.8 mm Hexagon angular dimension 82.5 mm Screened Yes Working temperature -60 – 130 °C Bend radius protection/trumpet flare No With strain relief No Locknut included No Glass fibre reinforced No Multi cable sealing No Flat cable sealing No Explosion-tested version Yes EMC-version Yes Snapping in opening No For armoured cable Yes Shock resistant Yes
