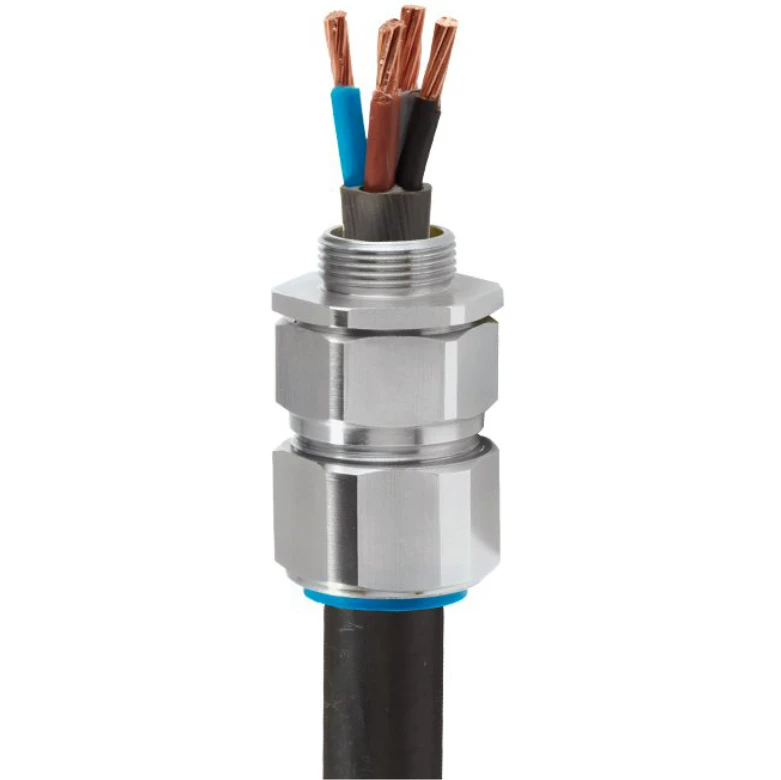

CMP Products Cable Gland Industrial Single Seal Cw Size 63 63mm Brass Complete Termination Kit

Description

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone gas None For ATEX classification, Ex-zone dust None Thread type Metric Model Straight Type of sealing Sealing ring Surface protection Untreated Material Metal Material qualifier Brass Degree of protection (IP rating) IP66 Colour Brass Nominal thread size metric/PG 63 Thread length 15 mm Hexagon angular dimension 88 mm Spanner width 80 mm Working temperature -60 – 130 °C Suitable for cable outer diameter 54.6 – 65.8 mm Shock resistant Yes With strain relief No Flat cable sealing No Multi cable sealing No Locknut included Yes For armoured cable Yes Snapping in opening No Glass fibre reinforced No Explosion-tested version No Screened Yes Bend radius protection/trumpet flare No EMC-version Yes
