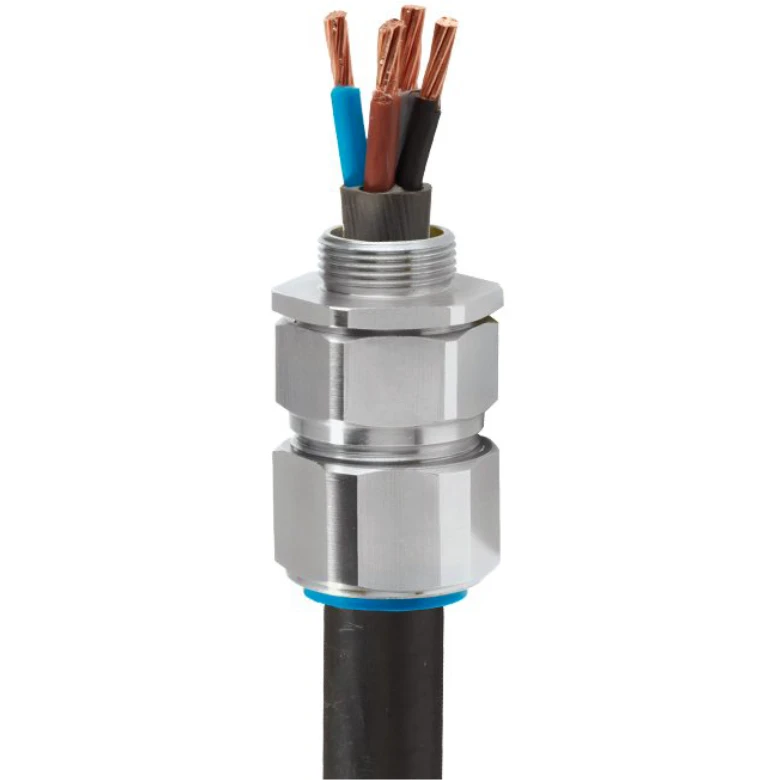

CMP Products Cable Gland Industrial Single Seal Cw Size 75S 75mm Brass Complete Termination Kit
CMP Products Cable Gland Industrial Single Seal Cw Size 75S 75mm Brass Complete Termination Kit
CMP Products Cable Gland Industrial Single Seal Cw Size 75S 75mm Brass Complete Termination Kit - Image 2

CMP Products Cable Gland Industrial Single Seal Cw Size 75S 75mm Brass Complete Termination Kit

£258.71 Incl. VAT

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 75SCW2RA Category: Brand: Product Code: 2501144215

Description

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone gas None For ATEX classification, Ex-zone dust None Thread type Metric Model Straight Type of sealing Sealing ring Material Metal Degree of protection (IP rating) IP66 Colour Brass Surface protection Untreated Hexagon angular dimension 99 mm Material qualifier Brass Thread length 15 mm Spanner width 90 mm Nominal thread size metric/PG 75 Working temperature -60 – 130 °C Suitable for cable outer diameter 59 – 72 mm Shock resistant Yes With strain relief No Explosion-tested version No Glass fibre reinforced No Bend radius protection/trumpet flare No EMC-version Yes Screened Yes Flat cable sealing No Multi cable sealing No Locknut included Yes For armoured cable Yes Snapping in opening No
