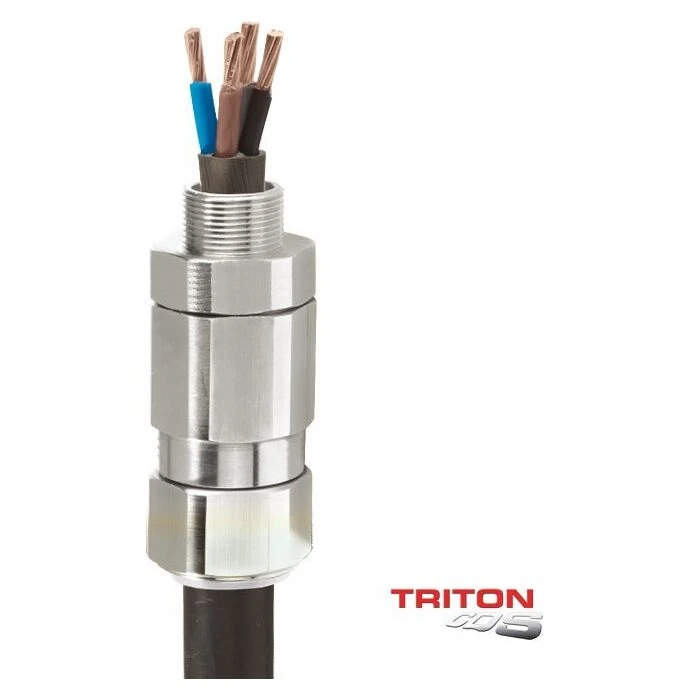

CMP Products Cable Gland T3Cds Explosive Atmosphere 20mm Brass PVC06 Shroud
CMP Products Cable Gland T3Cds Explosive Atmosphere 20mm Brass PVC06 Shroud
CMP Products Cable Gland T3Cds Explosive Atmosphere 20mm Brass PVC06 Shroud - Image 2
CMP Products Cable Gland T3Cds Explosive Atmosphere 20mm Brass PVC06 Shroud - Image 3

CMP Products Cable Gland T3Cds Explosive Atmosphere 20mm Brass PVC06 Shroud

£23.53 Incl. VAT

(T3CDS) | Ex eb, Ex db, Ex nR & Ex ta | Explosive Atmosphere Cable Gland · · · Fully sequential · · Three step installation procedure · · Reduces installation times cost & risk · · Direct & remote installation · · Unique compensating displacement seal system (CDS) – Metal-to-metal installation every time regardless of cable diameter · · Designed to prevent Coldflow see CMP Technical Document TS002 (available upon request) · · Integral protected deluge seal · · Controlled outer ‘load retention’ seal

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 20T3CDS1RA Brand: Product Code: 1051019677

Description

Technical Specifications  Technical Specifications Cable gland Pitch thread 1.5 mm Thread length 15 mm Spanner width 30.5 mm Nominal thread size metric/PG 20 Hexagon angular dimension 33.6 mm Working temperature -60 – 130 °C Suitable for cable outer diameter 12.5 – 20.9 mm Glass fibre reinforced No Shock resistant Yes EMC-version Yes Snapping in opening No For armoured cable Yes Multi cable sealing No Flat cable sealing No Explosion-tested version Yes Bend radius protection/trumpet flare No Locknut included No With strain relief No Screened Yes
