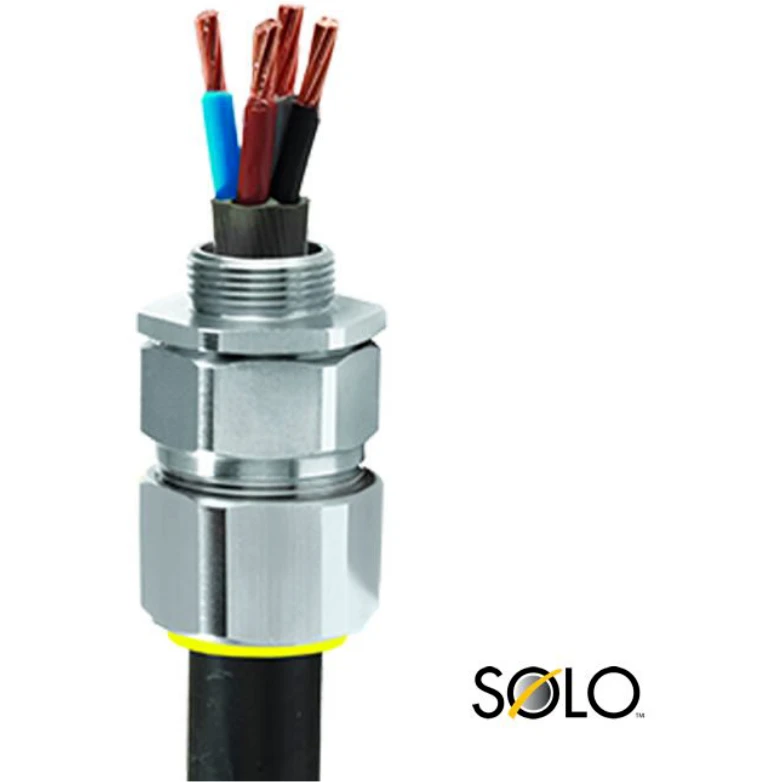

CMP Products Solo 20mm Brass Industrial Single Seal CW Size 20 Complete Termination Kit in LSF.

Brand: CMP ProductsProduct code: 20CWLSF2RAGo Magpie Ref: 5060062494486

Cw industrial single seal cable gland solo lsf kit for all types of steel & aluminium wire armoured cables. · · · Metal-to-metal armour clamping · · Direct & remote installation · · Controlled outer load retention seal · · Unique OSTG prevents overtightening · · Operating Temperature -60C to +130C · · Deluge protection option · · EMC tested · · LUL (London Underground) approved

£20.82inc VAT£17.35 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone dust None Thread type Metric Model Straight Type of sealing Sealing ring Material Metal For ATEX classification, Ex-zone gas None Degree of protection (IP rating) IP66 Surface protection Untreated Colour Brass Nominal thread size metric/PG 20 Material qualifier Brass Thread length 10 mm Suitable for cable outer diameter 12.5 – 20.9 mm Hexagon angular dimension 33.6 mm Spanner width 30.5 mm With strain relief No Explosion-tested version No Working temperature -60 – 130 °C Screened Yes Bend radius protection/trumpet flare No Shock resistant Yes EMC-version Yes Glass fibre reinforced No Flat cable sealing No Multi cable sealing No Locknut included Yes For armoured cable Yes Snapping in opening No
