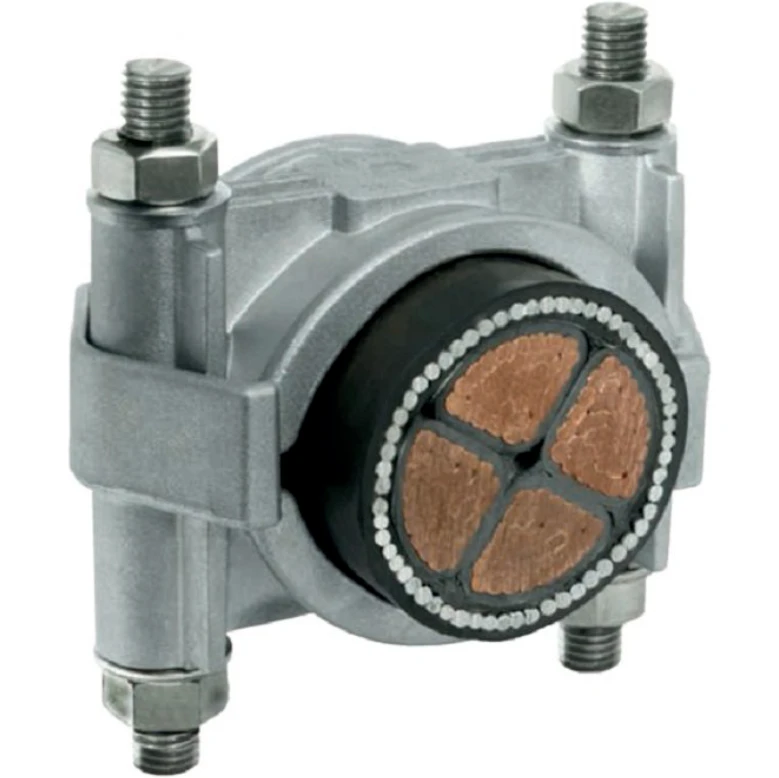

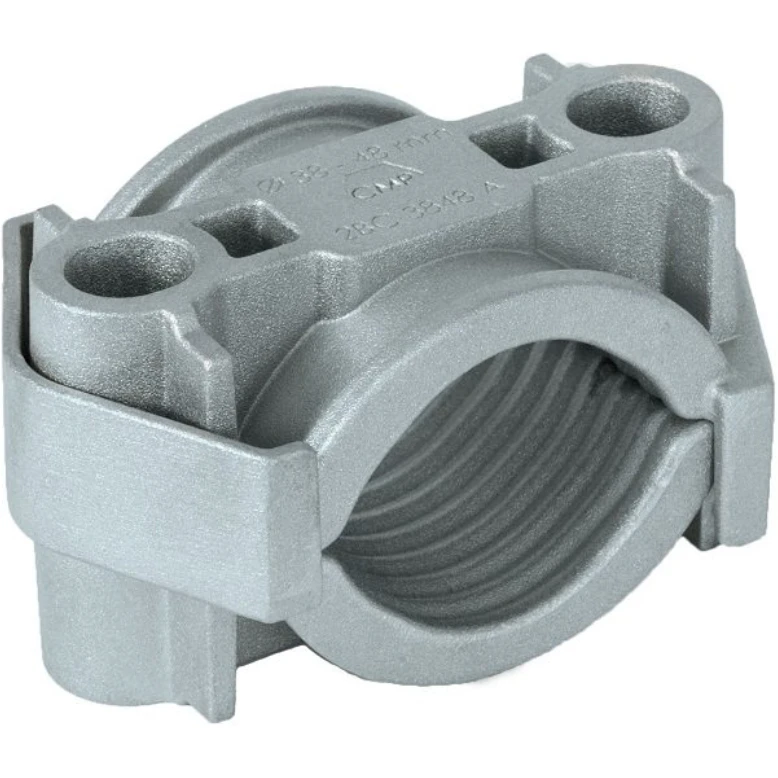

CMP Products Zenith 38-48mm Aluminium Two Bolt Single HD Cable Cleat

The zenith two bolt single cable cleat is a metallic cable cleat which has been designed, constructed, and tested in accordance with the international standard cable cleats for electrical installations (iec 61914). it ensures the retention and securing of single cables, without damaging or deforming the cable. the cable cleat is manufactured from high pressure die cast aluminium (lm20) making it suitable for both indoor and outdoor applications. due to its unique twin arc internal patent pending design profile it exhibits excellent retention, limiting both the axial and lateral movement. the zenith two bolt cable cleats have an excellent range take and are suitable for cable diameters of 38mm up to 151mm in only nine sizes. this cable cleat has two m12 clearance holes for securing it to a mounting surface, which allows for either m10 or m12 fasteners to be used. · · · Third party certification to IEC 61914 · · Available in high pressure die cast aluminium · · Sunlight (UV) & weather resistant · · Operating temperature -60C to 150C · · Can be double stacked · · 38 – 151mm in 9 sizes · · Excellent axial & lateral load retention · · Two bolt fixing design
