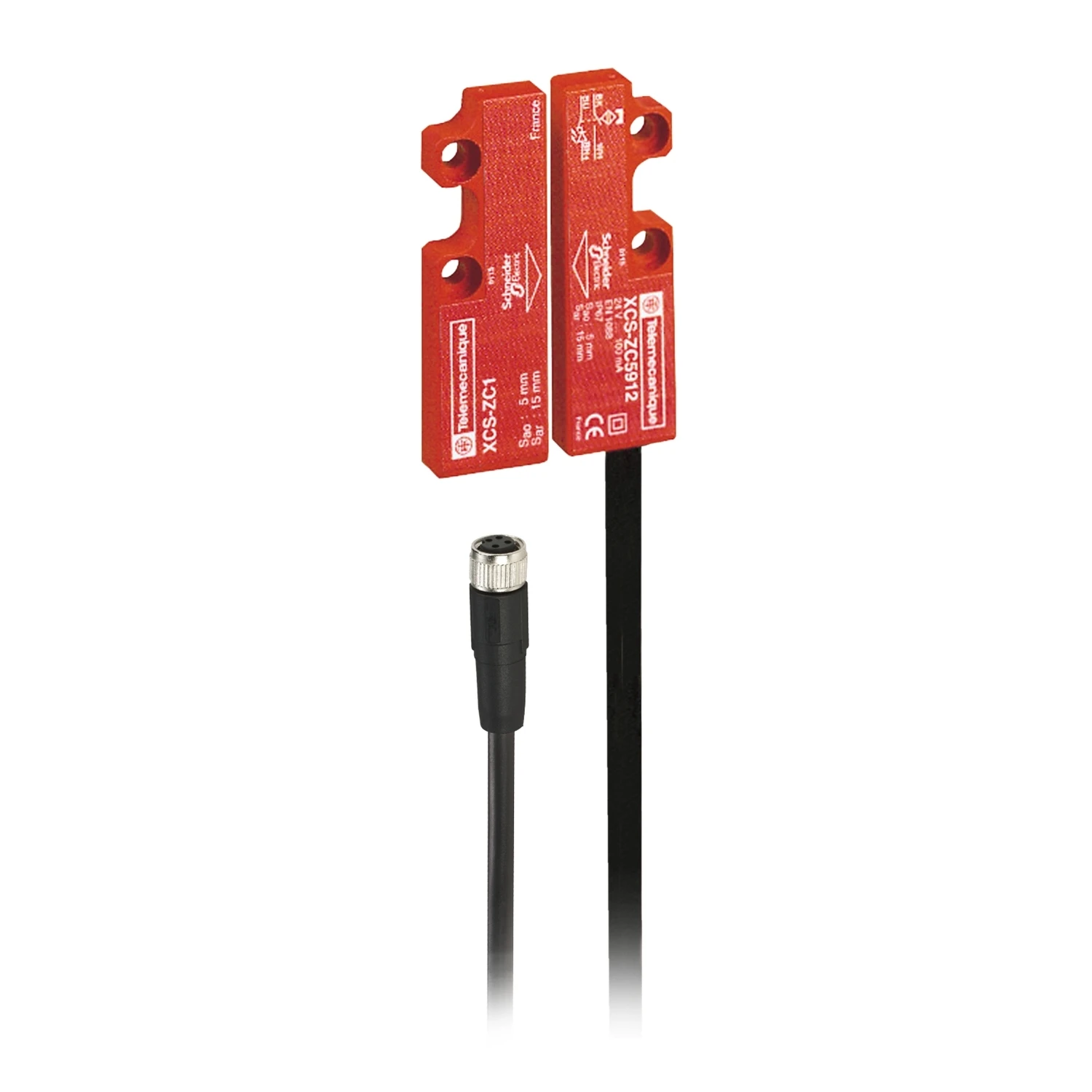

Coded Magnetic Switch XCSDMC, 2 NC, staggered, M8 0,15m
Coded Magnetic Switch XCSDMC, 2 NC, staggered, M8 0,15m
Coded Magnetic Switch XCSDMC, 2 NC, staggered, M8 0,15m - Image 2
Coded Magnetic Switch XCSDMC, 2 NC, staggered, M8 0,15m - Image 3
Coded Magnetic Switch XCSDMC, 2 NC, staggered, M8 0,15m - Image 4

Coded Magnetic Switch XCSDMC, 2 NC, staggered, M8 0,15m

£112.46 Incl. VAT

This XCSDMC Coded Magnetic Safety Switch is designed for use as a safety interlock switch for guard door or protective casings monitoring and position detection on machines with low inertia. It has 2 normally closed staggered contacts in presence of magnet. It has a compact rectangular design with a 15 centimeter PVC cable connection, allowing for flexible installation. Its B10D reliability data is 50 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508. · · · This XCSDMC Coded Magnetic Safety Switch is designed for use as a safety interlock switch for guard door or protective casings monitoring and position detection on machines with low inertia. · · -30°C to +60°C Temperature Range · · It has 2 normally closed staggered contacts in presence of magnet. · · Silicon Free · · It has a compact rectangular design with a 15 centimeter PVC cable connection, allowing for flexible installation. · · Approved UL 969 CSA C22.2 No.0.15

1 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XCSDMC790L01M8 Categories: , , Brand: Part Number: 2500210745

Description

Technical Specifications  Technical Specifications Magnetic proximity switch Explosion safety category for gas None Housing material Plastic Performance level acc. to EN ISO 13849-1 Level e Construction type housing Cuboid Type of switching output Relay contact Mechanical mounting condition for sensor Not flat Type of electric connection Connector M8 Type of actuation Magnet Degree of protection (IP rating) IP67K Voltage type AC/DC SIL according to IEC 61508 3 Protected switch distance ON 5 mm Length of sensor 7 mm Number of protected semiconductor outputs 0 Number of protected contact energized outputs 0 Diameter sensor – mm Protected switch distance OFF 15 mm Min. output current 100 mA Switching distance 15 mm Max. output current at protected output 100 mA Height of sensor 51 mm Width sensor 16 mm Number of contact energized outputs with signalling function 0 Number of semiconductor outputs with signalling function 0 Ambient temperature -25 – 85 °C Rated supply voltage at AC 50 Hz – V Rated supply voltage at AC 60 Hz – V Rated supply voltage at DC 24 – 24 V Cross-/short circuit identification possible Yes With monitoring function downstream switching devices No With status indication No Suitable for safety functions Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2189651
