Coded Magnetic Switch XCSDMP 1 NC + 2 NO 1 NO Staggeredm12 0.15M
Coded Magnetic Switch XCSDMP 1 NC + 2 NO 1 NO Staggeredm12 0.15M
Coded Magnetic Switch XCSDMP 1 NC + 2 NO 1 NO Staggeredm12 0.15M - Image 2

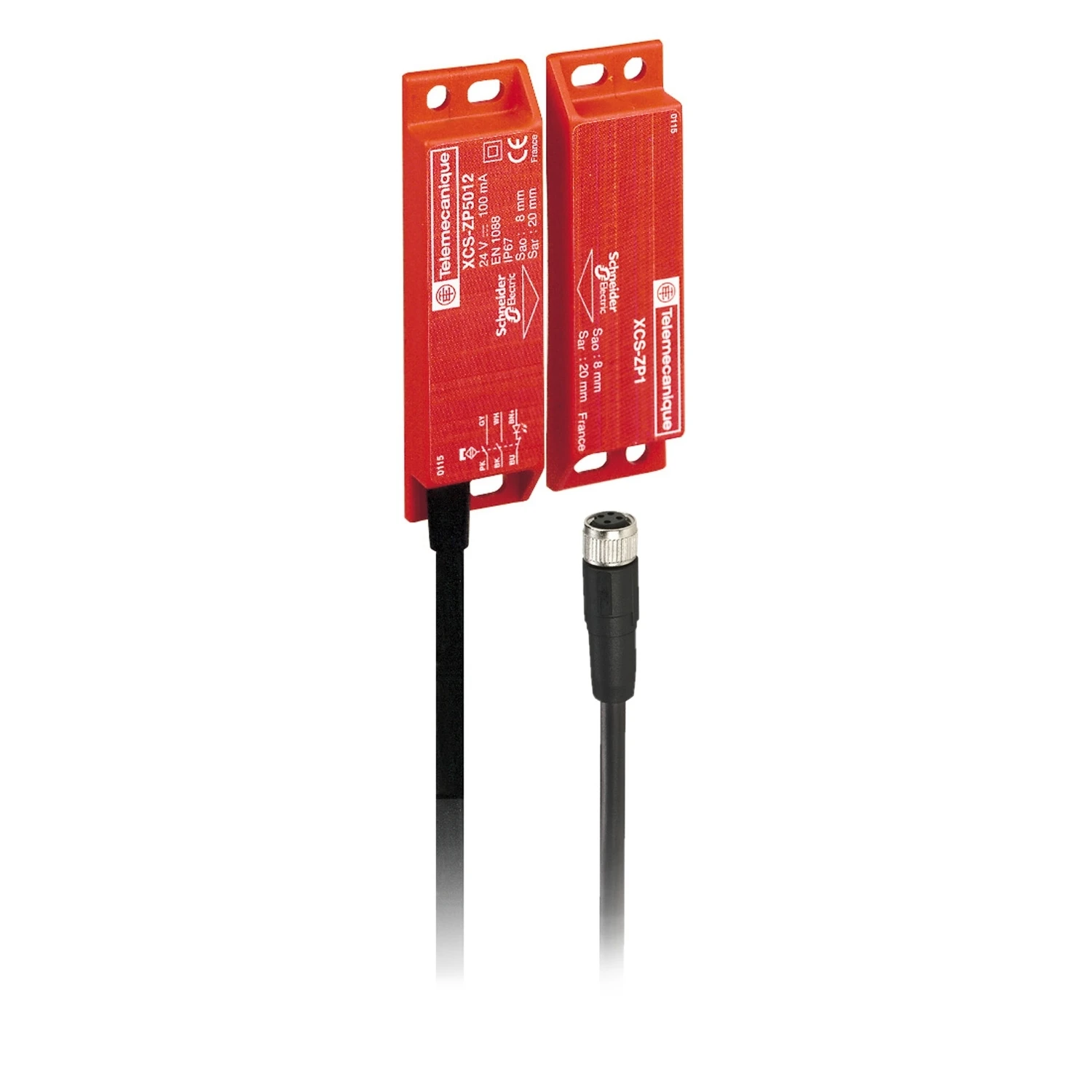

Coded Magnetic Switch XCSDMP 1 NC + 2 NO 1 NO Staggeredm12 0.15M - Image 3

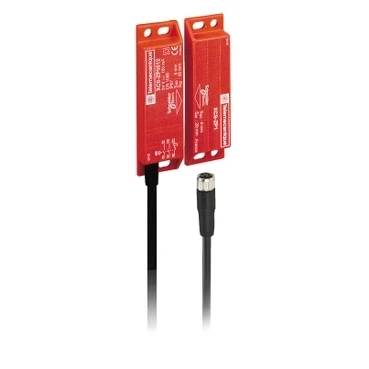

Coded Magnetic Switch XCSDMP 1 NC + 2 NO 1 NO Staggeredm12 0.15M - Image 4

Coded Magnetic Switch XCSDMP 1 NC + 2 NO 1 NO Staggeredm12 0.15M

£136.07 Incl. VAT

This XCSDMP Coded Magnetic Safety Switch is designed for use as a safety interlock switch for guard door or protective casings monitoring and position detection on machines with low inertia. It has 2 normally open and 1 normally closed staggered contacts in presence of magnet + one Led. It has a rectangular design with a 15 centimeter PVC cable connection, allowing for flexible installation. Its B10D reliability data is 50 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508. · · · This XCSDMP Coded Magnetic Safety Switch is designed for use as a safety interlock switch for guard door or protective casings monitoring and position detection on machines with low inertia. · · Height: 88mm · · It has 2 normally open and 1 normally closed staggered contacts in presence of magnet + one Led. · · Size: 88 x 25 x 13 mm · · It has a rectangular design with a 15 centimeter PVC cable connection, allowing for flexible installation. · · Weight: 0.18kg · · Depth: 13mm

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XCSDMP501L01M12 Categories: , , Brand: Part Number: 2500210748

Description

Technical Specifications  Technical Specifications Magnetic proximity switch Explosion safety category for gas None Performance level acc. to EN ISO 13849-1 Level e Housing material Plastic Construction type housing Cuboid Type of switching output Relay contact Type of electric connection Connector M12 Mechanical mounting condition for sensor Not flat Type of actuation Magnet Degree of protection (IP rating) IP67K Min. output current 100 mA Max. output current at protected output 100 mA Length of sensor 13 mm Number of semiconductor outputs with signalling function 0 Switching distance 20 mm SIL according to IEC 61508 3 Voltage type AC/DC Number of contact energized outputs with signalling function 0 Height of sensor 88 mm Width sensor 25 mm Number of protected semiconductor outputs 0 Number of protected contact energized outputs 0 Diameter sensor – mm Protected switch distance ON 8 mm Protected switch distance OFF 20 mm Ambient temperature -25 – 85 °C Rated supply voltage at AC 50 Hz – V Rated supply voltage at AC 60 Hz – V Rated supply voltage at DC 24 – 24 V Suitable for safety functions Yes With monitoring function downstream switching devices No With status indication No Cross-/short circuit identification possible Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2189651
