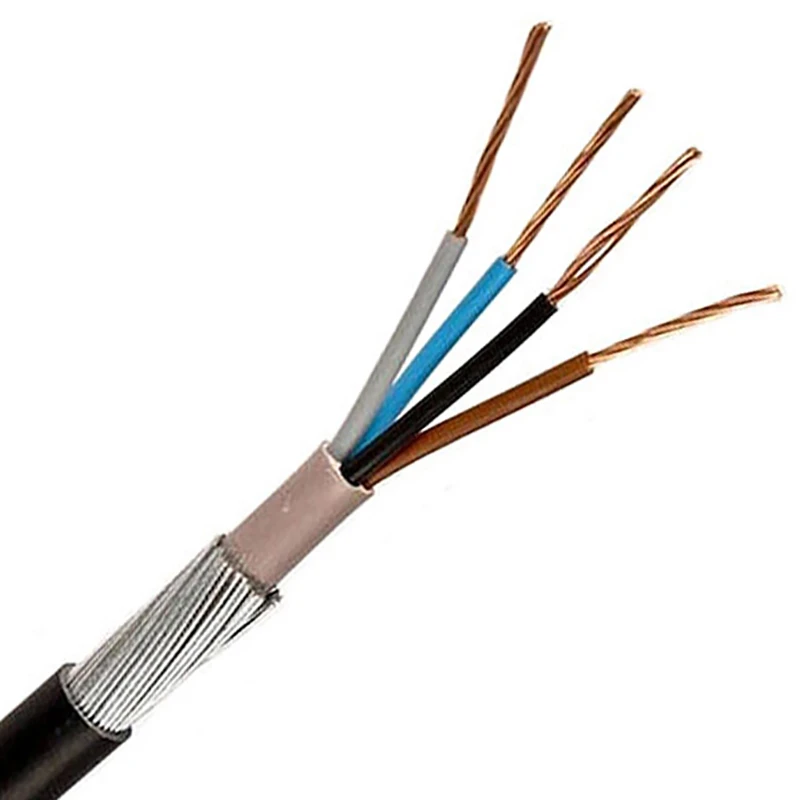

Commodity 6944LSH 2.5mm² Black XLPE/SWA/Basec Cable 4-Core 1m
£4.09 Incl. VAT
This product is cut to specification. Hence when ordering, a mutiple of 1 needs to be entered. 6944LSH 2.5mm Black 4-Core Cut XLPE/SWA/LSF BASEC · · · Cable Size: 2.5mm² · · Colour: Black · · Length in metres: 1 · · No. of cores: 4 · · Product Packaging: Cut · · Low Smoke Zero Halogen · · Standard: BS6724
Description
Technical Specifications Technical Specifications Power cable >= 1 kV, for fixed installations Concentric conductor None Conductor category Class 2 = stranded Conductor material Copper Shape of conductor Round Conductor surface Bare Sheath colour Black Core insulation material Polyolefin Sheath material Polyolefin Core identification Colour Nominal voltage U 1000 kV Nominal cross sectional area of conductor 2.5 mm² Outer diameter approx. 13.6 mm Nominal voltage U0 600 kV Max. conductor temperature 90 °C Number of cores 4 Permitted cable outer temperature during assembling/handling 0 – 80 °C Screen No Halogen free according to IEC 60754-2 No Lead sheath No
