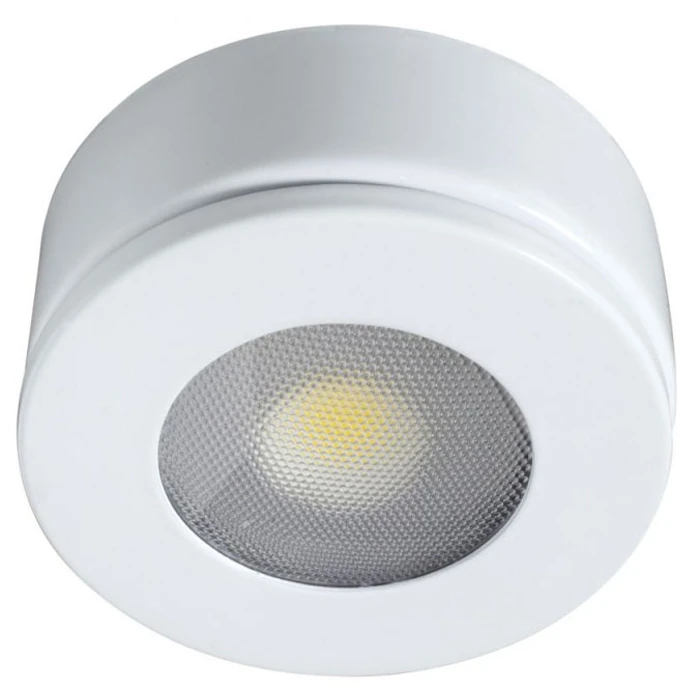

Commodore 2.5W LED 240V Cabinet Light IP20 White 3000K

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Outer diameter 71 mm Width – mm Housing colour White Conductor cross section – mm² Recess width – mm Height/depth 32 mm Length – mm Power factor 0.9 Rated life time L70/B50 at 25 °C 30000 h Recess length – mm Recess height/depth – mm Recess diameter 55 mm Number of lamps – Maximum system power 2.5 W Rated luminous flux acc. IEC 62722-2-1 – lm Number of poles – Unified Glare Rating (UGR) 30.1 Total harmonic distortion 70.4 Luminaire efficacy 83 lm/W Lamp power – – – W Colour temperature 3000 – 3000 K Nominal voltage 220 – 240 V Nominal current 12 – 12 mA Rated ambient temperature acc. IEC62722-2-1 -20 – 40 °C Light source included Yes Suitable for suspended mounting No Luminaire may be covered with thermally insulating material No Suitable for ceiling mounting No Dimming DSI No Dimming depending on control gear No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Dimming DMX No With light sensor No With movement sensor No Dimming 0-10 V No Dimming RF No Dimming Zigbee No Dimming DALI No Dimming LineSwitch No Bluetooth operated No Dimming trailing edge No Control gear included Yes Suitable for recessed mounting No Dimming manufacturer’s proprietary system No Suitable for emergency lighting No Suitable for light line configuration No Suitable for surface mounting No With air slots No Dimming leading edge No Fit for workplace acc. EN 12464-1 No Suitable for wall mounting Yes Dimming touch and dim No Dimming programmable No Dimming mains voltage modulation No No dimming function Yes Dimming 1-10 V No Dimming potentiometer (integrated) No Dimming with push-button No Dimming sine wave reduction No · Technical Data Sheet – Click to Download
