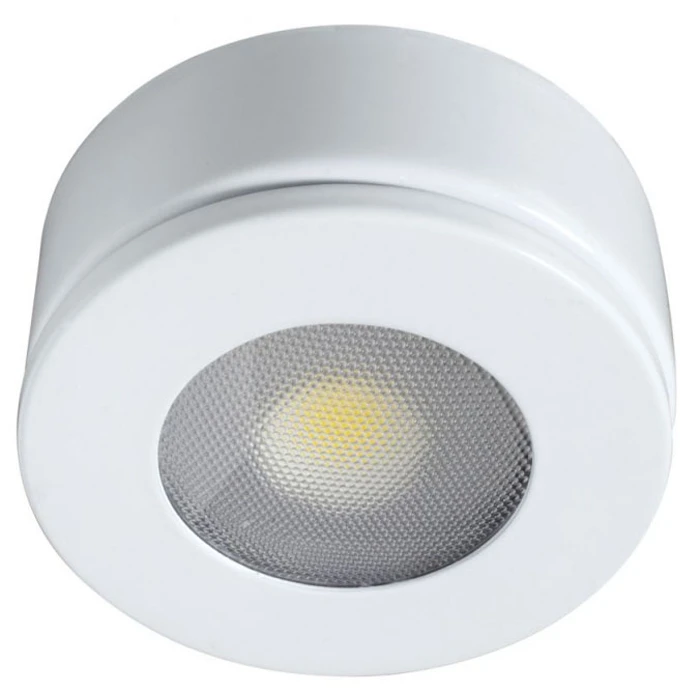

Commodore 2.5W LED 240V Cabinet Light IP20 White 4000K

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Width – mm Outer diameter 71 mm Height/depth 32 mm Housing colour White Conductor cross section – mm² Number of poles – Recess width – mm Length – mm Recess diameter 55 mm Power factor 0.9 Unified Glare Rating (UGR) 30.4 Total harmonic distortion 70.4 Recess length – mm Lamp power – – – W Maximum system power 2.4 W Recess height/depth – mm Rated luminous flux acc. IEC 62722-2-1 – lm Number of lamps – Luminaire efficacy 88 lm/W Rated life time L70/B50 at 25 °C 30000 h Nominal voltage 220 – 240 V Colour temperature 4000 – 4000 K Nominal current 12 – 12 mA Rated ambient temperature acc. IEC62722-2-1 -20 – 40 °C Light source included Yes With light sensor No Suitable for suspended mounting No With movement sensor No Suitable for wall mounting Yes Dimming sine wave reduction No Dimming with push-button No Dimming potentiometer (integrated) No Dimming depending on control gear No Dimming mains voltage modulation No Suitable for recessed mounting No Dimming 1-10 V No Dimming DSI No Dimming 0-10 V No Dimming leading edge No Dimming DMX No Suitable for surface mounting No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No With air slots No Control gear included Yes Suitable for emergency lighting No Bluetooth operated No Fit for workplace acc. EN 12464-1 No Luminaire may be covered with thermally insulating material No Dimming touch and dim No Dimming programmable No Suitable for ceiling mounting No Suitable for light line configuration No Dimming LineSwitch No Dimming DALI No No dimming function Yes Dimming manufacturer’s proprietary system No Dimming Zigbee No Dimming trailing edge No Dimming RF No · Technical Data Sheet – Click to Download
