Communication Module, for TeSys U 24V DC
Communication Module, for TeSys U 24V DC
Communication Module, for TeSys U 24V DC - Image 2
Communication Module, for TeSys U 24V DC - Image 3

Communication Module, for TeSys U 24V DC

£193.40 Incl. VAT

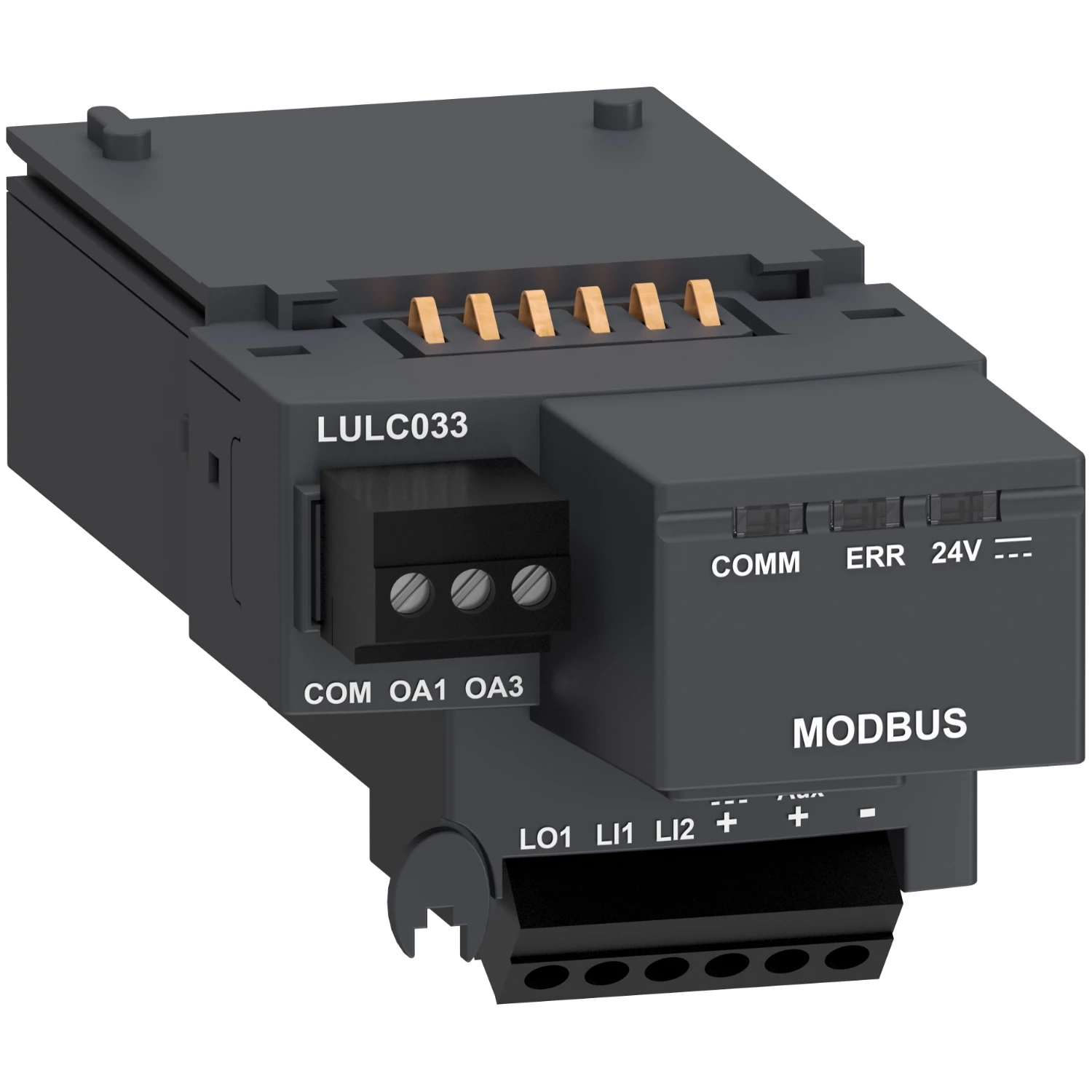

TeSys U communication module for Modbus, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides a RJ45 connector for connection to a Modbus network, a plug-in terminal block for the connection to an external power supply 24V DC, in addition with 2 x configurable logic inputs 24V DC and 1 x logic output 24V DC. On front side, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11C for a LUB base or LU9MRC for a LU2B base. It displays 3 LEDs indicating 24V voltage presence (24V=) and communication status (COMM, ERR). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys U communication module for Modbus, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. · · It provides a RJ45 connector for connection to a Modbus network, · · a plug-in terminal block for the connection to an external power supply 24V DC, in addition with 2 x configurable logic inputs 24V DC and 1 x logic output 24V DC. · · On front side, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11C for a LUB base or LU9MRC for a LU2B base. · · It displays 3 LEDs indicating 24V voltage presence (24V=) and communication status (COMM, ERR).

1 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LULC033 Categories: , , Brand: Part Number: 2500246667

Description

Technical Specifications  Technical Specifications Fieldbus, decentr. periphery – communication module Width 45.00 mm Height 45.00 mm Depth 95.00 mm Supply voltage DC 24.00 – 24.00 V Supply voltage AC 50 Hz – – – V Supply voltage AC 60 Hz – – – V Radio standard GPRS No Radio standard UMTS No Radio standard GSM No IO link master No Wall mounting/direct mounting No Supporting protocol for EtherNet/IP Yes Front built-in possible Yes Rack-assembly possible No Radio standard WLAN 802.11 No Radio standard Bluetooth No Supporting protocol for SafetyBUS p No Supporting protocol for PROFIsafe No Supporting protocol for INTERBUS-Safety No Supporting protocol for DeviceNet Safety No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for Foundation Fieldbus No Supporting protocol for PROFINET CBA No Supporting protocol for ASI No Supporting protocol for Data-Highway No Supporting protocol for DeviceNet No Supporting protocol for other bus systems No System accessory Yes Supporting protocol for SERCOS No Supporting protocol for SUCONET No Fieldbus connection over separate bus coupler possible No Supporting protocol for MODBUS Yes Supporting protocol for PROFINET IO No With potential separation Yes Rail mounting possible No Appendant operation agent (Ex ia) No Appendant operation agent (Ex ib) No Supporting protocol for KNX No Suitable for safety functions No Supporting protocol for TCP/IP No Supporting protocol for LON No Supporting protocol for PROFIBUS No Supporting protocol for INTERBUS No Supporting protocol for CAN No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188198
