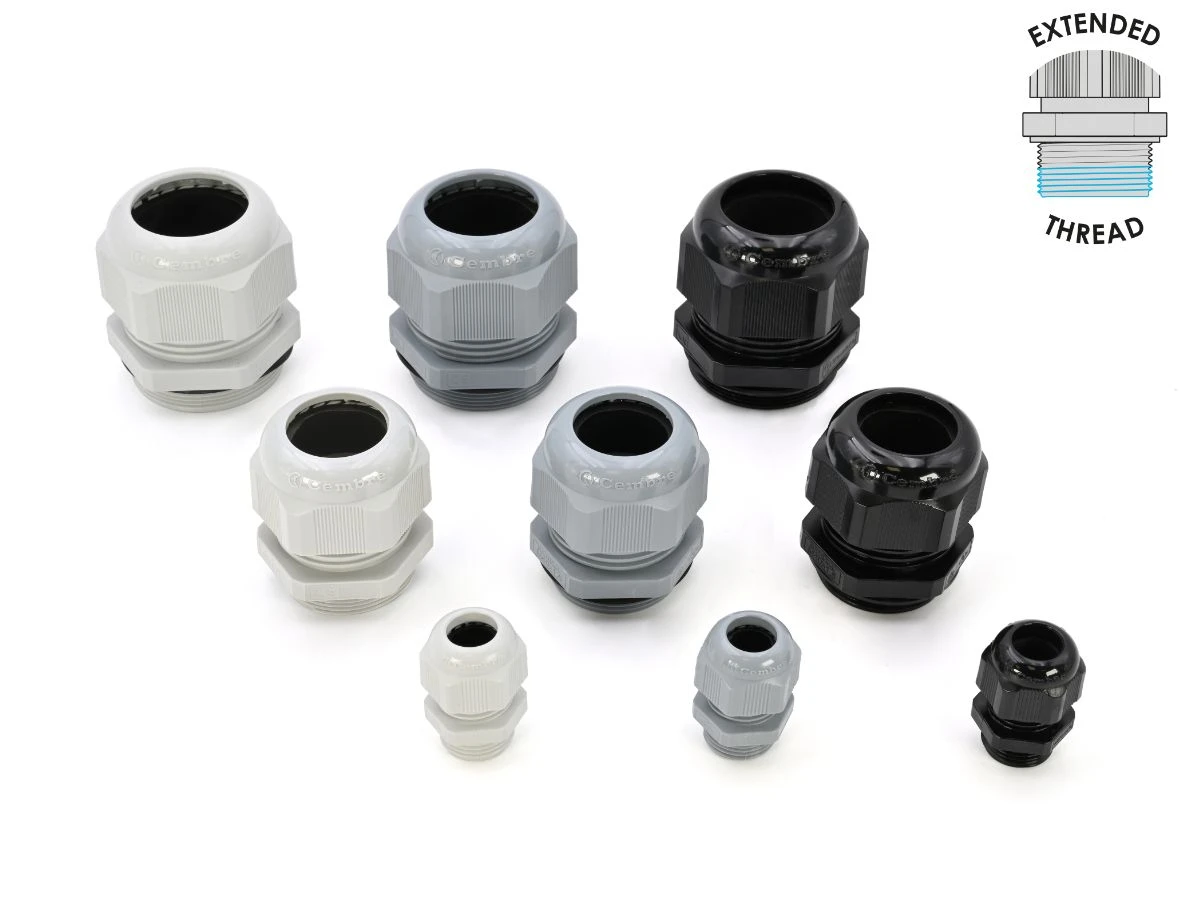

Compression Cable Gland Extended Thread IP68 Polyamide M50 Black 10/Pack
Compression Cable Gland Extended Thread IP68 Polyamide M50 Black 10/Pack
Compression Cable Gland Extended Thread IP68 Polyamide M50 Black 10/Pack - Image 2
Compression Cable Gland Extended Thread IP68 Polyamide M50 Black 10/Pack - Image 3

Compression Cable Gland Extended Thread IP68 Polyamide M50 Black 10/Pack

£20.08 Incl. VAT

M50x1.5 Polyamide PA6.6 Extended Thread Cable Gland black · · · Polyamide PA6.6 Body · · Self-extingushing Class V2 (UL 94) · · -20°C to +90°C Temperature Range · · IP68 Protection Class · · Metric Thread M 1.5 · · RAL 9005 Black · · CE Marking

12 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1901.M50N Categories: , , Brand: Part Number: 1052090083

Description

Technical Specifications  Technical Specifications Cable gland Material Plastic For ATEX classification, Ex-zone gas None For ATEX classification, Ex-zone dust None Degree of protection (IP rating) IP68 Type of sealing Sealing ring Colour Black Thread type Metric Nominal thread size metric/PG 50 RAL number 9005 Wrench width 55 mm Pitch thread 1.5 mm Thread length 18 mm Material qualifier Polyamide (PA) Model Straight Working temperature -40 – 100 °C Multi cable sealing No Flat cable sealing No Separable (split) screw gland No EMC-version No Glass fibre reinforced No Suitable for cable outer diameter 27 – 35 mm Hexagon angular dimension 55 mm Snapping in opening No For armoured cable No Explosion-tested version No With strain relief Yes Locknut included No Shock resistant Yes Bend radius protection/trumpet flare No Screened No Halogen free No · Technical Data Sheet – Click to Download
