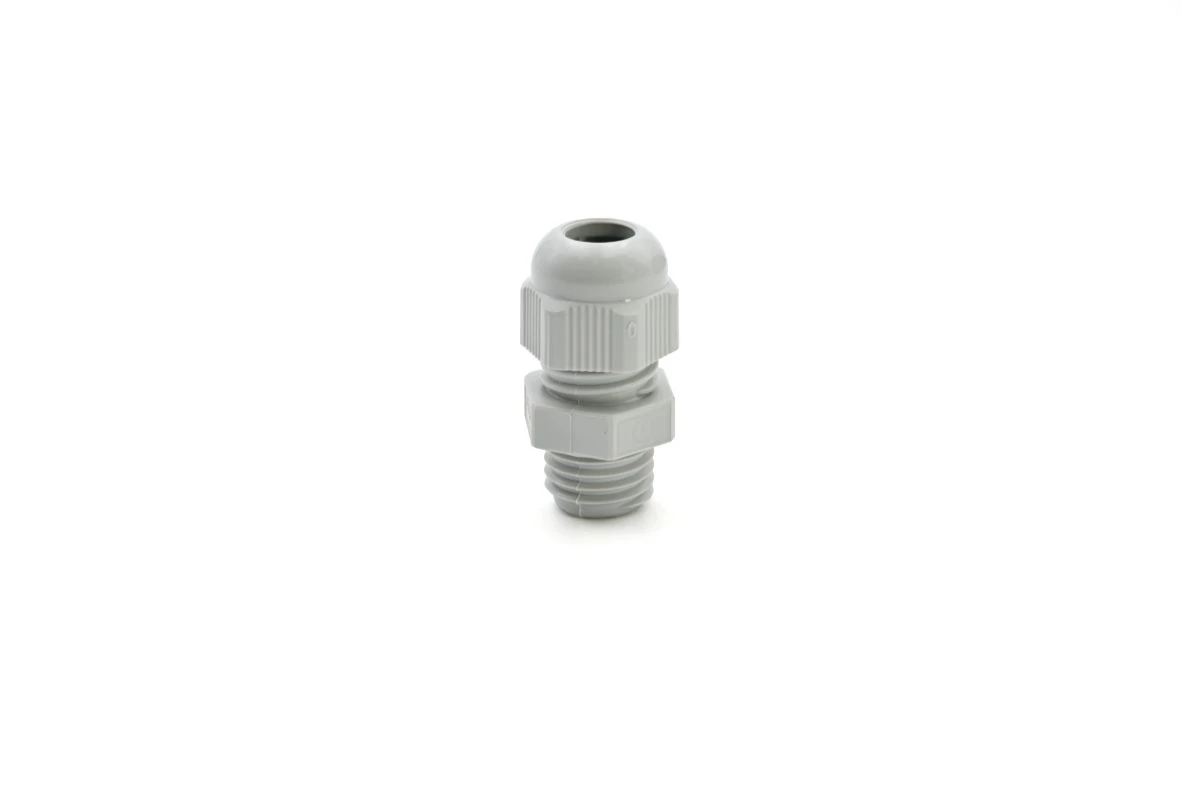

Cembre Compression Cable Gland IP68 Polyamide M16 Light Grey – 100 Pack

Technical Specifications  Technical Specifications Cable gland Type of sealing Sealing ring Colour Grey Material Plastic For ATEX classification, Ex-zone gas None Degree of protection (IP rating) IP68 For ATEX classification, Ex-zone dust None Thread type Metric Model Straight Material qualifier Polyamide (PA) Surface protection Untreated Pitch thread 1.5 mm Wrench width 19 mm Working temperature -40 – 100 °C Shock resistant No Suitable for cable outer diameter 5 – 10 mm Thread length 8 mm Hexagon angular dimension 19 mm Nominal thread size metric/PG 16 RAL number 7035 For armoured cable No Bend radius protection/trumpet flare No Explosion-tested version No Snapping in opening No Multi cable sealing No Separable (split) screw gland No Glass fibre reinforced No Locknut included No EMC-version No With strain relief Yes Screened No Flat cable sealing No Halogen free No · Technical Data Sheet – Click to Download
