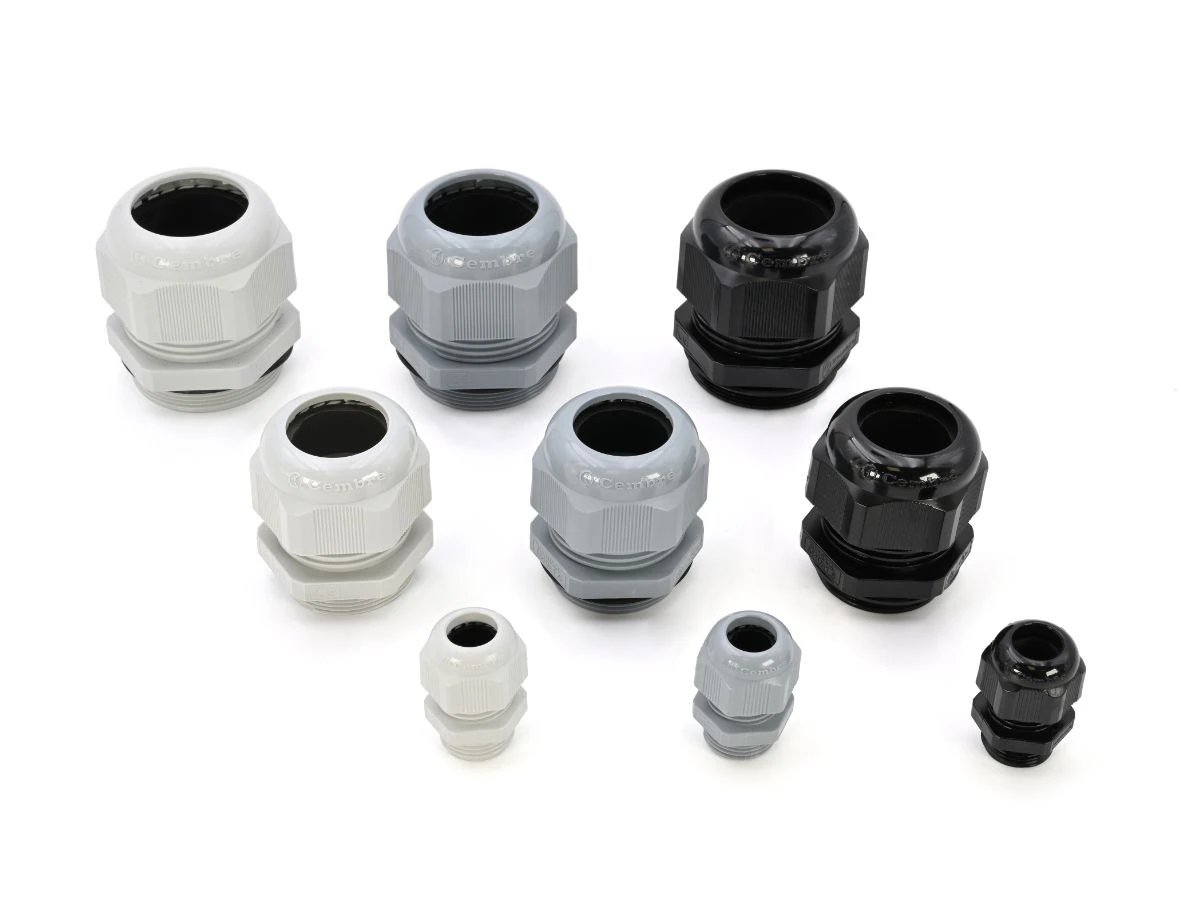

Cembre M20X1.5 Polyamide PA6.6 Cable Gland Black

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone gas None For ATEX classification, Ex-zone dust None Material Plastic Degree of protection (IP rating) IP68 Model Straight Thread type Metric Type of sealing Sealing ring Material qualifier Polyamide (PA) Colour Black Nominal thread size metric/PG 20 Surface protection Untreated Hexagon angular dimension 25 mm Thread length 9 mm Pitch thread 1.5 mm RAL number 9005 Spanner width 25 mm Working temperature -40 – 100 °C Suitable for cable outer diameter 7 – 13 mm Explosion-tested version No Glass fibre reinforced No Bend radius protection/trumpet flare No Locknut included No Screened No Multi cable sealing No Separable (split) screw gland No Flat cable sealing No EMC-version No For armoured cable No Snapping in opening No Shock resistant No With strain relief Yes Halogen free No · Technical Data Sheet – Click to Download
