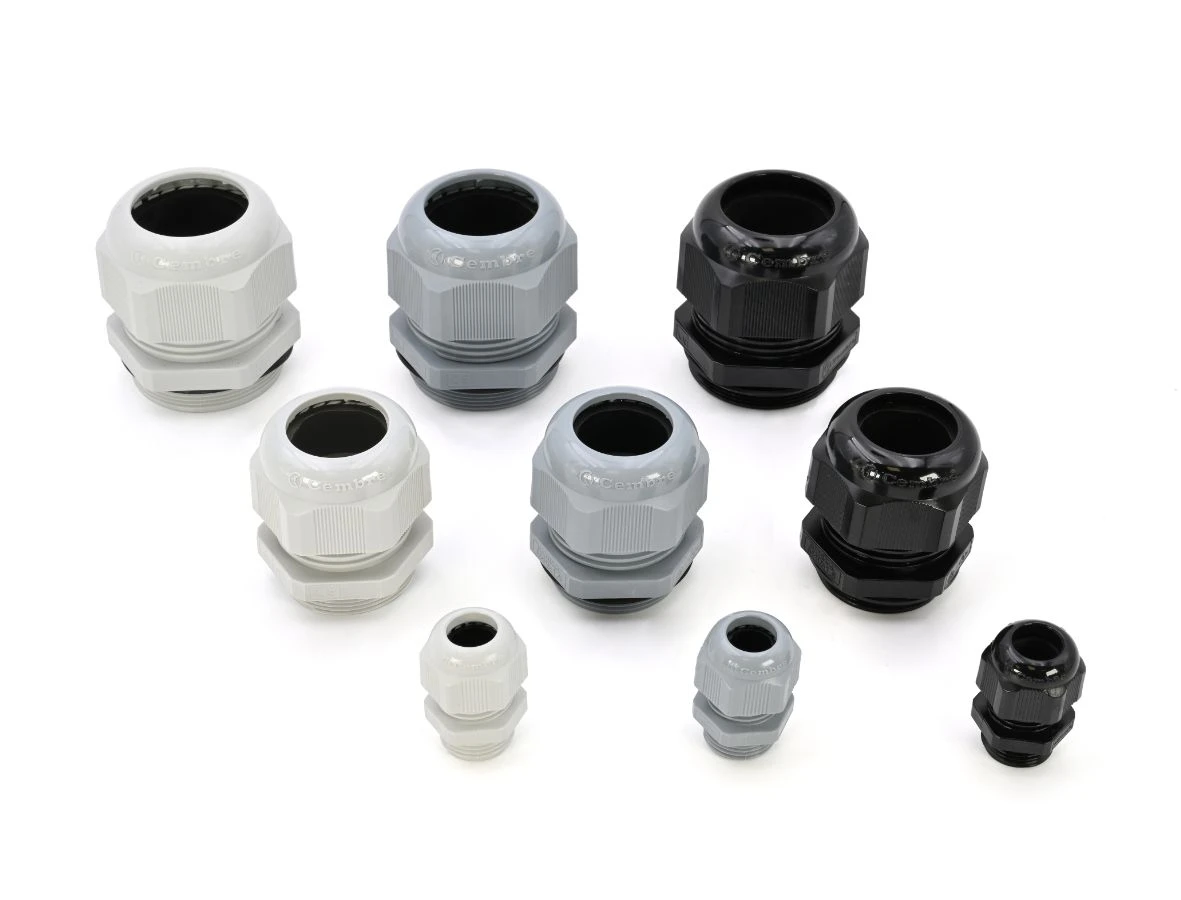

Cembre M32X1.5 Polyamide PA6.6 Cable Gland Dark Grey

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone gas None Colour Grey For ATEX classification, Ex-zone dust None Material Plastic Degree of protection (IP rating) IP68 Thread type Metric Model Straight Type of sealing Sealing ring Surface protection Untreated Material qualifier Polyamide (PA) Nominal thread size metric/PG 32 Pitch thread 1.5 mm Hexagon angular dimension 36 mm Thread length 10 mm Spanner width 36 mm RAL number 7001 Working temperature -40 – 100 °C Suitable for cable outer diameter 13 – 21 mm Halogen free No Shock resistant No Glass fibre reinforced No Flat cable sealing No Multi cable sealing No Locknut included No Separable (split) screw gland No For armoured cable No Snapping in opening No Explosion-tested version No Screened No Bend radius protection/trumpet flare No EMC-version No With strain relief Yes · Technical Data Sheet – Click to Download
