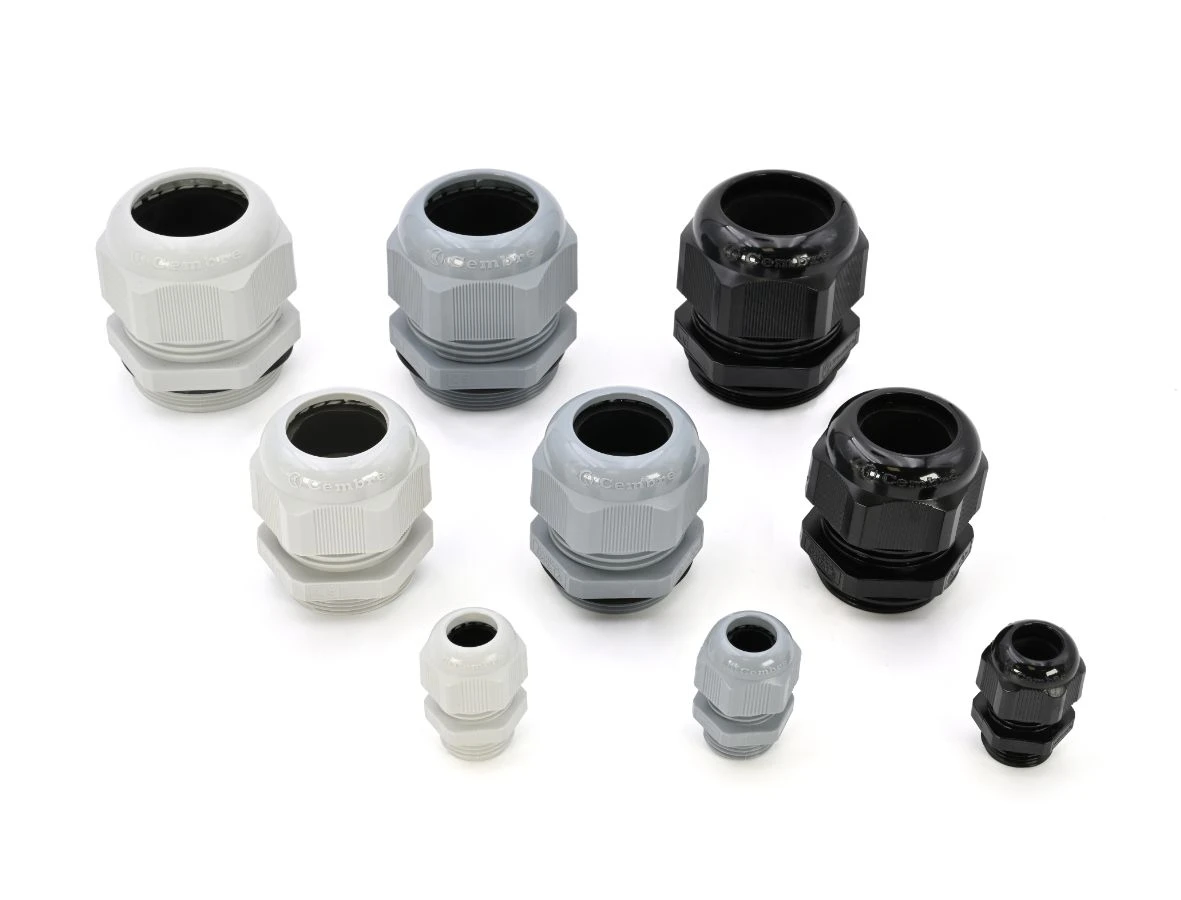

Compression Cable Gland IP68 Polyamide M40 Dark Grey 15/Pack
Compression Cable Gland IP68 Polyamide M40 Dark Grey 15/Pack
Compression Cable Gland IP68 Polyamide M40 Dark Grey 15/Pack - Image 2
Compression Cable Gland IP68 Polyamide M40 Dark Grey 15/Pack - Image 3

Compression Cable Gland IP68 Polyamide M40 Dark Grey 15/Pack

£4.27 Incl. VAT

M40x1.5 Polyamide PA6.6 Cable Gland dark grey · · · Polyamide PA6.6 Body · · Self-extingushing Class V2 (UL 94) · · -20°C to +90°C Temperature Range · · IP68 Protection Class · · Metric Thread M 1.5 · · RAL 7001 Dark Grey · · CE Marking

33 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1900.M40G Categories: , , Brand: Part Number: 1061005397

Description

Technical Specifications  Technical Specifications Cable gland Type of sealing Sealing ring For ATEX classification, Ex-zone gas None Material Plastic For ATEX classification, Ex-zone dust None Colour Grey Degree of protection (IP rating) IP68 Thread type Metric Model Straight Material qualifier Polyamide (PA) Surface protection Untreated Working temperature -40 – 100 °C Suitable for cable outer diameter 19 – 28 mm Thread length 10 mm Hexagon angular dimension 46 mm RAL number 7001 Pitch thread 1.5 mm Nominal thread size metric/PG 40 Wrench width 46 mm Snapping in opening No EMC-version No Bend radius protection/trumpet flare No For armoured cable No Multi cable sealing No Separable (split) screw gland No Flat cable sealing No Glass fibre reinforced No Shock resistant No Explosion-tested version No Locknut included No Screened No With strain relief Yes Halogen free No · Technical Data Sheet – Click to Download
