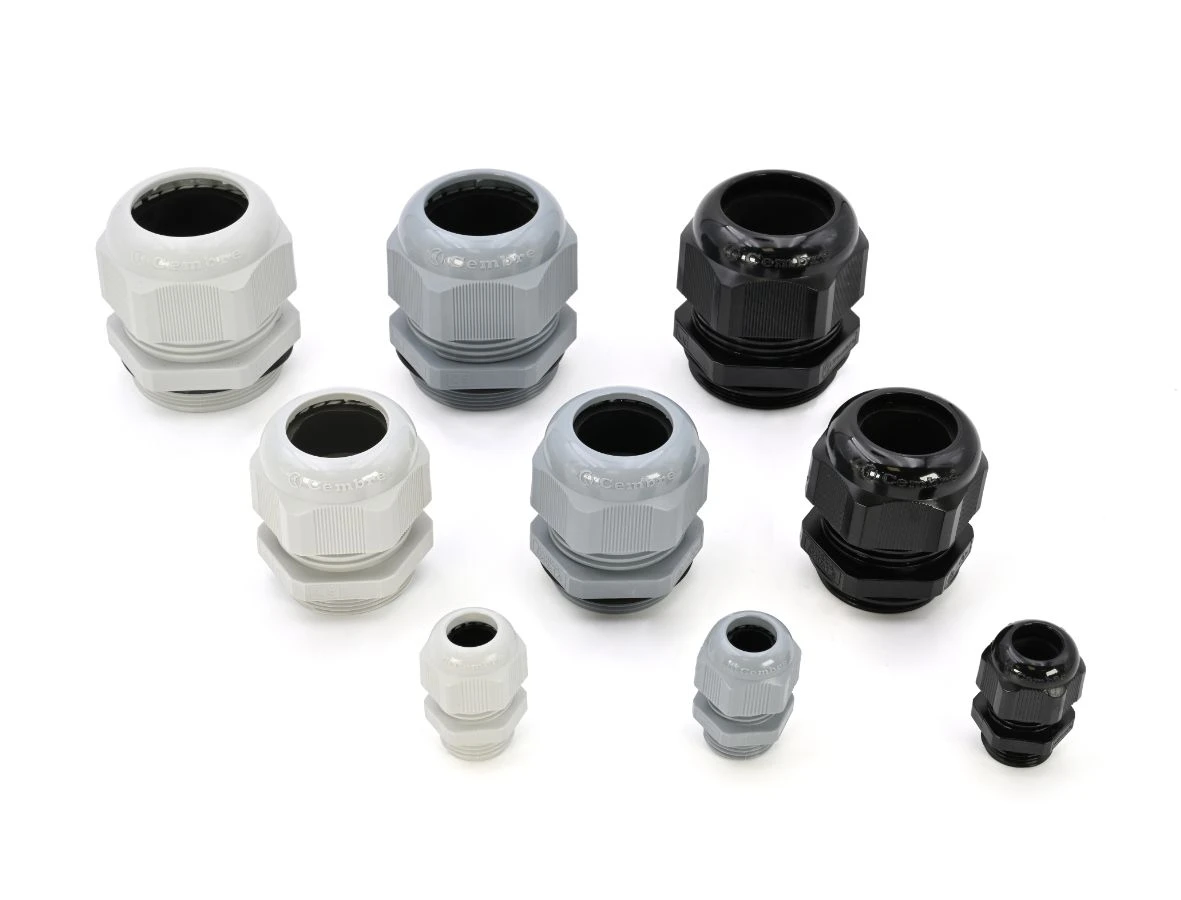

Cembre M50X1.5 Polyamide PA6.6 Cable Gland Dark Grey

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone dust None For ATEX classification, Ex-zone gas None Colour Grey Material Plastic Degree of protection (IP rating) IP68 Model Straight Thread type Metric Material qualifier Polyamide (PA) Type of sealing Sealing ring RAL number 7001 Surface protection Untreated Hexagon angular dimension 55 mm Nominal thread size metric/PG 50 Spanner width 55 mm Pitch thread 1.5 mm Thread length 12 mm Suitable for cable outer diameter 27 – 35 mm Working temperature -40 – 100 °C Locknut included No Multi cable sealing No Screened No With strain relief Yes Explosion-tested version No Bend radius protection/trumpet flare No EMC-version No Separable (split) screw gland No Flat cable sealing No For armoured cable No Snapping in opening No Glass fibre reinforced No Halogen free No Shock resistant No · Technical Data Sheet – Click to Download
