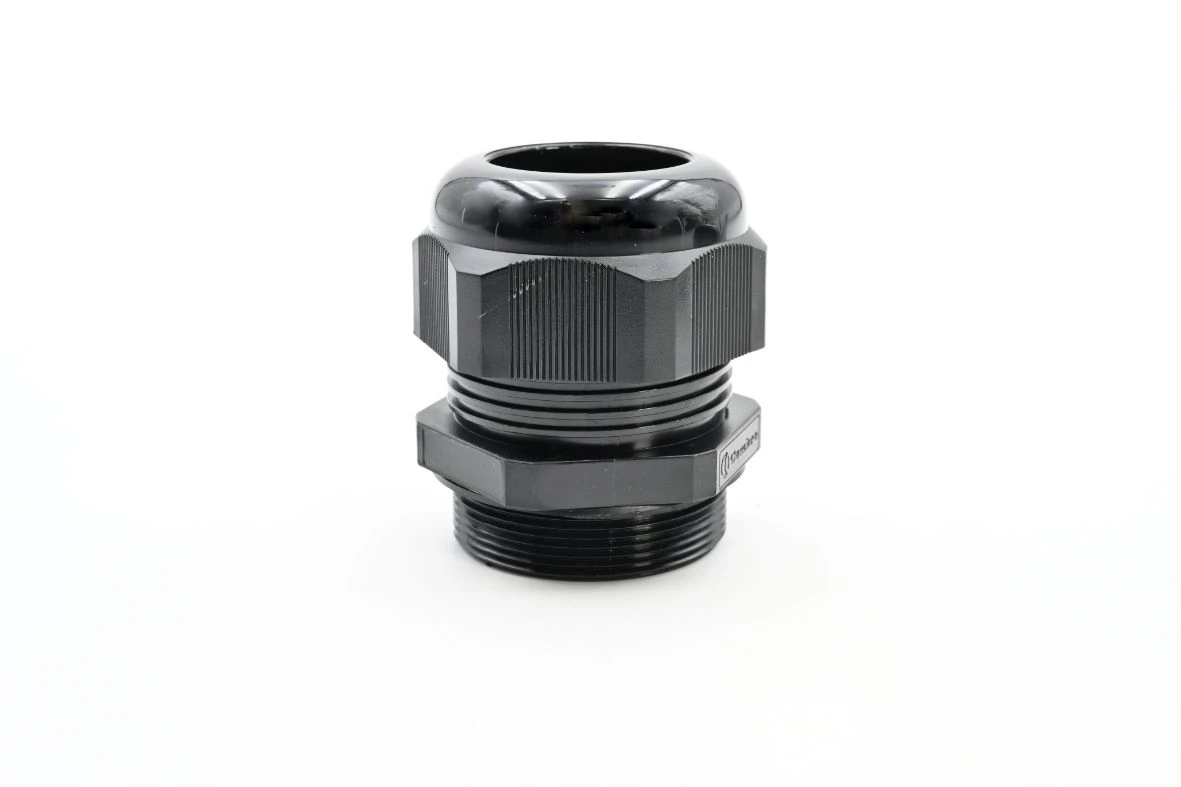

Compression Cable Gland Standard IP68 Polyamide M32x1.5 Black 25/Pack
Compression Cable Gland Standard IP68 Polyamide M32x1.5 Black 25/Pack
Compression Cable Gland Standard IP68 Polyamide M32x1.5 Black 25/Pack - Image 2
Compression Cable Gland Standard IP68 Polyamide M32x1.5 Black 25/Pack - Image 3
Compression Cable Gland Standard IP68 Polyamide M32x1.5 Black 25/Pack - Image 4

Compression Cable Gland Standard IP68 Polyamide M32x1.5 Black 25/Pack

£2.18 Incl. VAT

M32x1.5 Polyamide PA6.6 Cable Gland black · · · Polyamide PA6.6 Body · · Self-extingushing Class V2 (UL 94) · · -20°C to +90°C Temperature Range · · IP68 Protection Class · · Metric Thread M 1.5 · · RAL 9005 Black · · CE Marking

222 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1900.M32N Categories: , , Brand: Part Number: 1061005420

Description

Technical Specifications  Technical Specifications Cable gland Type of sealing Sealing ring Material Plastic For ATEX classification, Ex-zone gas None For ATEX classification, Ex-zone dust None Degree of protection (IP rating) IP68 Colour Black Surface protection Untreated Pitch thread 1.5 mm Hexagon angular dimension 36 mm Nominal thread size metric/PG 32 Wrench width 36 mm Material qualifier Polyamide (PA) Model Straight Thread type Metric Suitable for cable outer diameter 13 – 21 mm EMC-version No With strain relief Yes Shock resistant No Halogen free No Working temperature -40 – 100 °C RAL number 9005 Thread length 10 mm Flat cable sealing No For armoured cable No Snapping in opening No Glass fibre reinforced No Multi cable sealing No Separable (split) screw gland No Explosion-tested version No Screened No Bend radius protection/trumpet flare No Locknut included No · Technical Data Sheet – Click to Download
