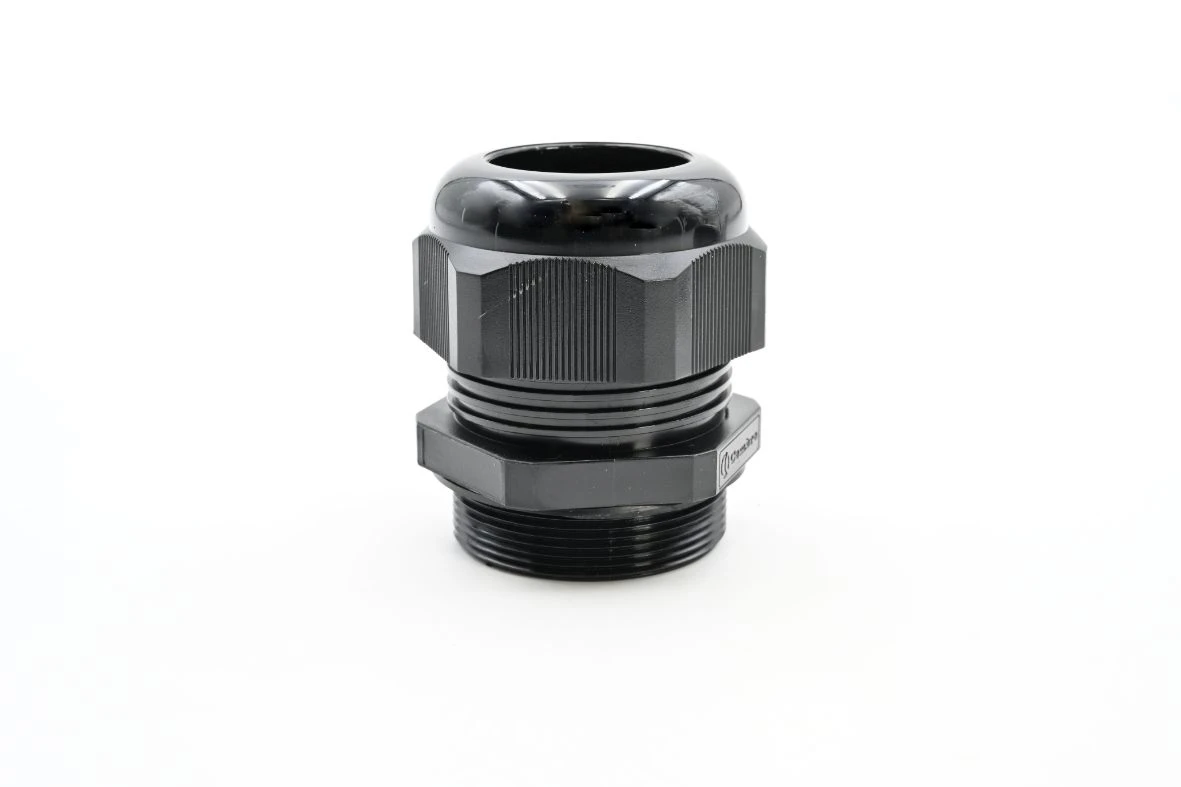

Cembre M50X1.5 Polyamide PA6.6 Cable Gland Black

Technical Specifications  Technical Specifications Cable gland Material Plastic For ATEX classification, Ex-zone gas None For ATEX classification, Ex-zone dust None Degree of protection (IP rating) IP68 Thread type Metric Type of sealing Sealing ring Model Straight Material qualifier Polyamide (PA) Colour Black Pitch thread 1.5 mm Surface protection Untreated Spanner width 55 mm Thread length 12 mm Nominal thread size metric/PG 50 Hexagon angular dimension 55 mm RAL number 9005 Suitable for cable outer diameter 27 – 35 mm Working temperature -40 – 100 °C Halogen free No Shock resistant No With strain relief Yes Bend radius protection/trumpet flare No Locknut included No EMC-version No Explosion-tested version No Screened No Glass fibre reinforced No Separable (split) screw gland No Flat cable sealing No Multi cable sealing No For armoured cable No Snapping in opening No · Technical Data Sheet – Click to Download
