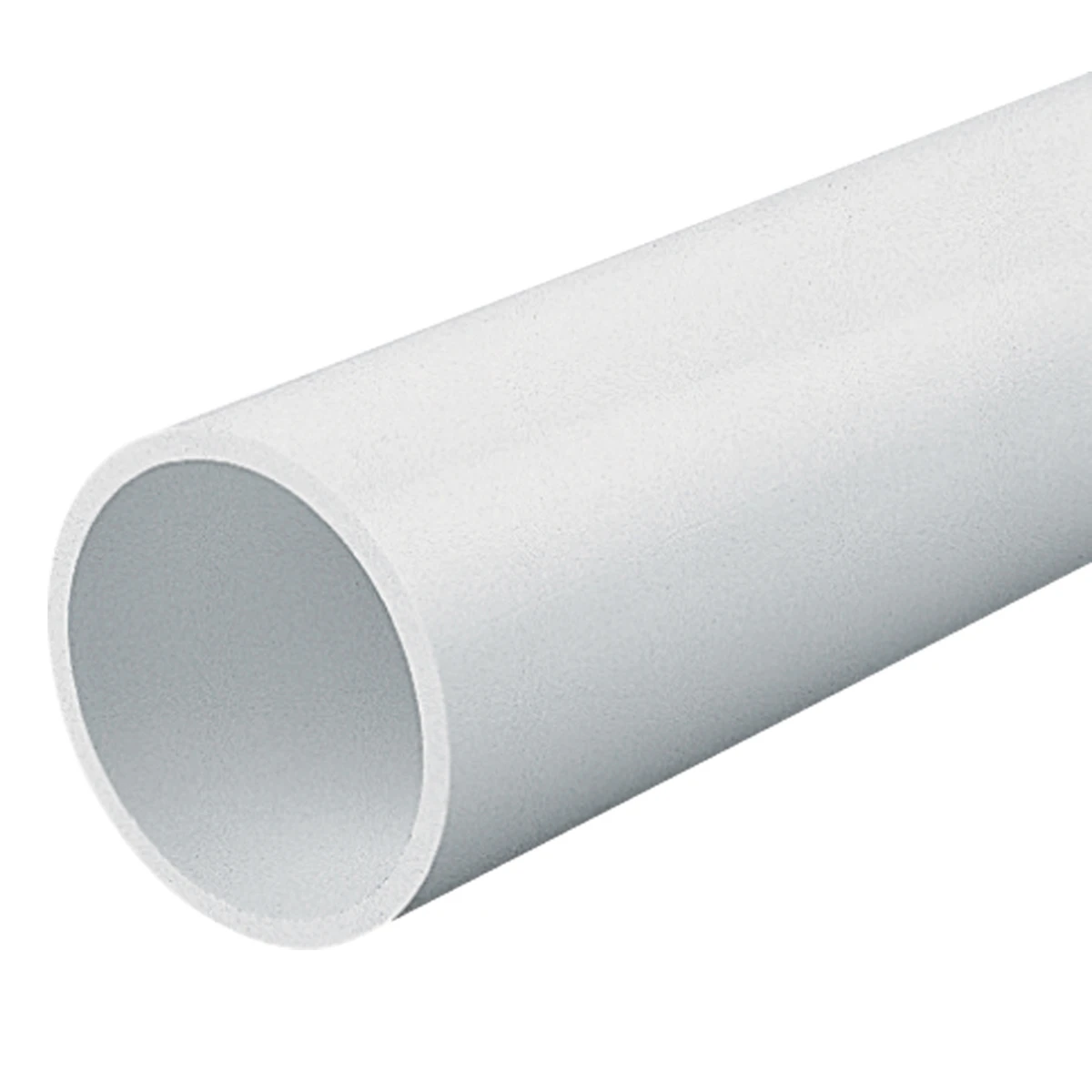

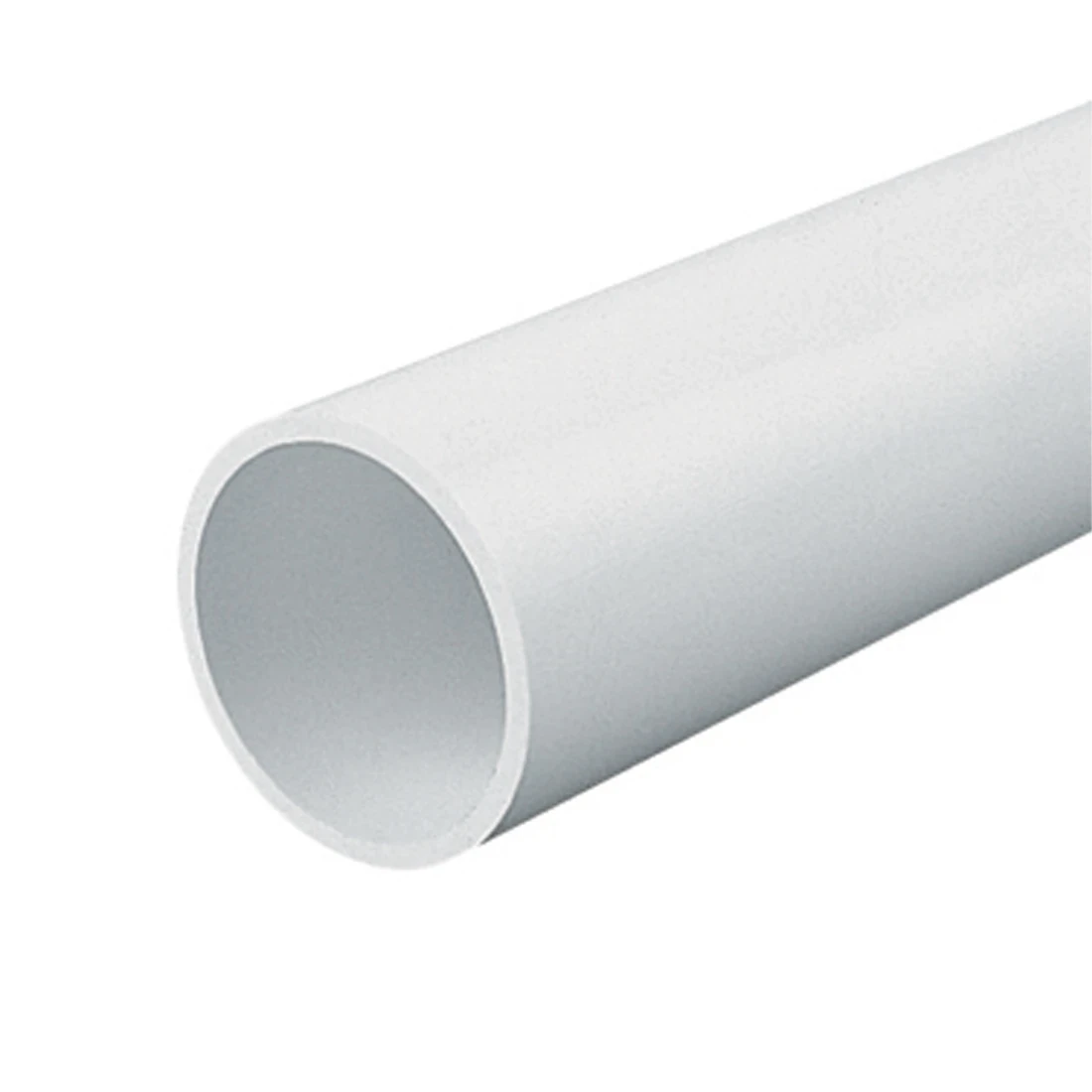

Marshall-Tufflex 25mm x 3m PVC White Round Heavy Gauge Conduit
£6.71 Incl. VAT
Heavy Gauge (Class 4) Round Conduit manufactured from high impact white polyvinyl chloride (PVCu) housing body, ideal for use in many different areas and the vast selection of components makes it versatile in all applications. · · · Non-flame propagating · · Withstands hazardous site conditions · · In accordance to requirements for BS 4607, BS EN 61386-1:2008, BS EN 61386-21:2004+A11:2010 and BS EN 61386-25:2011 where applicable. · · Provision for MET1 brass earth terminal · · All boxes have threaded brass inserts · · Manufactured using 100% recycled material
Description
Technical Specifications Technical Specifications Plastic conduit RAL number 9003 Inner diameter 21 mm Outer diameter 25 mm Operating temperature -5 – 60 °C Flush-mounted installation No Suitable for underground installation No High conducting inner coating No Fire retardant version No Surface mounted Yes Suitable for installation on wood Yes Hollow wall Yes Suitable for subsurface installation (screed) No Suitable for concrete installation No Machine and systems installation Yes With sleeve No With metre indication No Halogen free No · Technical Data Sheet – Click to Download
