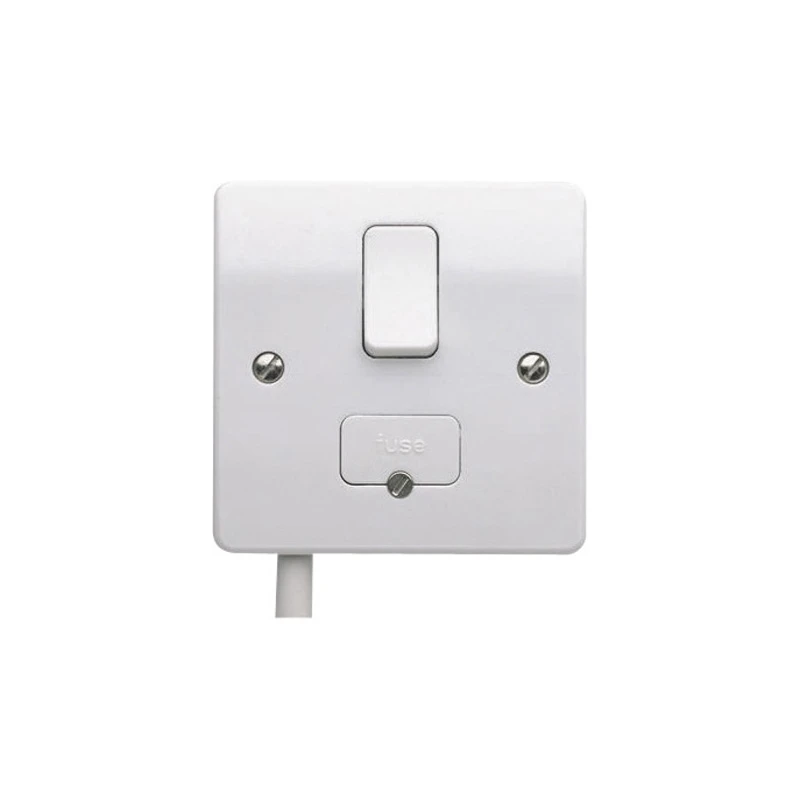

MK Electric Connection Unit Double Pole Switched Fused Spur 13A White Front Flex Outlet
A Connection Unit, with front flex outlet. A screw less cord grip automatically clamps and securely holds the cable in connection units with base and front flex outlets. Switched unit is double-pole with neutral pole contacts making before and breaking after live contacts. When servicing or repairing appliances, fuse carriers remain attached to the front-plate when opened and can be padlocked for safety. An optional tamperproof screw on fuse carriers is particularly useful for appliances in public areas and in-line terminals allow wire to be cut stripped to the same length, backed out captive terminal screws and clear marking make installation easy. · · · High quality thermoset with inherent antimicrobial properties · · Resists scratching · · Maintains appearance · · Can be locked in the open position by removing the fuse and using K2000 fuse carrier padlock
Description
Technical Specifications Technical Specifications Fused connection unit Material Plastic Colour White Mounting method Flush mounted Nominal current 13 A Width of device 86 mm Height of device 86 mm With on/off switch Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/404662
