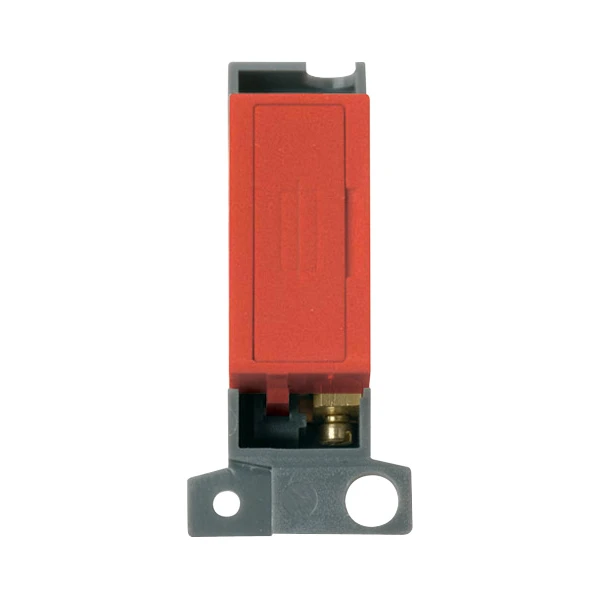

Click Scolmore Connection Unit Fused FCU Module 13A Red
Scolmore MiniGrid Fused FCU Module with 13A current rating. This MiniGrid module is easily and quickly exchanged or mounted onto unfurnished plates by means of a simple single screw fixing. · · · Load Rating 13A · · Terminal Torque 0.4Nm · · Terminal Capacity 4 x 1.5mm2 or 2 x 2.5mm2 · · Product Markings Fused Symbol · · Fuse Fitted 13A (BS 1362) · · Back Box Depth Dependent On Plate Used · · Standards BS 5733: 2010 · · Warranty 10 Years
Description
Technical Specifications Technical Specifications Combination switch/wall socket outlet Type of fastening Mounting with screw Material Plastic Material qualifier Thermoplastic Type of socket outlet Socket outlet CEE 7/3 (type F) Mounting method Flush mounted Colour Red Degree of protection (IP rating) IP20 Nominal voltage 240 V Rated current 13 A · Technical Data Sheet – Click to Download
