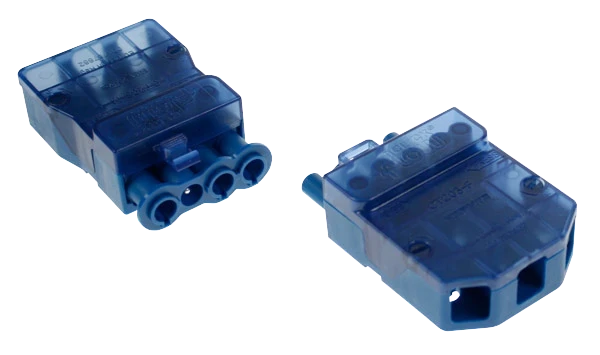

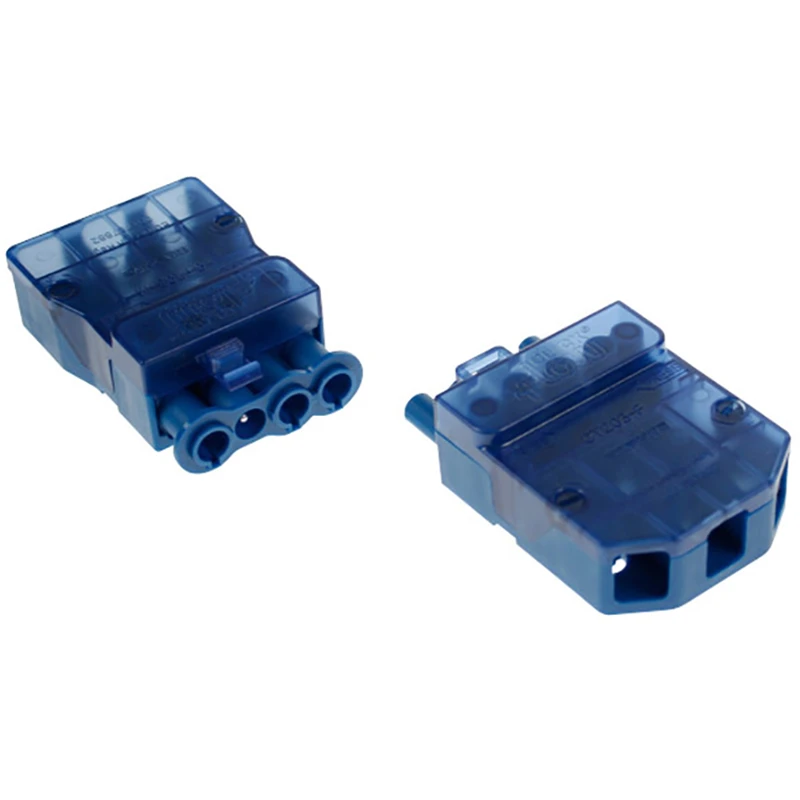

Connector 4 Pin Flow Fast-Fit Cord Grip 20A 250V
Connector 4 Pin Flow Fast-Fit Cord Grip 20A 250V
Connector 4 Pin Flow Fast-Fit Cord Grip 20A 250V - Image 2
Connector 4 Pin Flow Fast-Fit Cord Grip 20A 250V - Image 3
Connector 4 Pin Flow Fast-Fit Cord Grip 20A 250V - Image 4

Connector 4 Pin Flow Fast-Fit Cord Grip 20A 250V

£3.85 Incl. VAT

CT203C is a Fast-Fit Connector with auxiliary terminal and the cable grips for where the installation limits fixing of the connector. The auxiliary provides the opportunity for a second switched live or permanent feed for use with typically with emergency lighting applications. · · · Fast fit cable clamps · · Male and female connector · · Male and female connector · · Fast fit cordgrip

345 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CT203C Categories: , , Brand: Part Number: 2500420008

Description

Technical Specifications  Technical Specifications Plug-in connector for plug-in building installation Width 49 mm Length 135 mm Height 23 mm Number of poles 4 Rated current 20 A Rated voltage 250 V Rated surge voltage 4 kV Number of connections per pole 3 Connection cross section (solid-core) 0.75 – 2.5 mm² Connection cross section (fine-strand) 0.75 – 2.5 mm² Halogen free No Mechanical coding No With strain relief No · Technical Data Sheet – Click to Download
