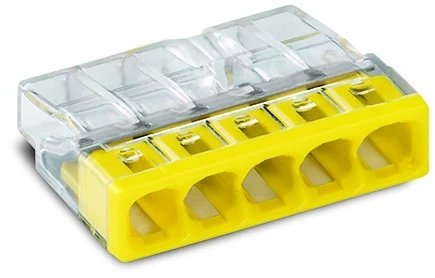

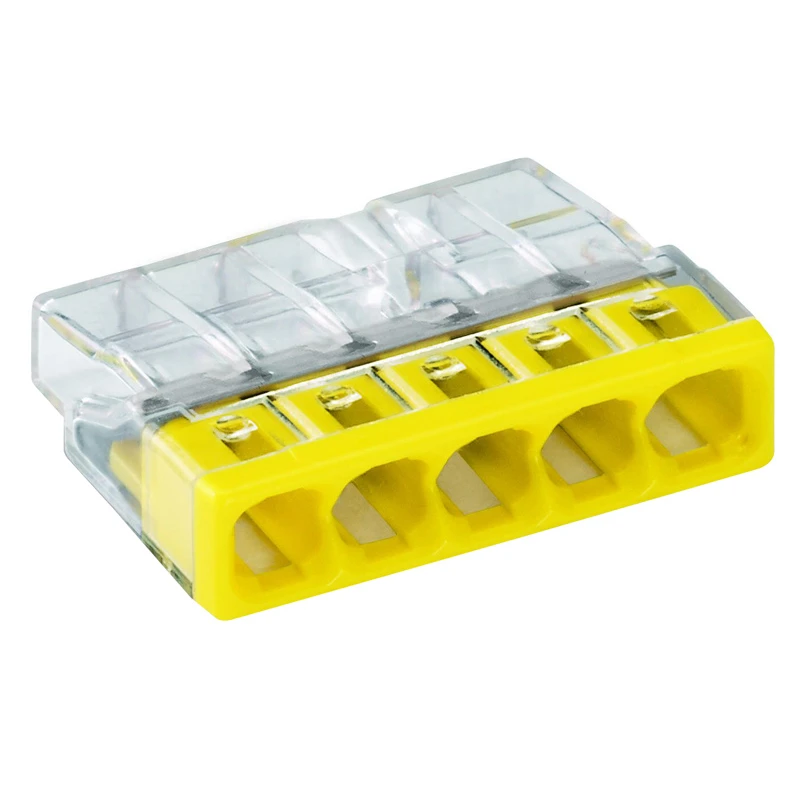

Connector Push-Wire 5 24A 450V 4Kv 0.5-2.5mm² Clear/Yellow
Connector Push-Wire 5 24A 450V 4Kv 0.5-2.5mm² Clear/Yellow
Connector Push-Wire 5 24A 450V 4Kv 0.5-2.5mm² Clear/Yellow - Image 2
Connector Push-Wire 5 24A 450V 4Kv 0.5-2.5mm² Clear/Yellow - Image 3
Connector Push-Wire 5 24A 450V 4Kv 0.5-2.5mm² Clear/Yellow - Image 4

Connector Push-Wire 5 24A 450V 4Kv 0.5-2.5mm² Clear/Yellow

£31.74 Incl. VAT

Wago 2273 Compact Push Wire Connector is a 5-conductor terminal block connect solid from 0.5 to 2.5mm² with strip length from 11mm. · · · Easy testing while installed · · Connectors can be made common using the 862-482 jumper · · Connectors can be made common using the 862-482 jumper · · RoHS compliant · · Any combination of conductor sizes is possible · · PUSH WIRE® connection terminates solid (“s”) copper conductors

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2273-205 Categories: , , Brand: Part Number: 2500542855

Description

Technical Specifications  Technical Specifications Push in terminal Nominal current 24 A Number of clamp positions 5 Nominal voltage 450 V Nominal cross section 0.5 – 2.5 mm² Conductor cross section solid (solid, stranded) 0.5 – 2.5 mm² AWG-range 14 – 18 Transparent Yes Suitable for solid core Yes Suitable for flexible core No Suitable for multi-wire core No With operation lever No · Technical Data Sheet – Click to Download
