Adaptaflex Connector Type B Swivel Male IP54 M20 Brass Nickel Plated IP54 [Pack=10]

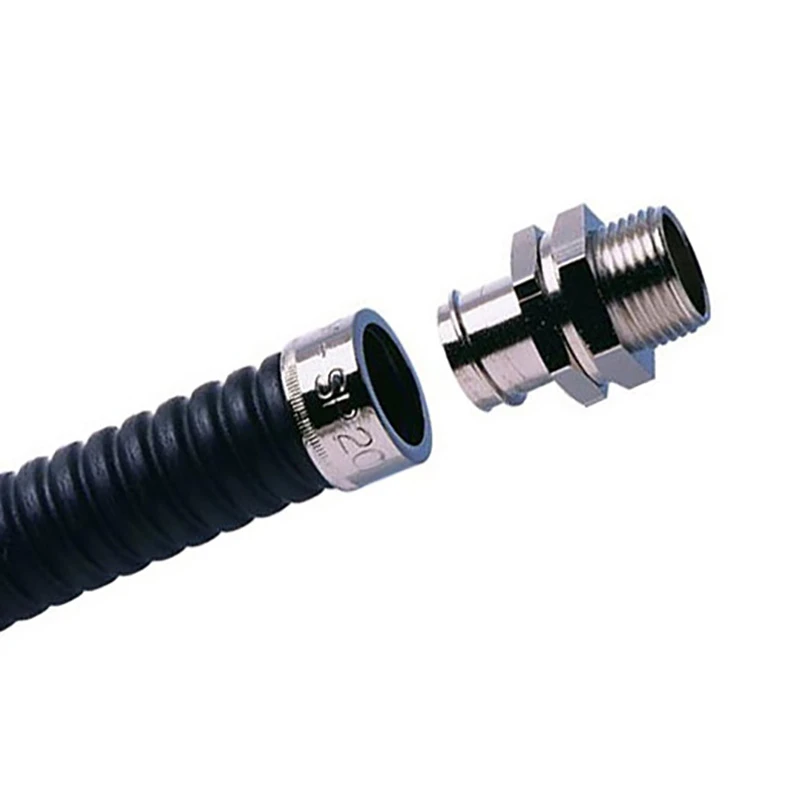

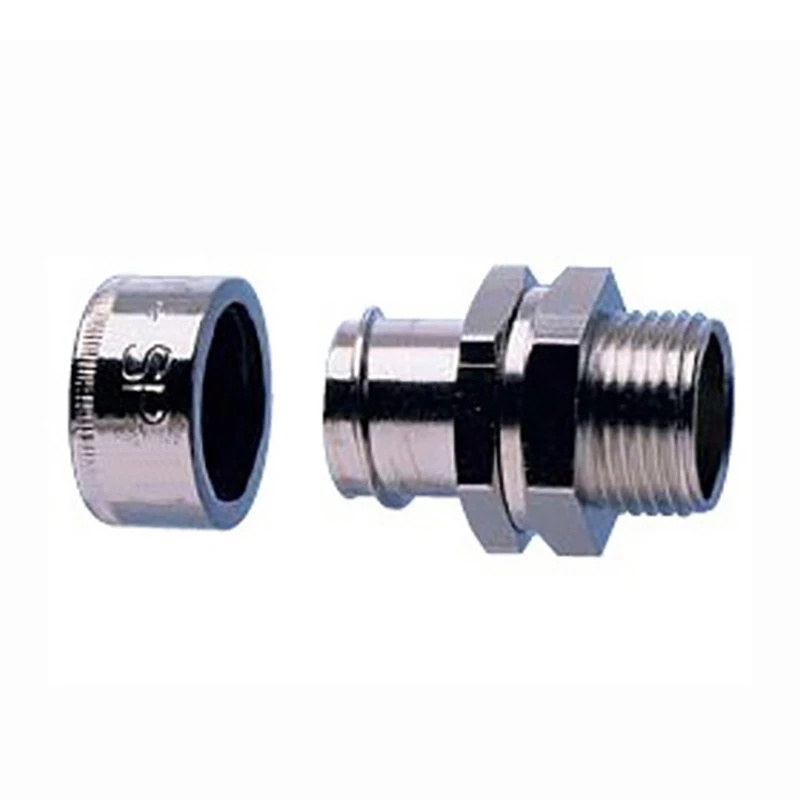

SP20/M20/B is a Type-B Straight Fitting Adaptor made of brass with nickel-plated finish. It is suitable for the insertion into knockouts using a locknut. It offers swivel external thread and also suitable for flexible cable protection systems. · · · Swivel external thread · · -45 to 250°C Dynamic operating temperature range · · -45 to 250°C Dynamic operating temperature range · · -50 to 350°C Static operating temperature range · · IP54 Rated
Description
Technical Specifications Technical Specifications Threaded bush Surface protection Nickel-plated Thread type Metric Material Metal Material qualifier Brass Colour Nickel Thread connection External thread Thread length 33.9 mm Inner diameter 0.5 mm Nominal thread size metric/PG 20 · Technical Data Sheet – Click to Download
