Consumer Unit 6+6 Kitbox 2 x RCCB 100A 2 x 63A White Metal 8 x MCBs
Consumer Unit 6+6 Kitbox 2 x RCCB 100A 2 x 63A White Metal 8 x MCBs

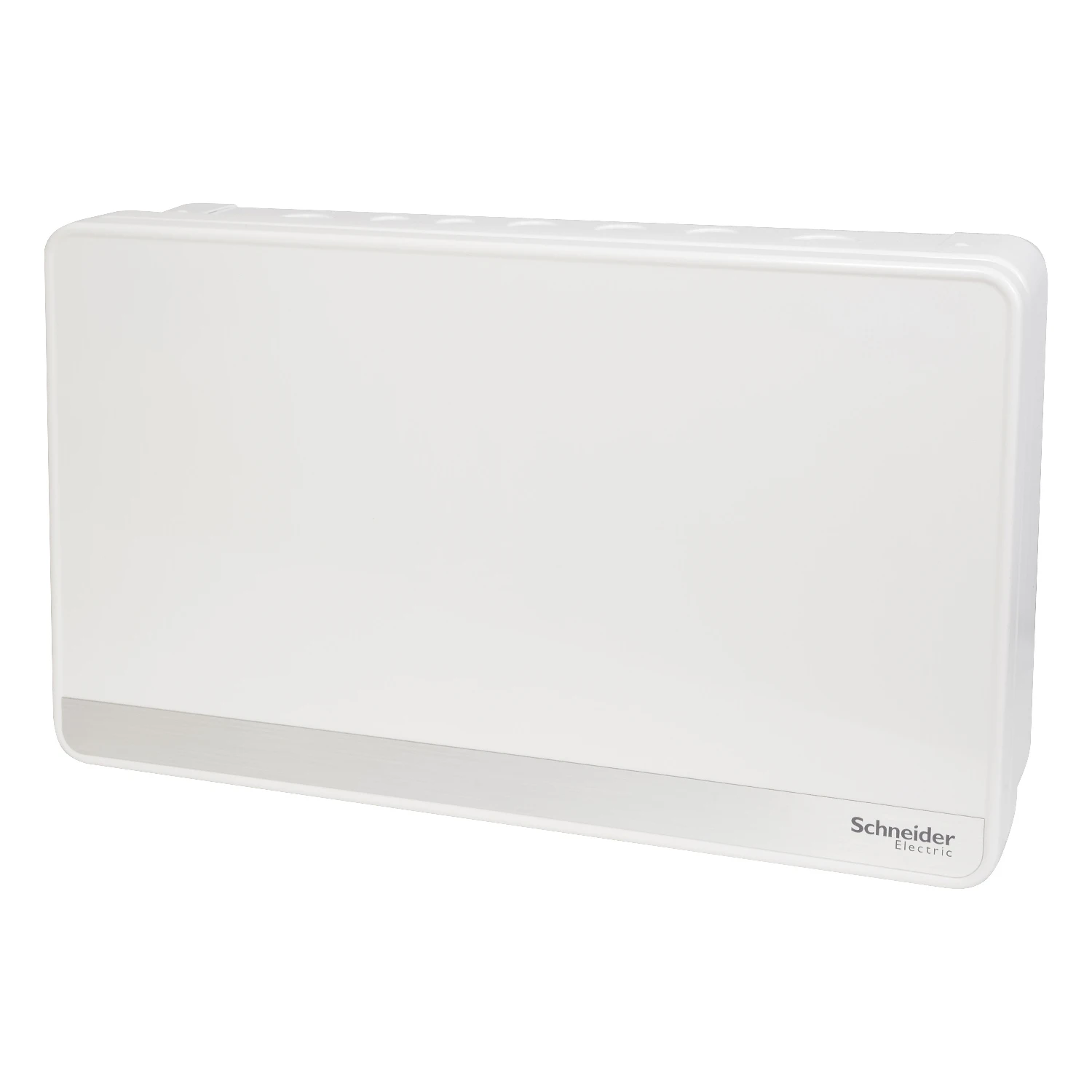

Consumer Unit 6+6 Kitbox 2 x RCCB 100A 2 x 63A White Metal 8 x MCBs - Image 2
Consumer Unit 6+6 Kitbox 2 x RCCB 100A 2 x 63A White Metal 8 x MCBs - Image 3

Consumer Unit 6+6 Kitbox 2 x RCCB 100A 2 x 63A White Metal 8 x MCBs

£187.42 Incl. VAT

The Schneider Electric EZ9ER6R6MRE Easy9+ All Metal 6 + 6 Way Pre-Populated Twin RCD Split Load Consumer Unit With 3x6A, 1x16A, 3x32A & 1x40A MCBs · · · Split load configuration option, ensures mainstream applications can be catered for with a single consumer unit · · 100A Main Switch Disconnector · · Rigid metal DIN rail to avoid flexing and raised for cabling flexibility · · Earth and neutral blocks ftted as standard · · Multiple cable entry points and knock out slots · · Secure raised Busbar shield · · Earthed front cover · · Reversible door · · IP3X · · BSEN61439 -3 Compliant

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EZ9ER6R6MRE Category: Brand: Part Number: 2500829771

Description

Technical Specifications  Technical Specifications Small distribution board equipped Width 465 mm Height 277 mm Depth 120 mm Width in number of modular spacings 12 Number of poles main switch 2 Number of earth leakage switches 300 mA – Main switch rated current 100 A Number of earth leakage switches 30 mA 2 Number of earth leakage circuit breakers 2 Number of groups behind earth leakage switch – With transparent cover No Lockable Yes Built-in depth – – – mm Total number of groups – Number of phases 1 Number of light groups – Number of direct groups – Extension possible No With socket outlet No Over voltage-/surge protection No Cooker group suitable as power current group No With bell transformer No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2208262
