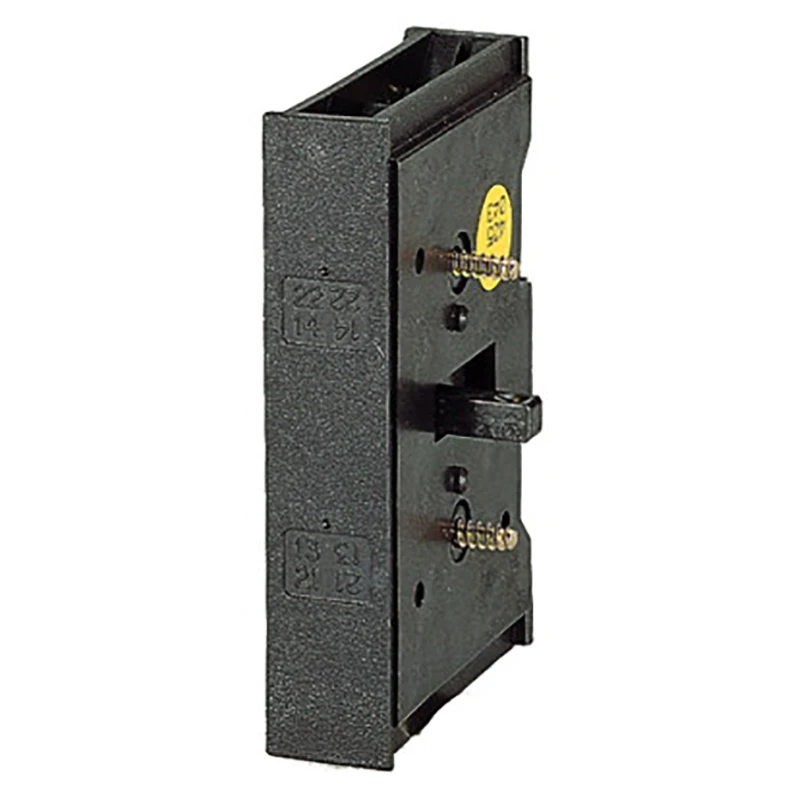

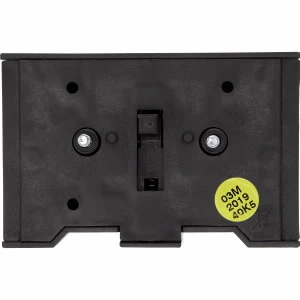

Eaton Contact Auxiliary 1 Make 1 Break
Auxiliary contact, Product range: Accessories, Part group reference: P1, P3, Late-break switching-on behavior, early-make switching-off behavior, The N/O is always connected as a load-shedding contact., For left and/or right side mounting, Contacts N/O = Normally open: 1 N/O, Contacts N/C = Normally closed: 1 NC, For use with: P1-…/Z, …/V, …/I2, …/IVS, P3-63/Z, …/V, …/I4, …/IVS, P3-100/Z, …/V, …/I5, …/IVS · · · Mounting Type: Side · · Normal State Configuration: 1NO / 1NC · · Padlockable handles, availabe in red/yellow, black or grey · · Interlocked cover/door in ON position · · IP65 environmental protection
Description
Technical Specifications Technical Specifications Auxiliary contact block Mounting method Side mounting Model Clip-on Type of electric connection Screw connection Lamp cap/base None Number of contacts as change-over contact 0 Number of contacts as normally open contact 1 Rated operation current Ie at AC-15, 230 V 6 A Number of fault-signal switches 0 Number of contacts as normally closed contact 1 · Technical Data Sheet – Click to Download
