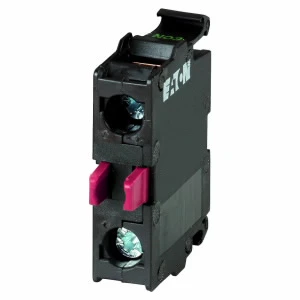

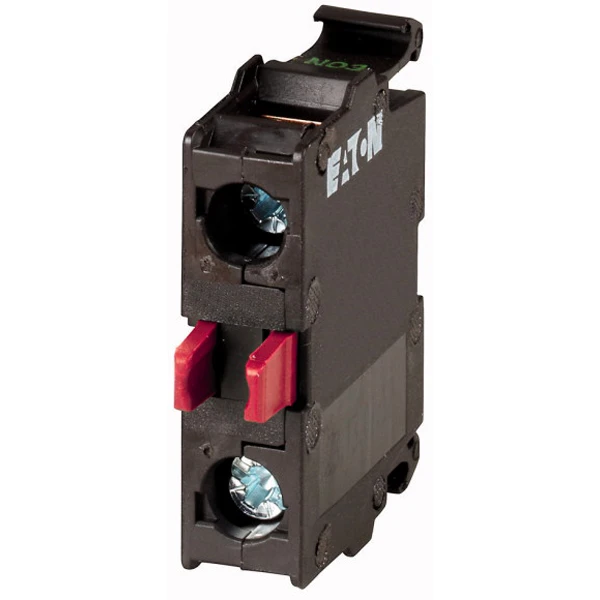

Contact Base Fixing Screw Terminals

£5.98 Incl. VAT

Contact element, Connection technique: Screw terminals, Fixing: Base fixing, Contacts N/C = Normally closed: 1 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.8, Maximum travel: mm 5.7, Minimum force for positive opening: N 15, Degree of Protection: IP20, Connection to SmartWire-DT: no, Connection type: Single contact, Standards: IEC 60947-5-1 · · · Connection Type: Screw Terminal · · Contact Configuration: 1NC · · Height: 37.2mm · · Mounting Type: Base · · Number of Contacts: 1 Contacts · · Width: 30mm · · Depth: 45.3mm · · Normal State Configuration: 1NC

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: M22-KC01 Categories: , , Brand: Part Number: 2500093140

Description

Technical Specifications  Technical Specifications Auxiliary contact block Mounting method Floor fastening Lamp cap/base None Model Clip-on Type of electric connection Screw connection Number of fault-signal switches 0 Rated operation current Ie at AC-15, 230 V 6 A Number of contacts as normally closed contact 1 Number of contacts as change-over contact 0 Number of contacts as normally open contact 0 · Technical Data Sheet – Click to Download
