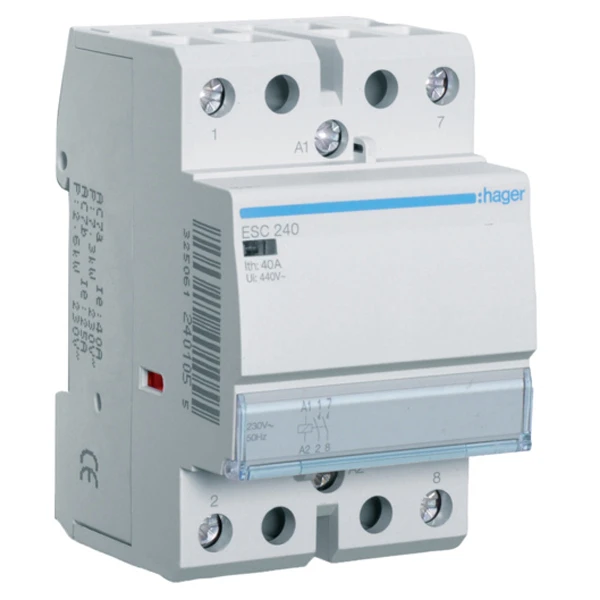

Product image supplied by the manufacturer
Circuit Breakers & Devices

Hager Contactor 2 Normally Open 40A 230V

Brand: HagerProduct code: ESC240Go Magpie Ref: 5060062354587

Hager Standard Contactor with screw connection. The contactor ratings are for AC1 loads only – if the load differs from AC1 the contactor may need de-rating. The choice of contactor depends upon a number of parameters that is nature of the supply, power it is switching, characteristics of the load, control voltage required and the number of operations. · · · 40 Amp · · 2 Normally Open Contacts · · 230V 50Hz · · 3 Module · · The use of LZ060 (heat dissipation inserts) between all contactors installed or between contactors and adjacent devices is required. · · Contactors will accept auxiliary, ESC080 contact · · Connection Capacity: Rigid conductor 10mm, Flexible conductor 6mm

£161.47inc VAT£134.56 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Voltage type for actuating AC Type of electrical connection of main circuit Screw connection Number of main contacts as normally open contact 2 Number of auxiliary contacts as normally open contact 0 Rated operation power at AC-3, 400 V 7.8 kW Number of auxiliary contacts as normally closed contact 0 Rated operation current Ie at AC-1, 400 V 40 A Rated operation current Ie at AC-3, 400 V 40 A Number of normally closed contacts as main contact 0 Rated control supply voltage at DC 0 – 0 V Rated control supply voltage at AC 60 Hz 0 – 0 V Rated control supply voltage at AC 50 Hz 230 – 230 V Modular version Yes · Technical Data Sheet – Click to Download
