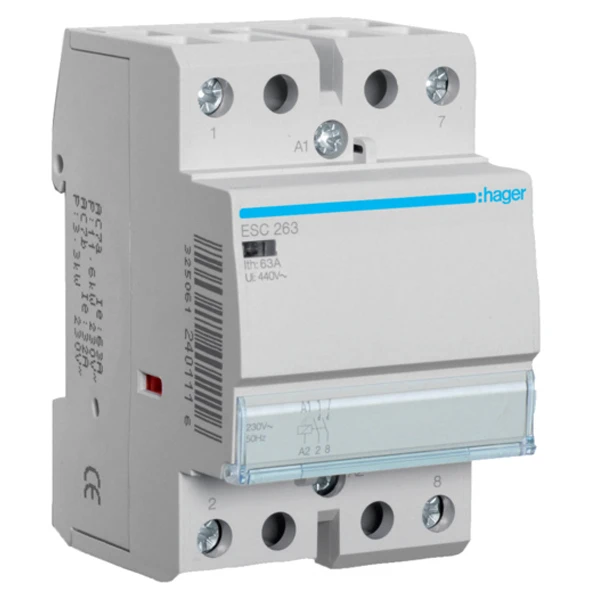

Contactor 2 Normally Open 63A 230V
Contactor 2 Normally Open 63A 230V
Contactor 2 Normally Open 63A 230V - Image 2

Contactor 2 Normally Open 63A 230V

£225.47 Incl. VAT

Hager Standard Contactor with screw connection. The contactor ratings are for AC1 loads only – if the load differs from AC1 the contactor may need de-rating. The choice of contactor depends upon a number of parameters that is nature of the supply, power it is switching, characteristics of the load, control voltage required and the number of operations. · · · Contactor ratings are for AC1 loads only · · Screw connection · · European directive WEEE

12 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ESC263 Categories: , , Brand: Part Number: 2500477221

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Type of electrical connection of main circuit Screw connection Voltage type for actuating AC Rated operation current Ie at AC-1, 400 V 63 A Rated operation current Ie at AC-3, 400 V 63 A Number of normally closed contacts as main contact 0 Number of auxiliary contacts as normally closed contact 0 Rated operation power at AC-3, 400 V 10 kW Number of auxiliary contacts as normally open contact 0 Number of main contacts as normally open contact 2 Rated control supply voltage at AC 60 Hz 0 – 0 V Rated control supply voltage at DC 0 – 0 V Rated control supply voltage at AC 50 Hz 230 – 230 V Modular version Yes · Technical Data Sheet – Click to Download
