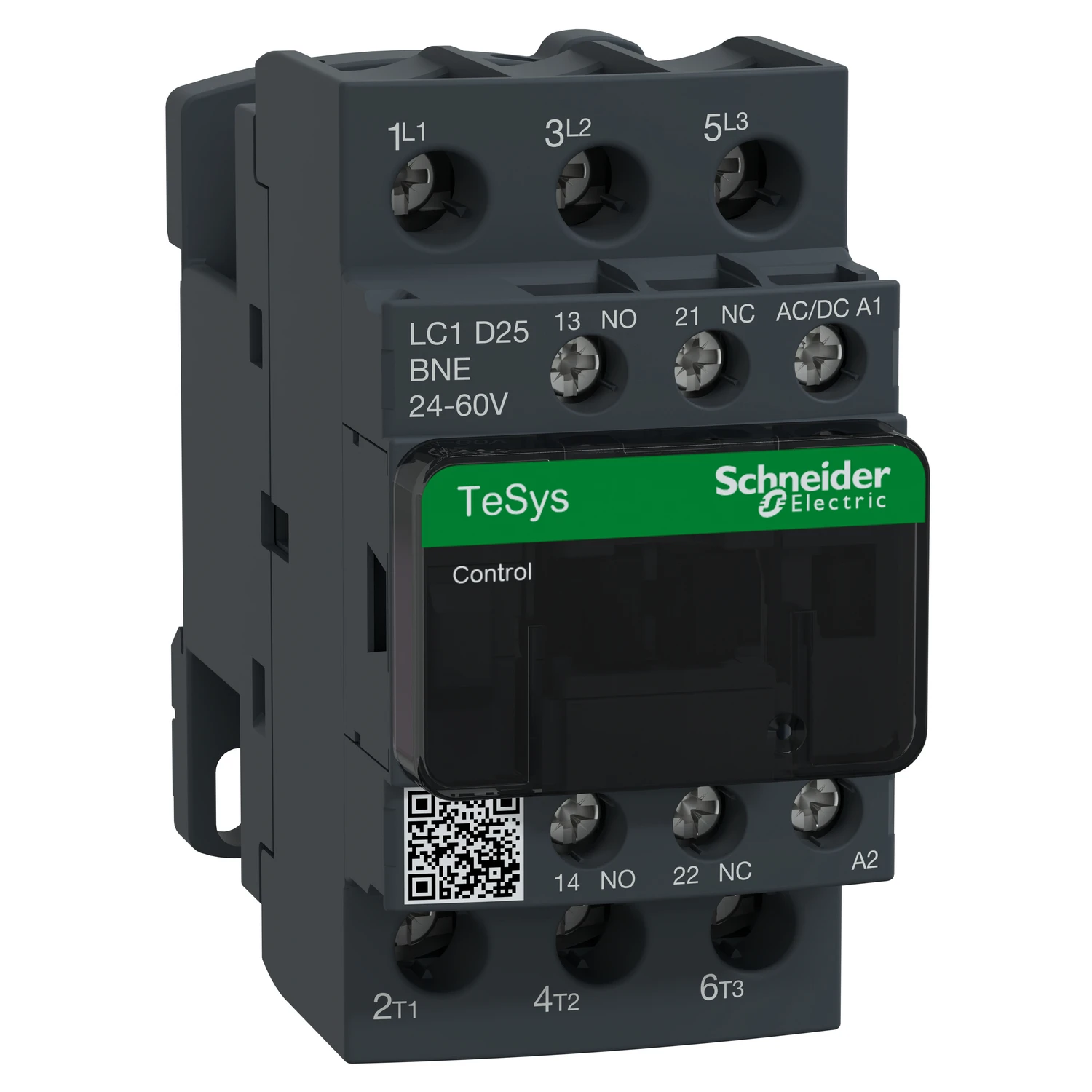

Contactor 25A 3P AC3 24-60VACDC Coil
£162.47 Incl. VAT
CONT 25A 3P AC3 24-60VACDC COIL · · · TeSys D contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3 (11kW@400V). · · Cutout Size: 22.5mm · · It provides a low consumption 24-60V AC/DC coil with electronic control for direct PLC output connection, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. · · For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. · · Compact (45mm width), DIN-rail mounting or screw fixing.
Out of stock
Description
Technical Specifications Technical Specifications Power contactor, AC switching Number of main contacts as normally open contact 3.00 Rated operation power at AC-3, 400 V 11.00 kW Number of auxiliary contacts as normally open contact 1.00 Number of normally closed contacts as main contact 0.00 Rated operation power NEMA – kW Rated operation current Ie at AC-4, 400 V 12.00 A Rated operation current Ie at AC-1, 400 V 40.00 A Rated operation power at AC-4, 400 V 5.50 kW Rated operation current Ie at AC-3, 400 V 25.00 A Number of auxiliary contacts as normally closed contact 1.00 Rated control supply voltage at AC 60 Hz 24.00 – 60.00 V Rated control supply voltage at AC 50 Hz 24.00 – 60.00 V Modular version No Rated control supply voltage at DC 24.00 – 60.00 V · Technical Data Sheet – Click to Download
