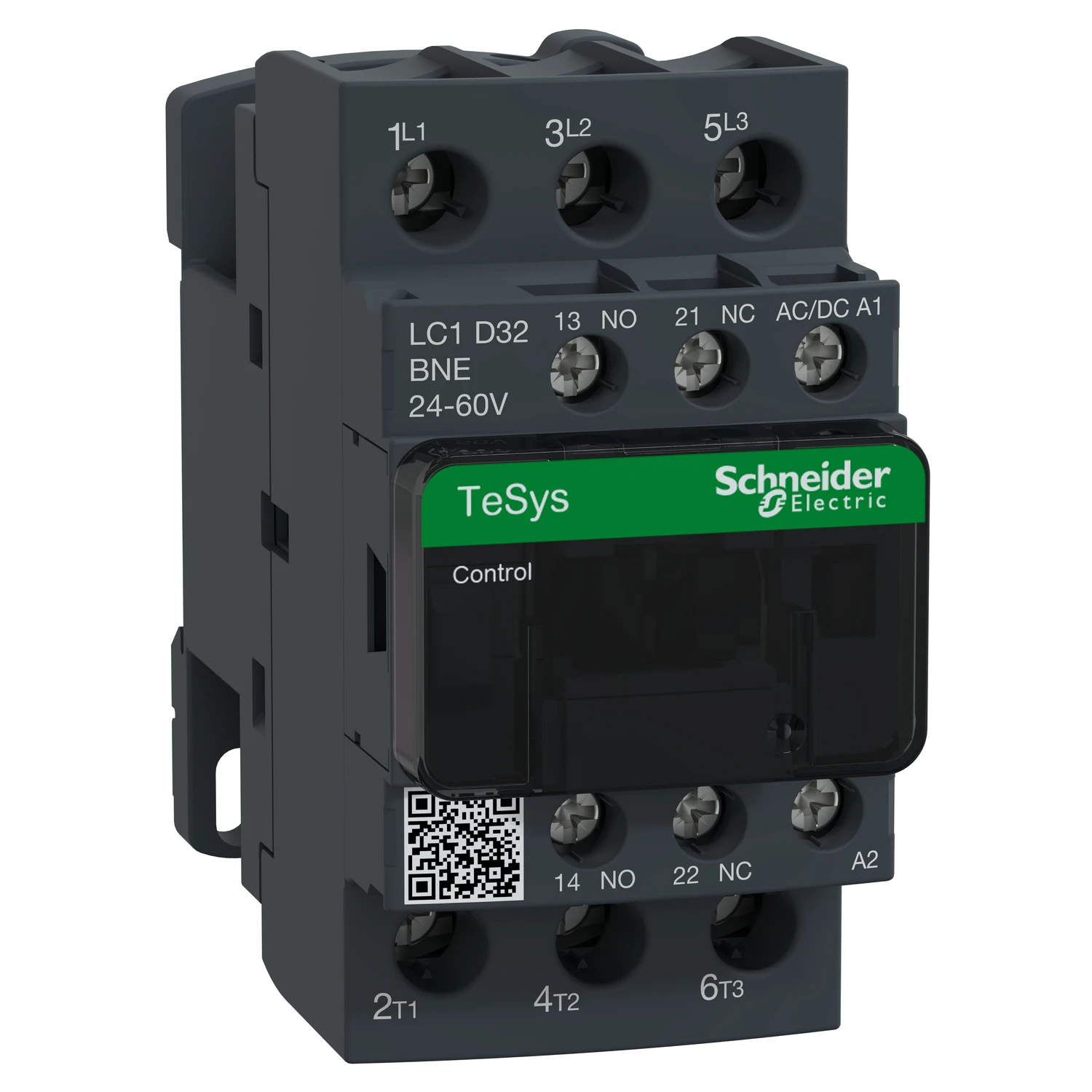

Contactor 32A 3P AC3 24-60VACDC Coil
Contactor 32A 3P AC3 24-60VACDC Coil
Contactor 32A 3P AC3 24-60VACDC Coil - Image 2
Contactor 32A 3P AC3 24-60VACDC Coil - Image 3

Contactor 32A 3P AC3 24-60VACDC Coil

£192.49 Incl. VAT

CONT 32A 3P AC3 24-60VACDC COIL · · · TeSys D contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3 (15kW@400V). · · Mounting Type: Side of switch · · It provides a low consumption 24-60V AC/DC coil with electronic control for direct PLC output connection, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. · · For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. · · Compact (45mm width), DIN-rail mounting or screw fixing. · · Depth: 42mm · · Normal State Configuration: 1NC

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LC1D32BNE Categories: , , Brand: Part Number: 2501231813

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Number of normally closed contacts as main contact 0.00 Rated operation power at AC-3, 400 V 15.00 kW Number of main contacts as normally open contact 3.00 Rated operation current Ie at AC-1, 400 V 50.00 A Number of auxiliary contacts as normally open contact 1.00 Rated operation current Ie at AC-3, 400 V 32.00 A Number of auxiliary contacts as normally closed contact 1.00 Rated operation power at AC-4, 400 V 7.50 kW Rated operation current Ie at AC-4, 400 V 18.00 A Rated control supply voltage at AC 50 Hz 24.00 – 60.00 V Rated control supply voltage at AC 60 Hz 24.00 – 60.00 V Rated control supply voltage at DC 24.00 – 60.00 V Modular version No · Technical Data Sheet – Click to Download
