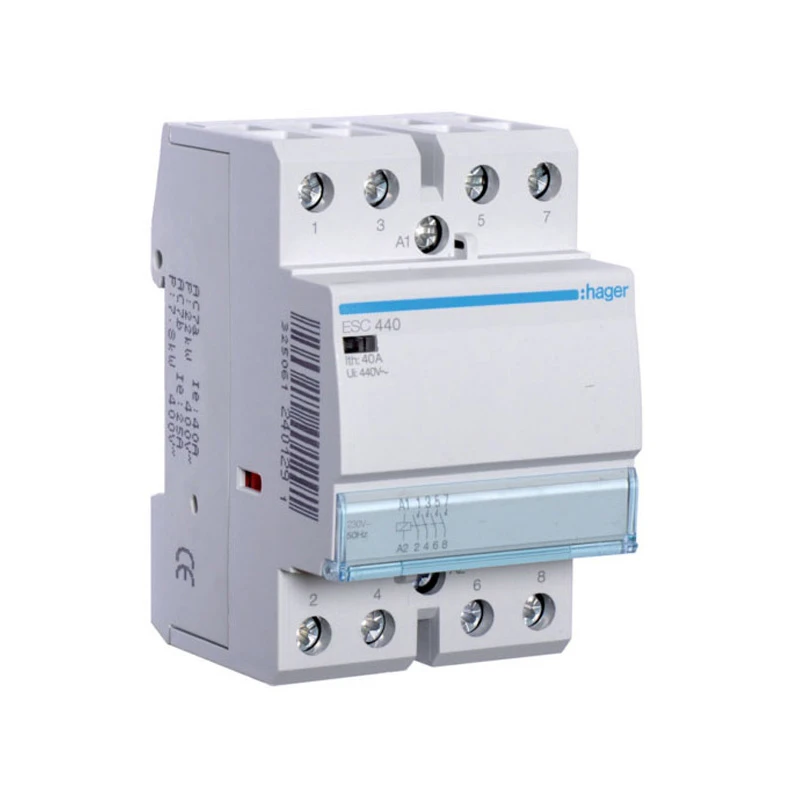

Contactor 4 Normally Open 40A 230V
Contactor 4 Normally Open 40A 230V
Contactor 4 Normally Open 40A 230V - Image 2

Contactor 4 Normally Open 40A 230V

£188.45 Incl. VAT

Hager Standard Contactor with screw connection. The contactor ratings are for AC1 loads only – if the load differs from AC1 the contactor may need de-rating. The choice of contactor depends upon a number of parameters that is nature of the supply, power it is switching, characteristics of the load, control voltage required and the number of operations. · · · 40 Amp · · 4 Normally Open Contacts · · 230V 50Hz · · 3 Module · · The use of LZ060 (heat dissipation inserts) between all contactors installed or between contactors and adjacent devices is required. · · Contactors will accept auxiliary, ESC080 contact · · Connection Capacity: Rigid conductor 10mm, Flexible conductor 6mm · · IP20/40 Degree of protection · · Ambient temperature: -25°C to 70°C · · RoHS compliant

180 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ESC440 Categories: , , Brand: Part Number: 2500477223

Description

Technical Specifications  Technical Specifications Contactor for distribution board installation Voltage type (operating voltage) AC Voltage type (excitation voltage) AC Number of contacts as normally open contact 4 Max. load fluorescent lamp 1900 VA Max. incandescent lamp load 4000 W Rated operation current 40 A Rated operating voltage 400 – 400 V Rated excitation voltage 230 – 230 V · Technical Data Sheet – Click to Download
