Contactor 40A 3P AC3 24VDC Coil
Contactor 40A 3P AC3 24VDC Coil

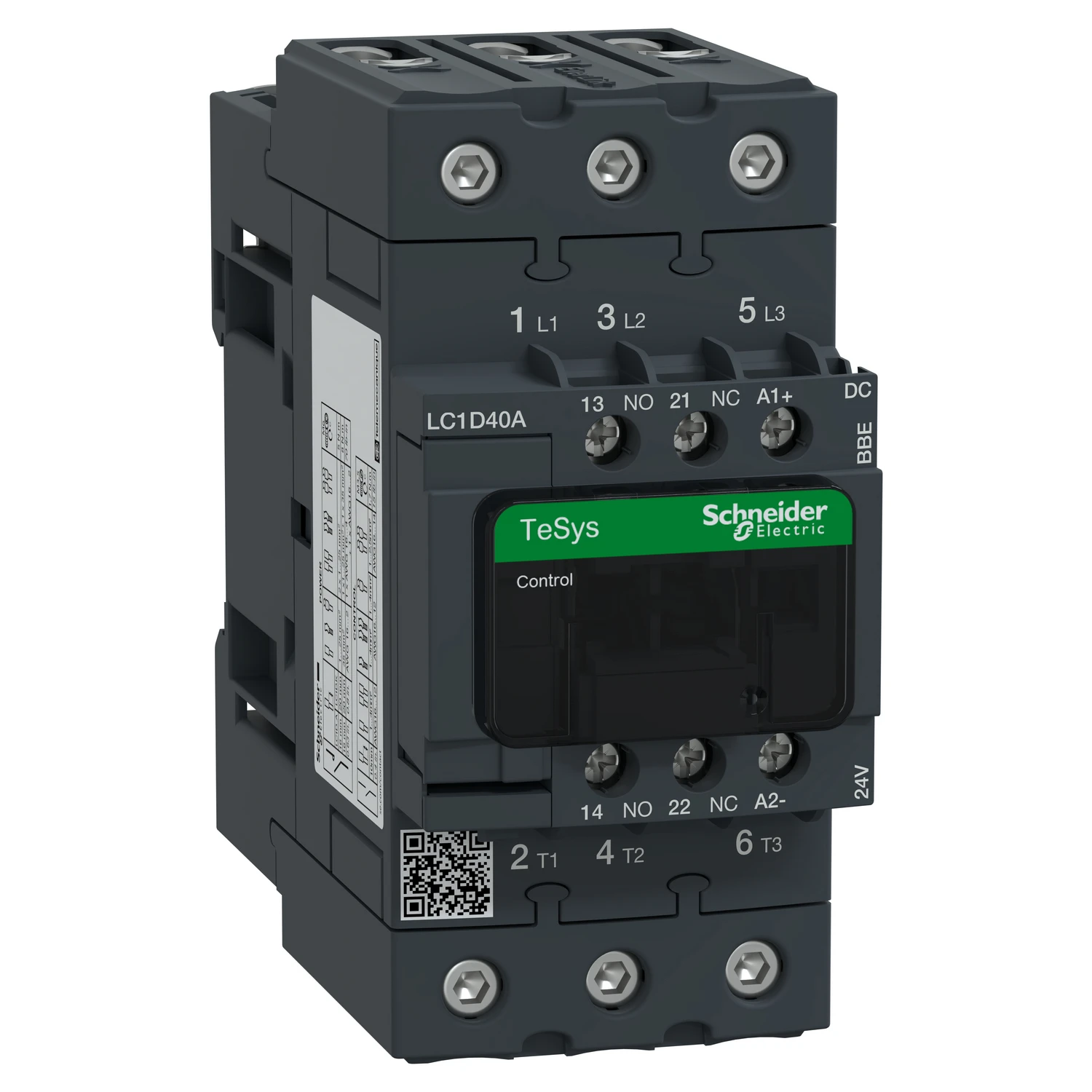

Contactor 40A 3P AC3 24VDC Coil - Image 2
Contactor 40A 3P AC3 24VDC Coil - Image 3

Contactor 40A 3P AC3 24VDC Coil

£222.53 Incl. VAT

Cont 40A 3P AC3 24VDC coil · · · TeSys D contactor, 3 poles (3NO), for motor control applications up to 40A/690V AC-3 (18.5kW@400V). · · Degree of Protection:Front IP66 Front IP67 Front IP69K Terminals IP20 · · It provides a low consumption 24V DC coil with electronic control, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. · · For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. · · Compact (55mm width), DIN-rail mounting or screw fixing. · · Rated Operational Voltage:24 V AC/DC · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LC1D40ABBE Categories: , , Brand: Part Number: 2501231820

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Rated operation power at AC-3, 400 V 18.5 kW Number of main contacts as normally open contact 3 Number of normally closed contacts as main contact 0 Rated operation current Ie at AC-4, 400 V 20 A Number of auxiliary contacts as normally open contact 1 Rated operation power at AC-4, 400 V 9 kW Rated operation current Ie at AC-1, 400 V 60 A Rated operation current Ie at AC-3, 400 V 40 A Number of auxiliary contacts as normally closed contact 1 Rated operation power NEMA – kW Rated control supply voltage at AC 50 Hz – – – V Rated control supply voltage at AC 60 Hz – – – V Rated control supply voltage at DC 24 – 24 V Modular version No · Technical Data Sheet – Click to Download
