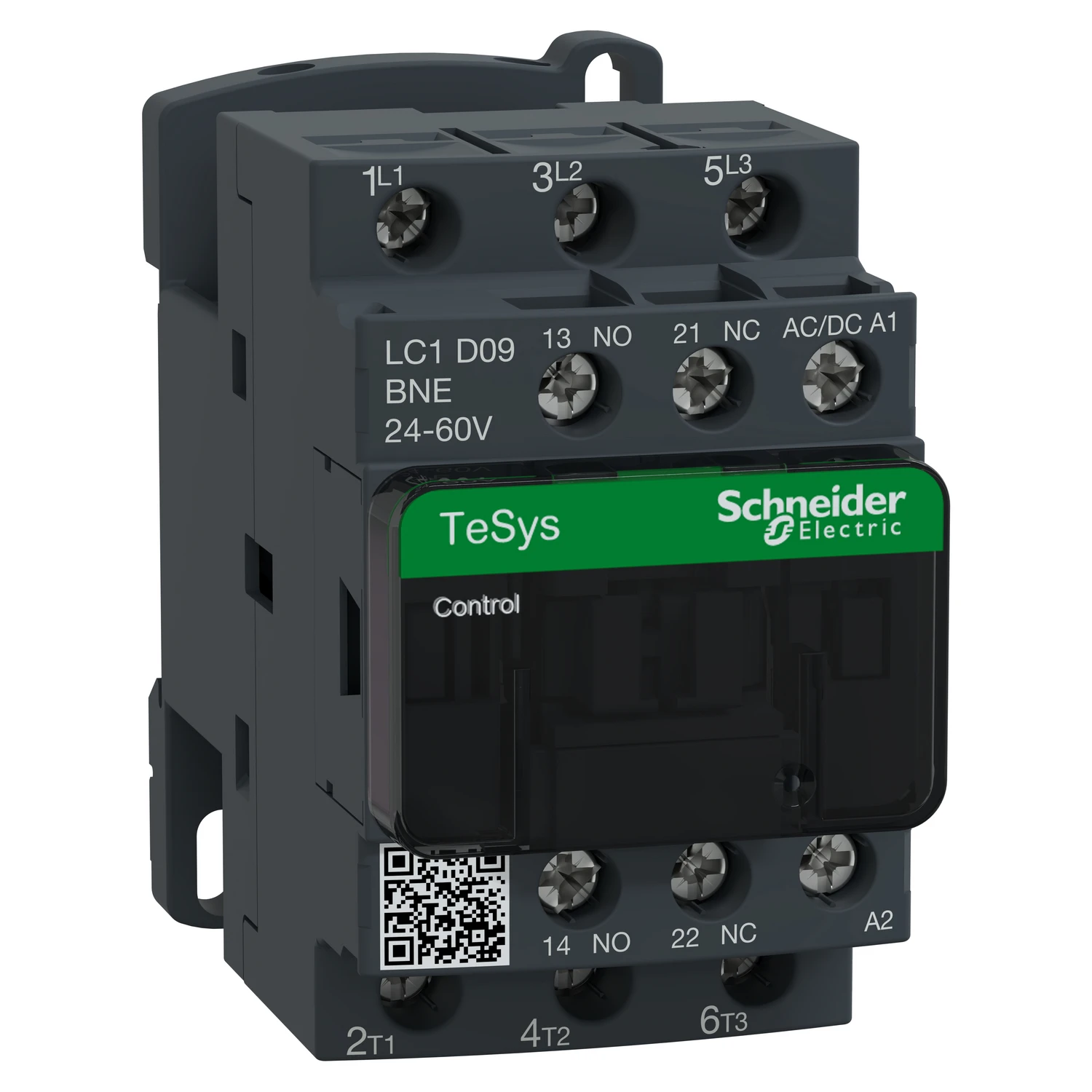

Schneider Electric Contactor 9A 3P AC3 24-60V ACDC Coil
Schneider Electric Contactor 9A 3P AC3 24-60V ACDC Coil
Schneider Electric Contactor 9A 3P AC3 24-60V ACDC Coil - Image 2
Schneider Electric Contactor 9A 3P AC3 24-60V ACDC Coil - Image 3

Schneider Electric Contactor 9A 3P AC3 24-60V ACDC Coil

£74.45 Incl. VAT

CONT 9A 3P AC3 24-60VACDC COIL · · · Deca green delivers a consistent low consumption range of contactors from 9 A to 80 A, covering control voltage from 24 to 250 V, with same coils for AC and DC. · · It provides a low consumption 24-60V AC/DC coil with electronic control for direct PLC output connection, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. · · For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. · · Compact (45mm width), DIN-rail mounting or screw fixing.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LC1D09BNE Categories: , , , , , Brand: Product Code: 2501231800

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Number of normally closed contacts as main contact 0.00 Rated operation power at AC-3, 400 V 4.00 kW Number of main contacts as normally open contact 3.00 Number of auxiliary contacts as normally open contact 1.00 Number of auxiliary contacts as normally closed contact 1.00 Rated operation power NEMA – kW Rated operation current Ie at AC-4, 400 V 6.00 A Rated operation power at AC-4, 400 V 2.20 kW Rated operation current Ie at AC-1, 400 V 25.00 A Rated operation current Ie at AC-3, 400 V 9.00 A Rated control supply voltage at AC 50 Hz 24.00 – 60.00 V Rated control supply voltage at AC 60 Hz 24.00 – 60.00 V Modular version No Rated control supply voltage at DC 24.00 – 60.00 V · Technical Data Sheet – Click to Download
