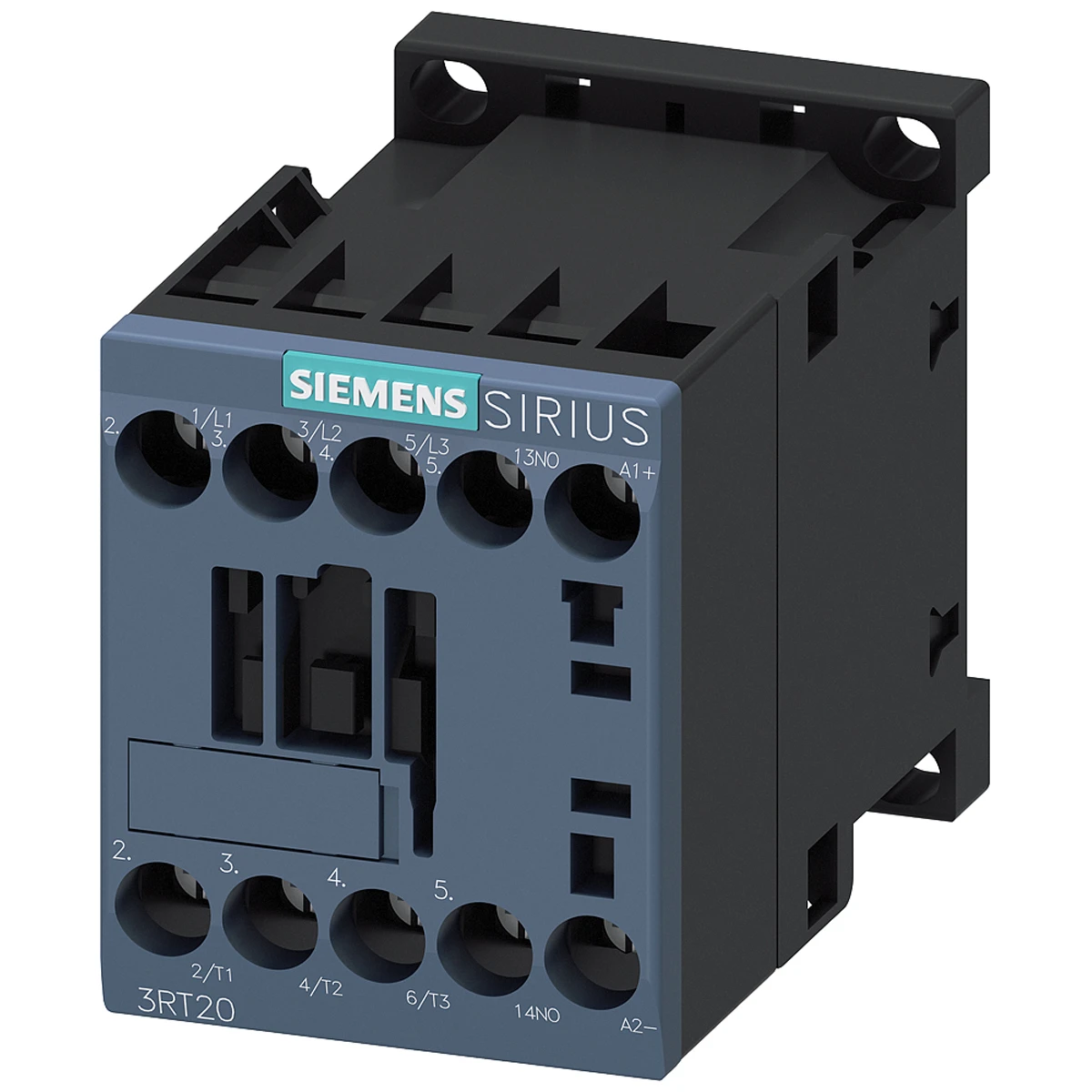

Siemens Contactor Ac-3 TP 1No 5.5Kw 24V Dc Screw Terminal
Siemens Contactor Ac-3 TP 1No 5.5Kw 24V Dc Screw Terminal
Siemens Contactor Ac-3 TP 1No 5.5Kw 24V Dc Screw Terminal - Image 2
Siemens Contactor Ac-3 TP 1No 5.5Kw 24V Dc Screw Terminal - Image 3

Siemens Contactor Ac-3 TP 1No 5.5Kw 24V Dc Screw Terminal

£55.07 Incl. VAT

Siemens size S00 power contactor with 1NO auxiliary contact. Contactor can be rotated +/-180° and be tilted forward/backward +/- 22.5° when on vertical mounting surface. · · · Control supply voltage: 24V AC · · Operating current: 12A (at 400V rated value) · · Operating power: 5.5kW (at 400V rated value) · · Screw clamp terminals: 2x (0.5 – 1.5mm²), 2 x (0.75 – 2.5mm²), 2 x 4mm² · · Mounting type: Screw/Snap-on mounting onto 35mm standard rail · · Operating voltage: 690V AC · · Opening/closing delay: 7-13ms/ 30-100ms · · Mechanical service life: 30000000 cycles · · Ambient operating temperature: -25°C to 60°C · · IP20 Degree of protection

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3RT2017-1BB41 Categories: , , , Brand: Product Code: 2500621993

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Type of electrical connection of main circuit Screw connection Voltage type for actuating DC Rated operation power NEMA 5.51624 kW Rated operation current Ie at AC-4, 400 V 8.5 A Number of main contacts as normally open contact 3 Rated operation power at AC-3, 400 V 5.5 kW Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as normally open contact 1 Number of normally closed contacts as main contact 0 Rated operation power at AC-4, 400 V 2 kW Rated operation current Ie at AC-3, 400 V 12 A Rated operation current Ie at AC-1, 400 V 22 A Rated control supply voltage at AC 50 Hz 0 – 0 V Rated control supply voltage at AC 60 Hz 0 – 0 V Rated control supply voltage at DC 24 – 24 V Modular version Yes · Technical Data Sheet – Click to Download
