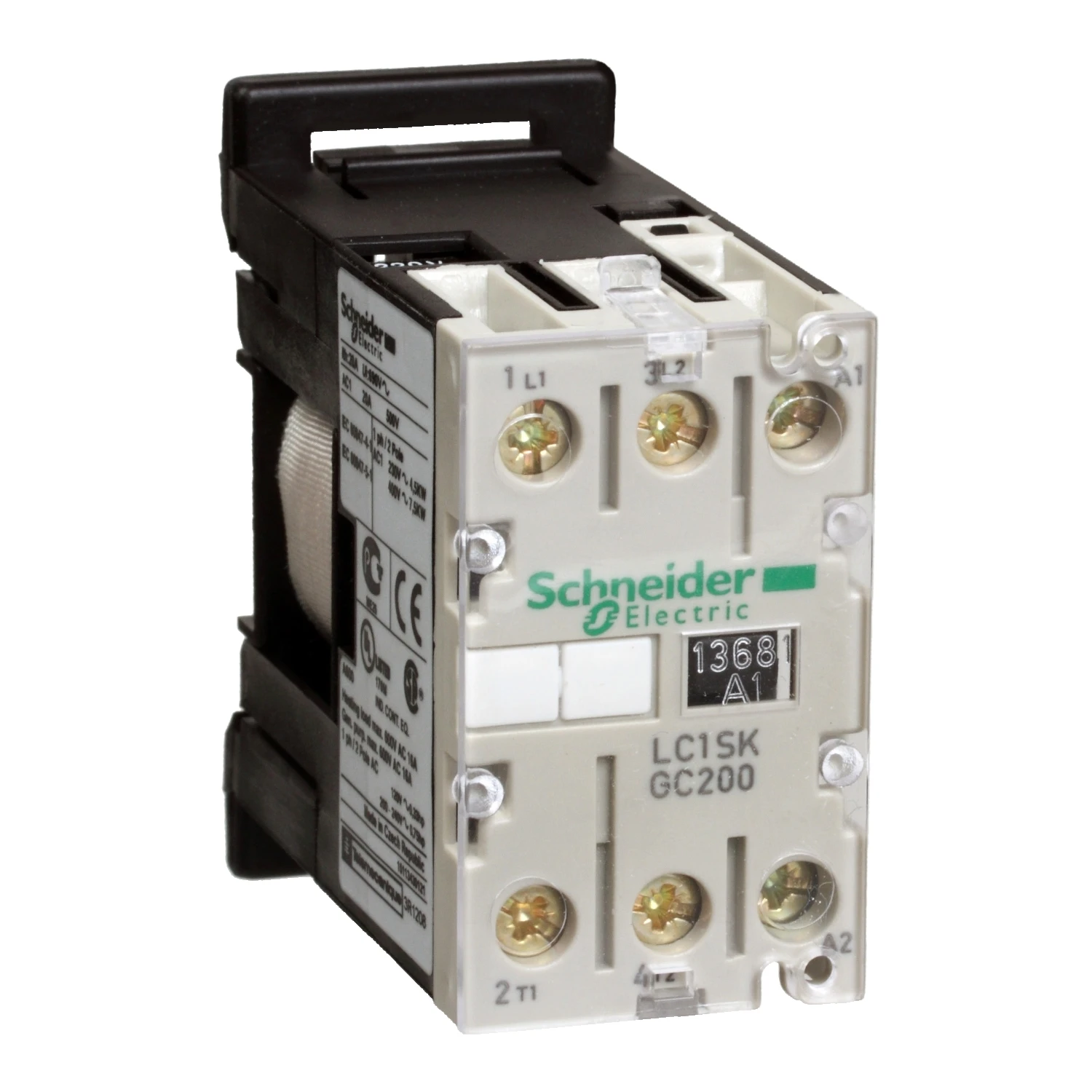

Schneider Electric Contactor Mini Double Pole 240V 50/60Hz 27mm

TeSys SKGC mini-contactor, 2 poles (2NO), for non-inductive load applications up to 20A/690V AC-1, and for 1-phase motor control applications up to 5A/690V AC-3. It provides a 240V 50/60Hz AC control circuit, a transparent protective cover to prevent front face access, connection by screw terminals. For operating rates until 1200 cycles/hour and ambient temperature -20/+50°C, it procures high reliability and durability. For use in modular panels, compact (27mm width), clipping on 35mm DIN rail. Location available to insert a suppressor module LA4SK (to be ordered separately). Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh). · · · TeSys SKGC mini-contactor, 2 poles (2NO), for non-inductive load applications up to 20A/690V AC-1, · · and for 1-phase motor control applications up to 5A/690V AC-3. · · It provides a 240V 50/60Hz AC control circuit, a transparent protective cover to prevent front face access, connection by screw terminals. · · For operating rates until 1200 cycles/hour and ambient temperature -20/+50°C, it procures high reliability and durability. · · For use in modular panels, compact (27mm width), clipping on 35mm DIN rail. · · Location available to insert a suppressor module LA4SK (to be ordered separately). · · Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh). · · Depth: 55.5mm · · Frequency: 50 – 60Hz · · Voltage: 240V
