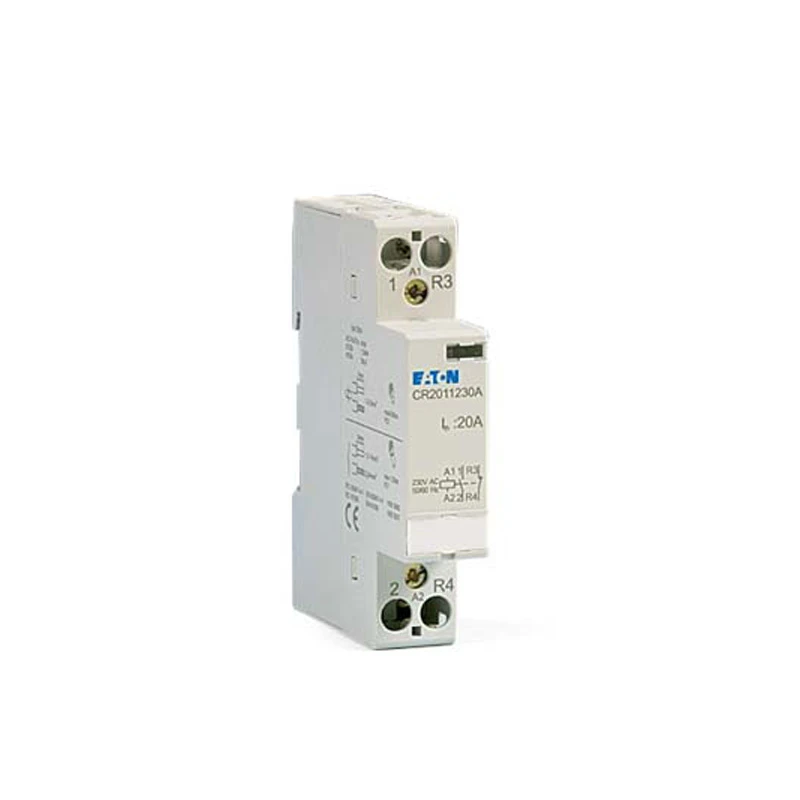

Product image supplied by the manufacturer
Contactors

Eaton Contactor Modular 2 Normally Open 20A 230V AC

Brand: EatonProduct code: CR2020230AGo Magpie Ref: 5060062362165

Installation contactor, rated control circuit voltage 230V AC, rated operational current at AC1 20A, function: 2NO, details according to IEC/EN 61095, IEC/EN 60947-4-1, standard front dimension 45 mm, mounting width 1 MU, top-hat rail mounting · · · 2 NO Contacts · · 30 to +80 °C storage temperature range · · IEC 60947-4-1, IEC 61095 standard · · 230V · · 4 KW

£44.84inc VAT£37.37 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Contactor for distribution board installation Utilization category according to EN IEC 60947-4-1 AC-1 Degree of protection (IP rating) IP20 Voltage type (excitation voltage) AC Voltage type (operating voltage) AC Max. load fluorescent lamp (parallel compensated) 232 VA Rated operation current 20 A Number of contacts as normally open contact 2 Max. load fluorescent lamp (Duo circuit) 1160 VA Number of contacts as normally closed contact 0 Max. incandescent lamp load 1950 W Max. load fluorescent lamp 910 VA Recess depth 60 mm Width in number of modular spacings 1 Rated operating voltage 400 – 400 V Rated excitation voltage 195.5 – 253 V With day/night function No Slider for hand switch No Hum-free No Additional equipment possible Yes · Technical Data Sheet – Click to Download
